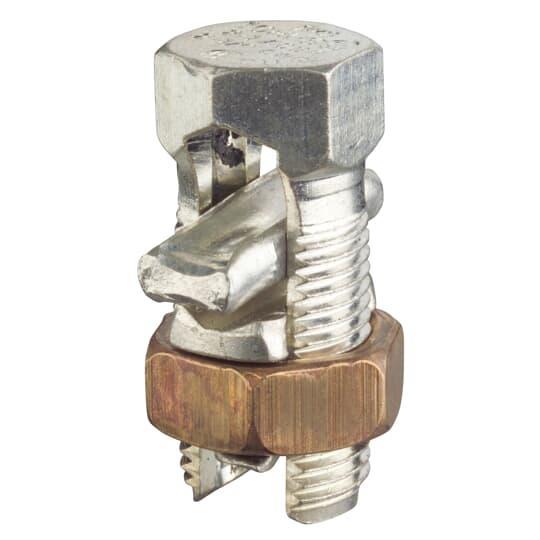

Blackburn® 2HPS
Blackburn® 2HPS Type HPS Split Bolt Connector With Spacer, 8 to 2 AWG ACSR/Solid Aluminum/Copper Conductor, 19/32 x 1-15/32 in, Copper Alloy
- Manufacturer Name: ABB
- MPN: 2HPS
- Brand Name: Blackburn®
- UPC: 783786200443
- FEPN: 2HPS TB
- Min Order Qty: 1
- Quantity Interval: 100
-
Inventory Availability
-
Retail Price:
Blackburn® Split Bolt Connector, Type HPS, ACSR/Solid Aluminum/Copper Conductor, 8 to 2 AWG Conductor, 19/32 x 1-15/32 in Bolt, 0.274 in Split, 25/32 in Hex Nut, Copper Alloy, Electro-Plated Tin, Metallic
| Color | : | Metallic |
| Finish | : | Electro-Plated Tin |
| Specifications | : | 0.274 in Split, 25/32 in Hex Nut |
| Type | : | Type HPS |
| Conductor Size | : | 8 to 2 AWG |
| Conductor Type | : | ACSR/Solid Aluminum/Copper |
| Bolt Size | : | 19/32 x 1-15/32 in |
| Material | : | Copper Alloy |
- Bolt and pressure bar of copper alloy, completely tin plated for corrosion resistance
- Contoured spacer of electrolytic copper
- Tin plated finish provides resistance to corrosion
- Blackburn® contax recommended when used on aluminum conductors
- 4-8 AWG for ACSR conductor range equal main and tap
- 8 AWG solid conductor range min tap with one max main
- 2 to 8 AWG solid conductor range for equal main and tap
- 100 Pieces/Pack
Specification Sheet
