Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

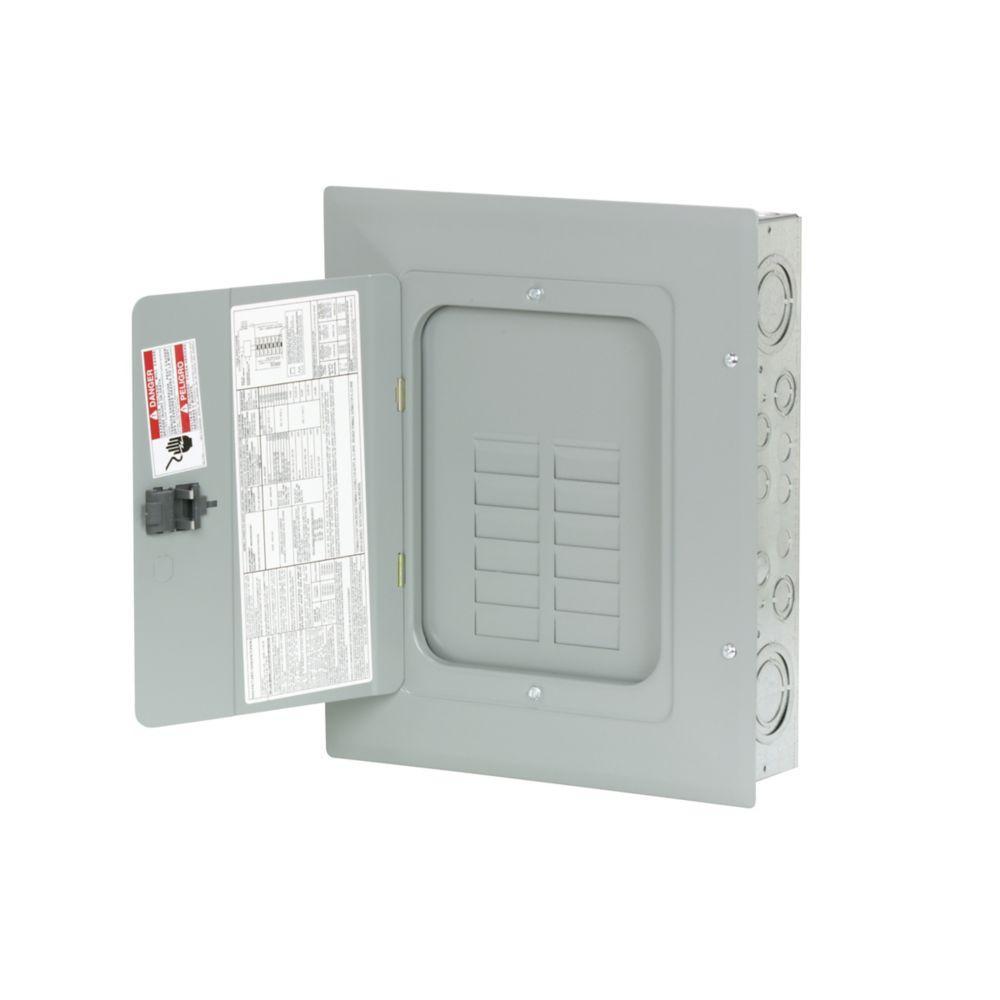

EATON Main Lug Loadcenter, 1-Phase, 120/240 VAC, 125 A, 24 Pole, 10 kA Interrupt, 24 Circuits, BR Breaker, 3-Wire Wiring Configuration, 12 Spaces, 6 to 2/0 AWG Wire, Combination Mount, NEMA 1, NEMA B1 Enclosure Box, Metal Housing, 3.88 in L x 14.31 in W x 16.75 in H
| Breaker Type | : | BR |
| Dimensions | : | 3.88 in L x 14.31 in W x 16.75 in H |
| Enclosure Box Size | : | NEMA B1 |
| Enclosure Type | : | NEMA 1 |
| Housing Material | : | Metal |
| Mounting Type | : | Combination |
| Number of Circuits | : | 24 |
| Number of Spaces | : | 12 |
| Type | : | 1-Phase |
| Wire Size | : | 6 to 2/0 AWG |
| Wiring Configuration | : | 3-Wire |
| Voltage Rating | : | 120/240 VAC |
| Amperage Rating | : | 125 A |
| Number of Poles | : | 24 |
| Interrupt Rating | : | 10 kA |
- No feed-through
- Aluminum bus material
- 1-phase
- Used with type BR 1 in breakers
- Has notch for BREQS125 hold down kit
- Combination cover style
- Suitable for use as service equipment when not more than six main disconnecting mains are provided and when not used as a lighting and appliance panelboard
- Insulated/bondable split neutral type
- 1 in maximum space
Specification Sheet
