Wiring Device-Kellems L1430C
Send Print
  1. pin-int

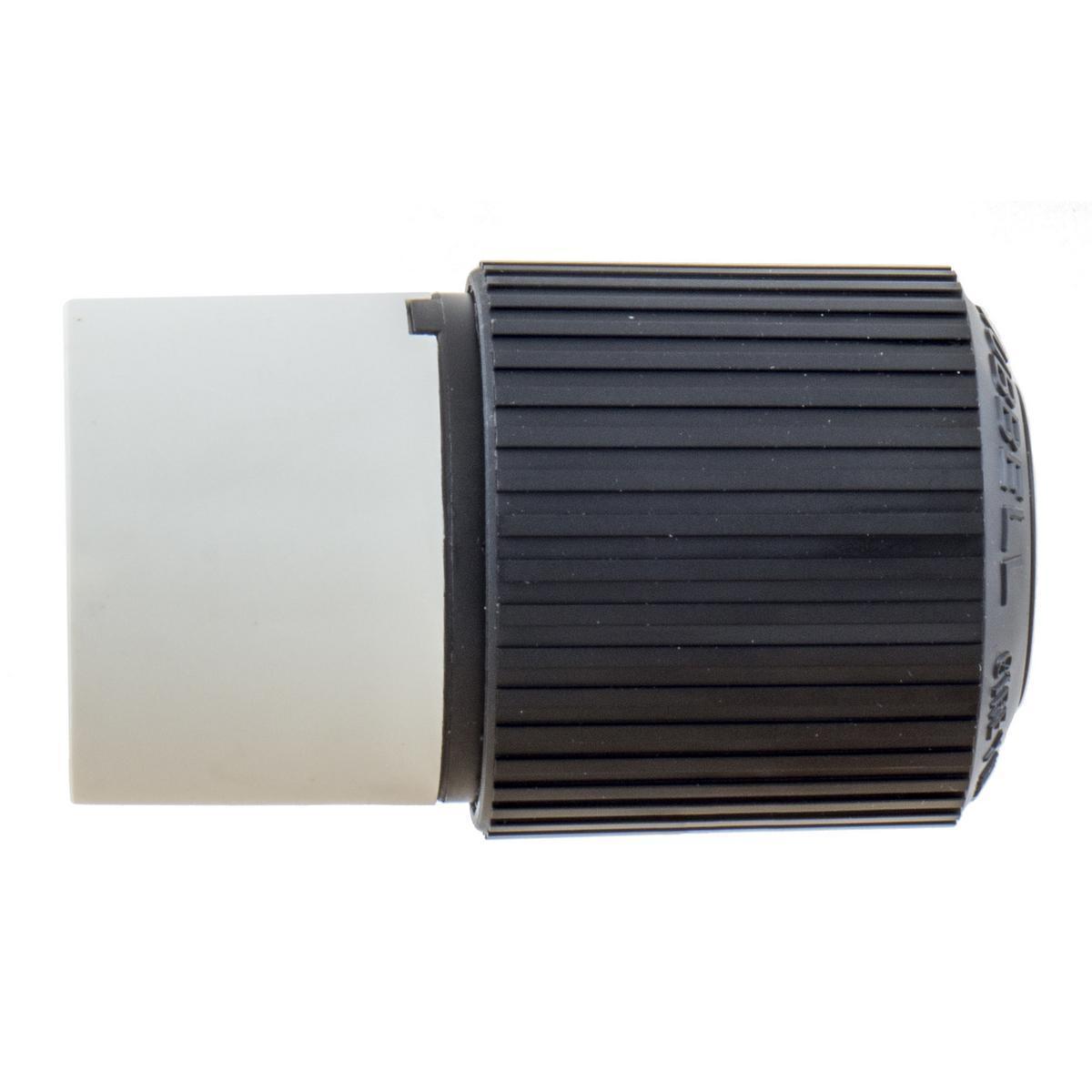

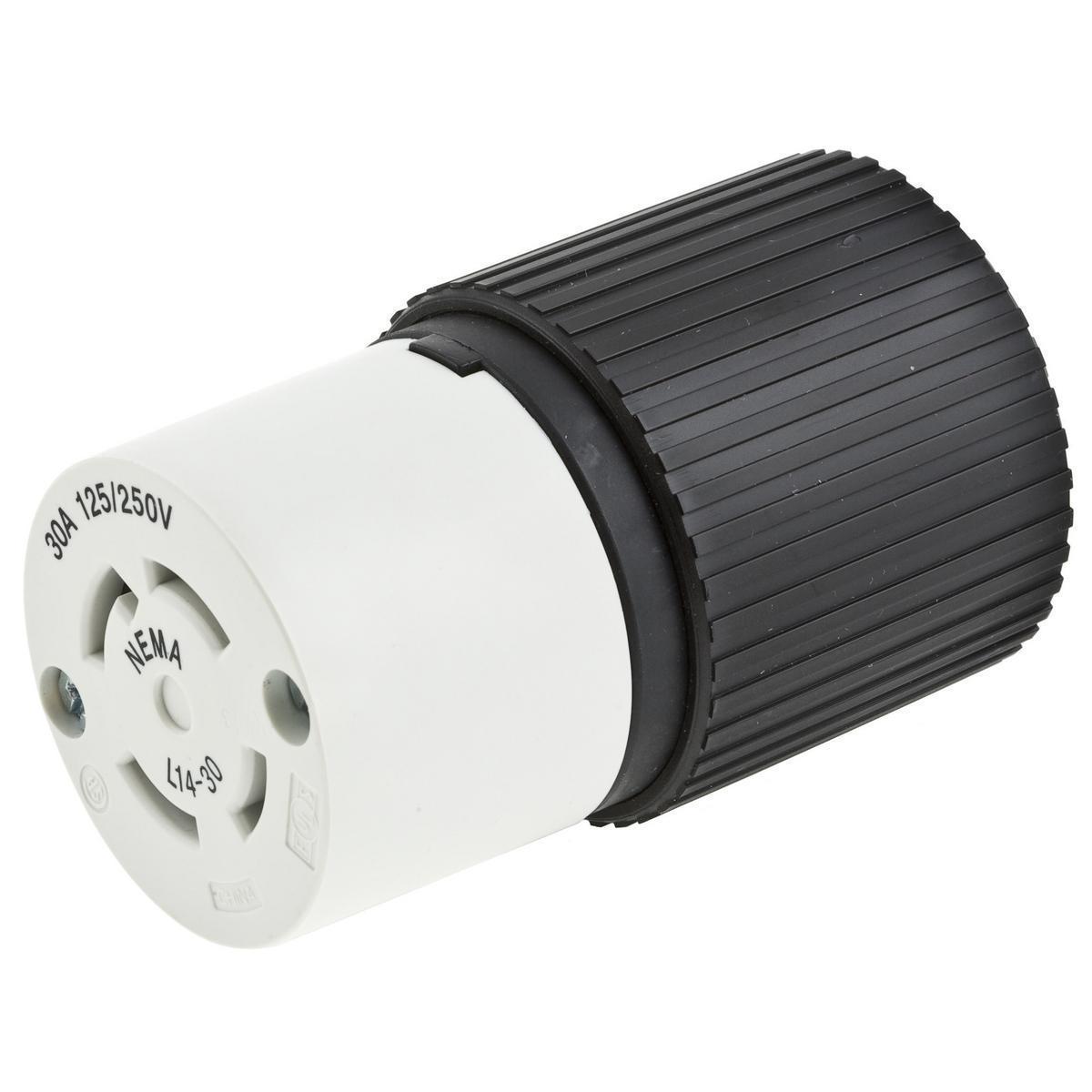

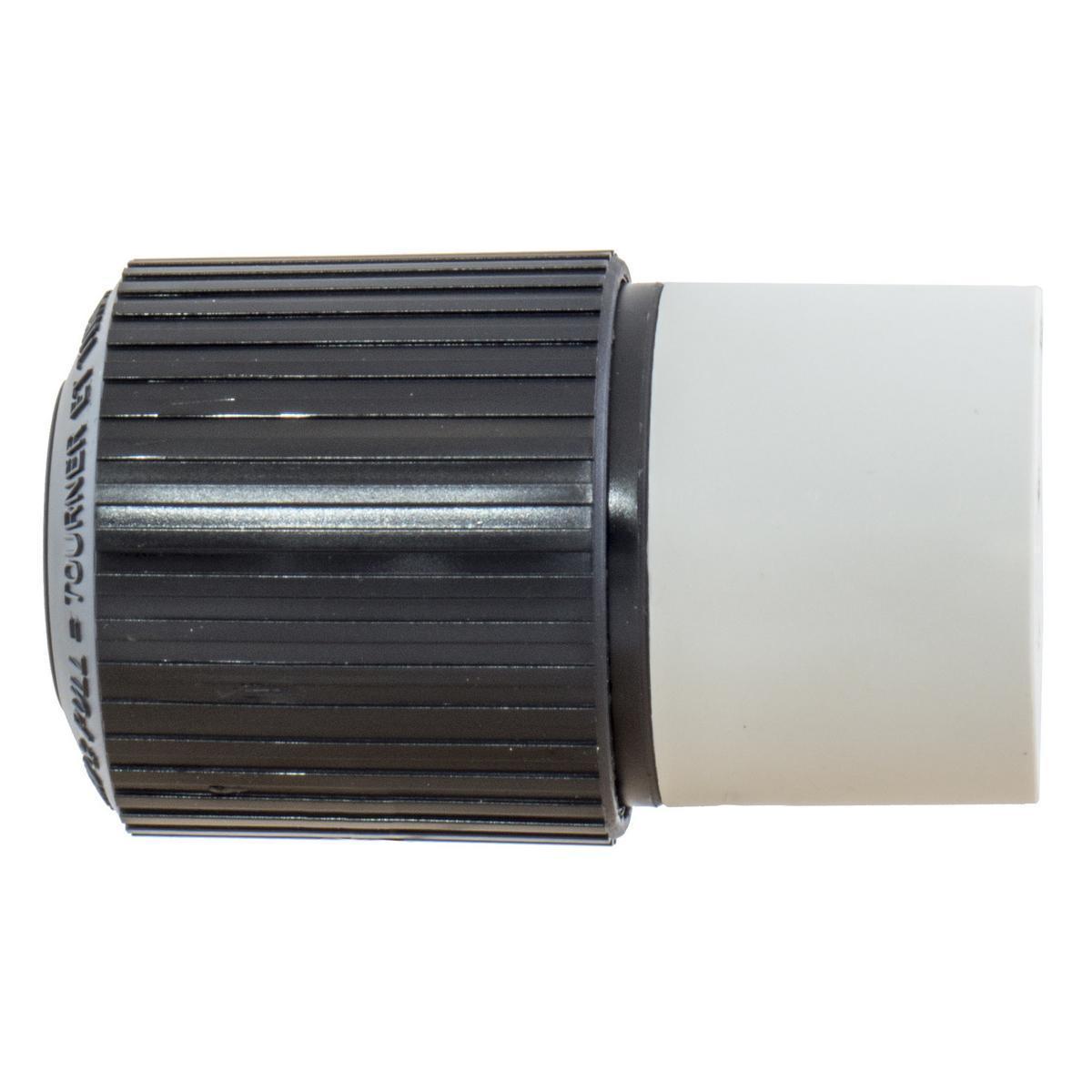

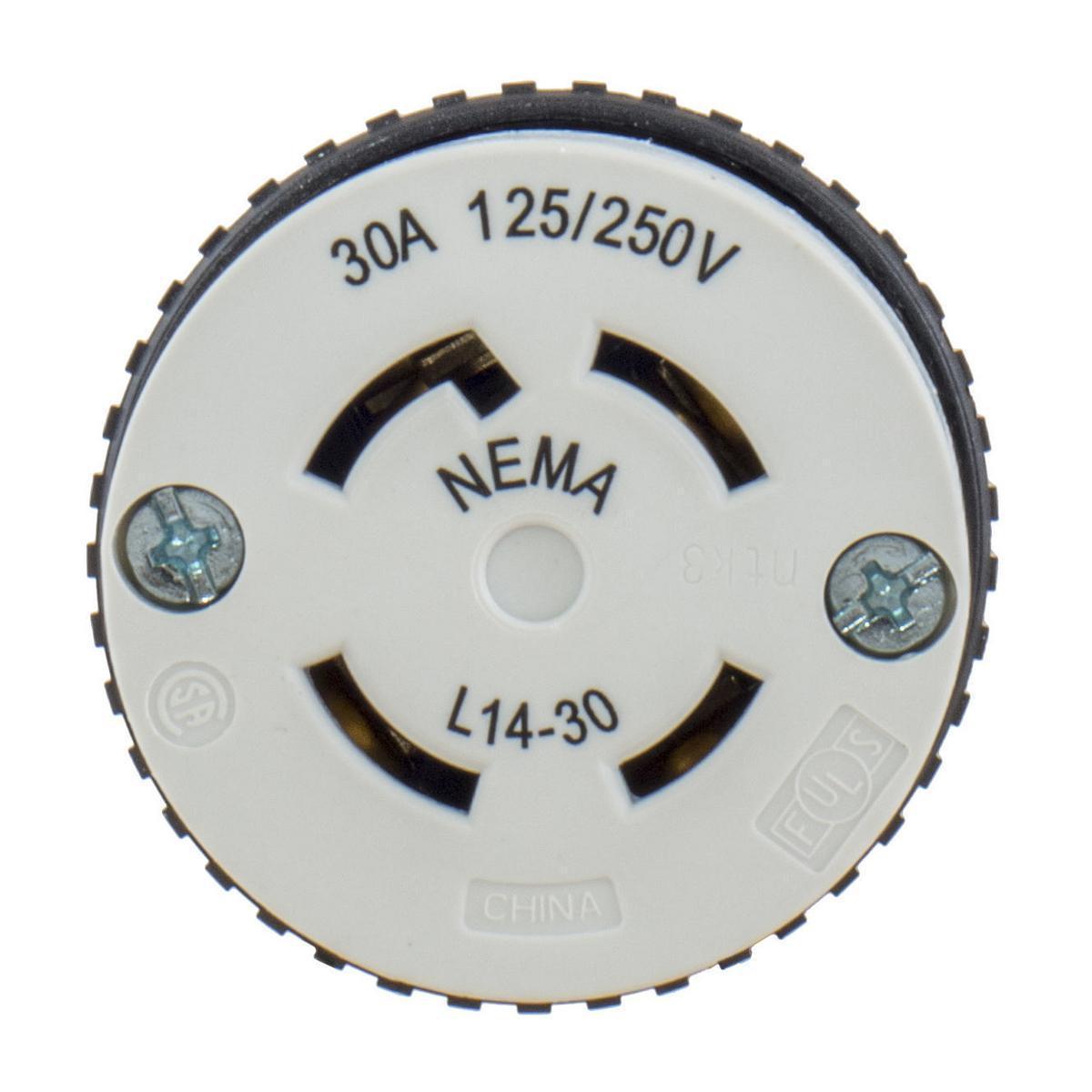

Wiring Device-Kellems L1430C

Wiring Device-Kellems L1430C Female Grounding Heavy Duty Cord Mount Connector, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Black/White

  • Manufacturer Name: Hubbell
  • MPN: L1430C
  • Brand Name: Wiring Device-Kellems
  • UPC: 783585650067
  • FEPN: L1430C HW
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Hubbell® Pro™ locking devices provide a safe disconnect solution between an equipment load and a power source. These devices incorporate a locking interface that is engaged and disengaged simply by rotating the device assuring a safe and reliable electrical connection.

Wiring Device-Kellems, L1430C, Connector, Female Grounding Heavy Duty Cord Mount, 125/250 VAC, 30 A, 3 Pole, 4 Wires, L14-30R NEMA Rating, Commercial/Industrial Grade, 0.625 to 1.05 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 1.88 in ID x 2.13 in OD Dimensions

Cord Diameter       :      0.625 to 1.05 in
Dimensions       :      1.88 in ID x 2.13 in OD
Grade       :      Commercial/Industrial
Material       :      Composite
NEMA Rating       :      L14-30R
Temperature Rating       :      -40 to 75 deg C
Terminal Type       :      Screw
Type       :      Female Grounding Heavy Duty Cord Mount
Voltage Rating       :      125/250 VAC
Amperage Rating       :      30 A
Number of Poles       :      3
Number of Wires       :      4
Color       :      Black/White
  • Supertough® nylon cover
  • Visible NEMA ratings
  • Captive assembly screws
  • Impact modified nylon blade/contact holder
  • High performance copper alloy connector contacts/blade
  • Withstands 3500 VAC per UL 498 dielectric voltage
  • Minimum 4.8 times rated current for 100 cycles overload
  • Terminals identified in accordance with UL 498 (brass, white, green) terminal identification
  • 18 to 8 AWG flexible cord terminal accommodation
  • Ratings and NEMA identification are permanently marked on device product identification
  • Cord mounted
  • Indoor dry unless protected by additional mean environmental conditions
  • 12 to 8 AWG conductor
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device-Kellems_L1430C_Installation_Manual.pdf
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device-Kellems_L1430C_Line_Drawing.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device-Kellems_L1430C_Specification_Sheet.pdf
