Wiring Device-Kellems S1SPDUSL

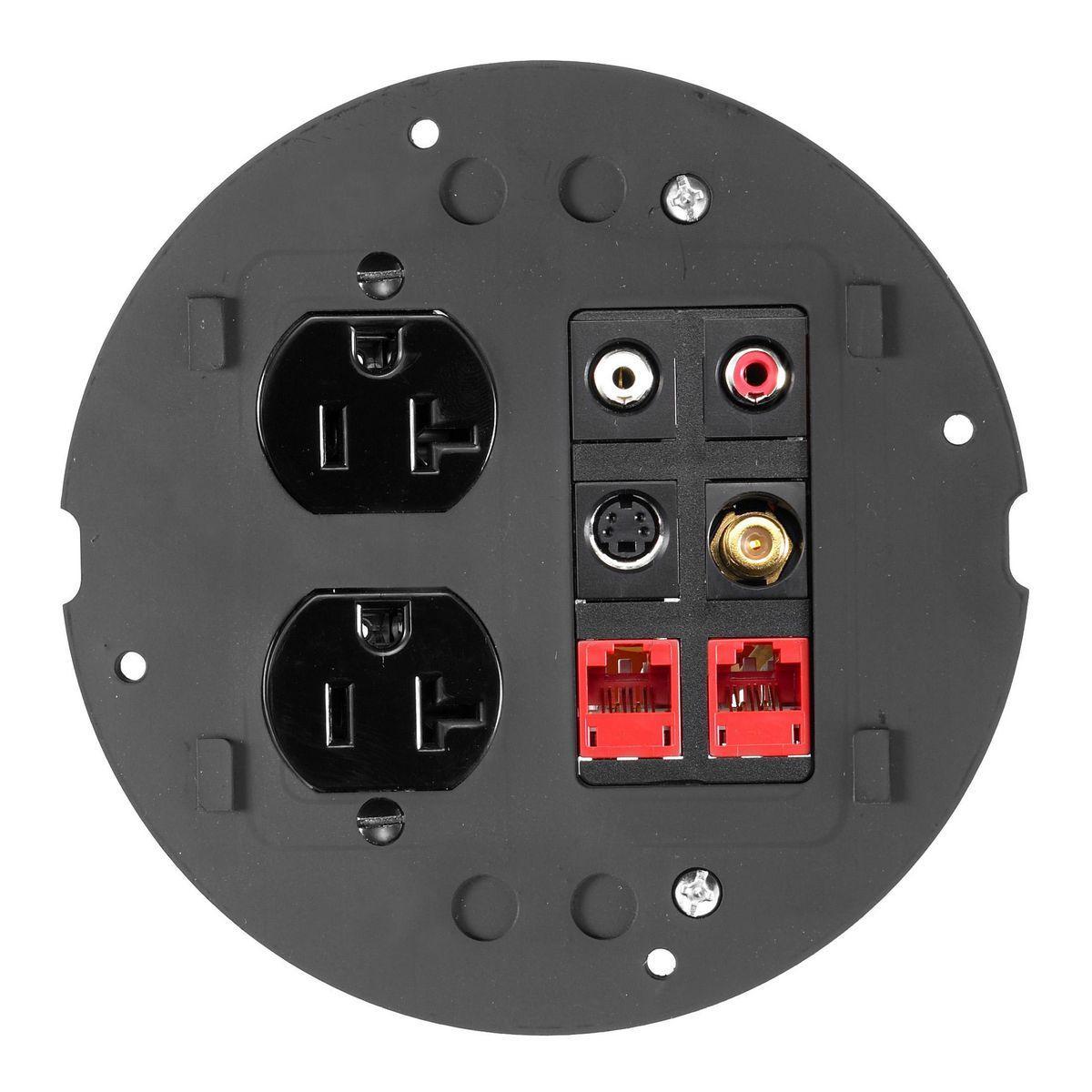

Wiring Device-Kellems S1SPDUSL SystemOne Standard Fire-Rated Poke-Through Sub Plate, 5.36 in Dia, 2.31 in L x 0.22 in D, Cast Aluminum

  • Manufacturer Name: Hubbell
  • MPN: S1SPDUSL
  • Brand Name: Wiring Device-Kellems
  • UPC: 783585371757
  • FEPN: S1SPDUSL HW
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Hubbell® SystemOne™ is an innovative system that provides consumers with the flexibility to create personal solutions for the most demanding multi-service applications for both flush in-floor boxes and fire rated poke-throughs. Hubbell® SystemOne™ features a unique universal cover assembly and a wide variety of application sub-plates that install on both Hubbell® flush floor boxes and fire rated poke-throughs. Whatever the application, Hubbell® SystemOne™ delivers a consistent, aesthetic and functional solution for applications in-the-floor or through-the-floor for power, voice, data and A/V requirements.

Wiring Device-Kellems, S1SPDUSL, Poke-Through Sub Plate, Standard Fire-Rated, Series: SystemOne, 5.36 in Diameter, 2.31 in Length, 0.22 in Depth, Round Shape, For Use With: Duplex/Decorator Devices, Cast Aluminum, Black, Powder Coated

Color       :      Black
Finish       :      Powder Coated
Series       :      SystemOne
Shape       :      Round
Suitable For Use With       :      Duplex/Decorator Devices
Type       :      Standard Fire-Rated
Diameter       :      5.36 in
Length       :      2.31 in
Depth       :      0.22 in
Material       :      Cast Aluminum
  • Large capacity and multi-service furniture feed applications
  • Open system sub-plates permit maximum data flexibility
  • (1) duplex and (1) Style Line® decorator opening for power and/or datacom applications
  • Durable Cast Aluminum Construction
  • pdfWarranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device-Kellems_IG8362SA_Warranty.pdf
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device-Kellems_S1SPDUSL_Line_Drawing.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device-Kellems_S1SPDUSL_Specification_Sheet.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device-Kellems_S1SP_Installation_Manual.pdf
