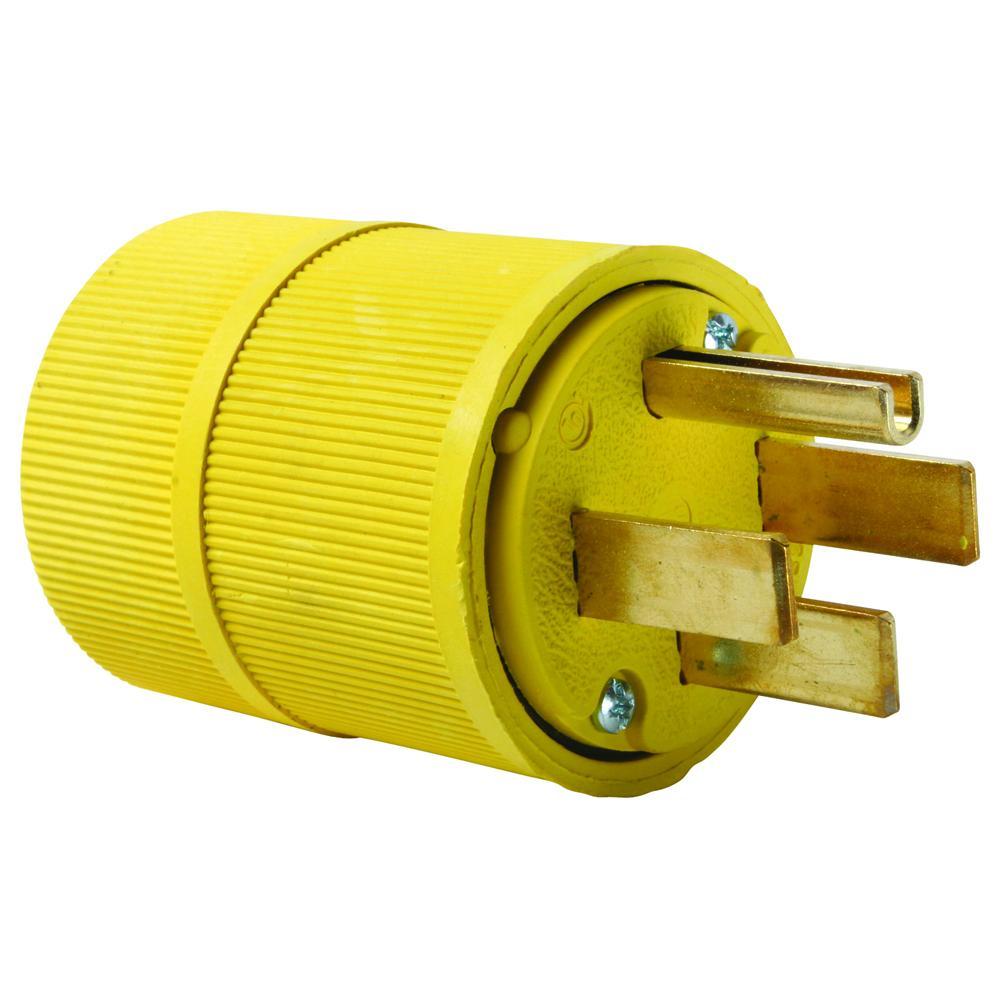

Wiring Device-Kellems HBL9451C
Wiring Device-Kellems HBL9451C 1-Phase Grounding Male Standard Cord Mount Straight Blade Plug, 125/250 VAC, 50 A, 3 Poles, 4 Wires, Black
- Manufacturer Name: Hubbell
- MPN: HBL9451C
- Brand Name: Wiring Device-Kellems
- UPC: 783585015323
- FEPN: HBL9451C HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems, HBL9451C, Straight Blade Plug, 1-Phase Grounding Male Standard Cord Mount, 125/250 VAC, 50 A, 3 hp, 3 Pole, 4 Wires, 14-50P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.625 to 1.31 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 4.13 x 2.88 x 2.88 in Dimensions
| Cord Diameter | : | 0.625 to 1.31 in |
| Dimensions | : | 4.13 x 2.88 x 2.88 in |
| Enclosure | : | IP20 |
| Grade | : | Commercial/Industrial |
| Horsepower | : | 3 hp |
| Material | : | Nylon |
| NEMA Rating | : | 14-50P |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | 1-Phase Grounding Male Standard Cord Mount |
| Voltage Rating | : | 125/250 VAC |
| Amperage Rating | : | 50 A |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Color | : | Black |
- Gripping ribs provide secure gripping area
- Supertough nylon housing
