Wiring Device-Kellems HBL26410

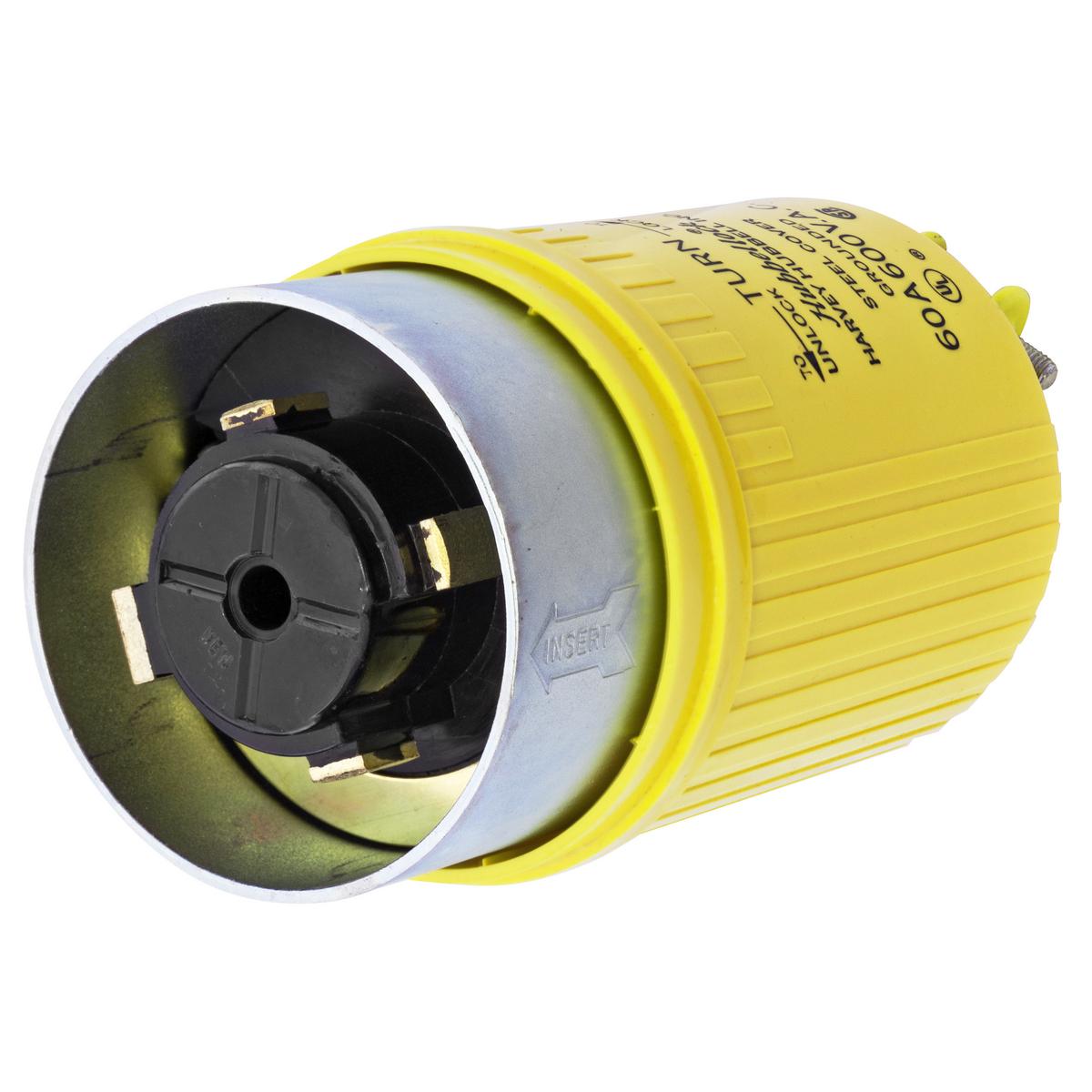

Wiring Device-Kellems Hubbellock® HBL26410 Grounding Heavy Duty Multi-Phase Non-NEMA Single Standard Screw Mount Locking Receptacle, 600 VAC, 60 A, 3 Poles, 4 Wires, Aluminum
- Manufacturer Name: Hubbell
- MPN: HBL26410
- Brand Name: Wiring Device-Kellems
- UPC: 783585017303
- FEPN: HBL26410 HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Hubbellock® Locking Receptacle, Grounding Heavy Duty Multi-Phase Non-NEMA Single Standard Screw Mount, 600 VAC, 60 A, 3 Pole, 4 Wires, Industrial Grade, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic/Aluminum, Aluminum, 3.5 x 4.62 x 3.58 in
| Dimensions | : | 3.5 x 4.62 x 3.58 in |
| Grade | : | Industrial |
| Material | : | Composite/Thermoplastic/Aluminum |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | Grounding Heavy Duty Multi-Phase Non-NEMA Single Standard Screw Mount |
| Voltage Rating | : | 600 VAC |
| Amperage Rating | : | 60 A |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Color | : | Aluminum |
- Withstands 2000 VAC dielectric voltage
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- #8-32 brass terminal and ground screw
- 6 AWG terminal accommodation
- Certified for current interrupting at full rated current interrupting
- Steel nickel plated mounting screw
- AUTO ejects improperly made connection
