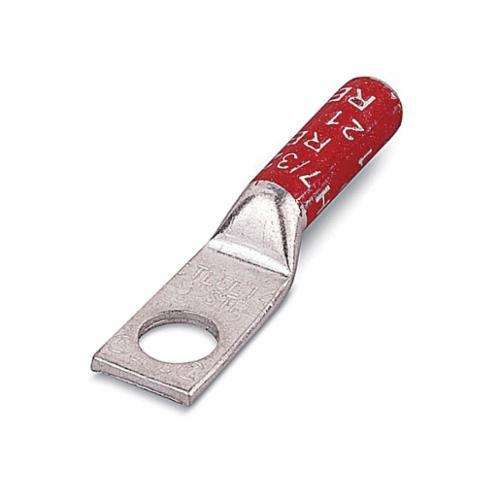

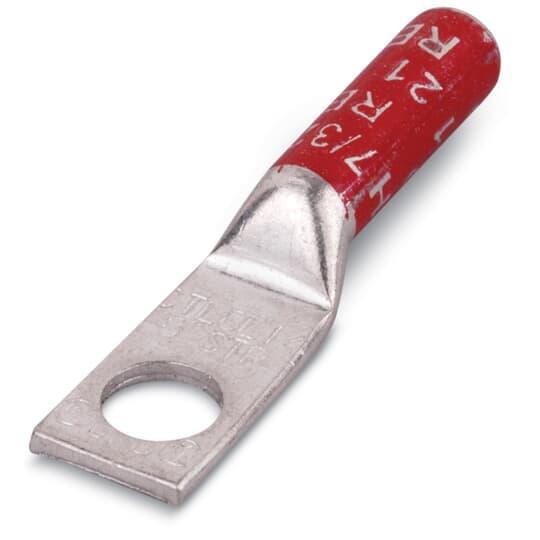

Blackburn® CTL350L-12
Color-Keyed® CTL350L-12 1-Hole Compression Lug, 350 kcmil Flexible/Stranded Copper Conductor, 1/2 in Stud, Copper
- Manufacturer Name: ABB
- MPN: CTL350L-12
- Brand Name: Blackburn®
- UPC: 783786410422
- FEPN: CTL350L-12 TB
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.
Color-Keyed® Compression Lug, 1-Hole, Series: CTL, Flexible/Stranded Copper Conductor, 350 kcmil Conductor, 35 kV, 1/2 in Stud, Straight Tongue, 1-1/4 in L x 1-11/32 in W x 5/32 in THK Tongue, 3-19/32 in Overall Length, Long Barrel, 1-27/32 in L Barrel, Specifications: Tin Plated, Copper, Red
| Barrel Size | : | 1-27/32 in L |
| Barrel Type | : | Long |
| Color | : | Red |
| Overall Length | : | 3-19/32 in |
| Series | : | CTL |
| Specifications | : | Tin Plated |
| Tongue Size | : | 1-1/4 in L x 1-11/32 in W x 5/32 in THK |
| Tongue Type | : | Straight |
| Type | : | 1-Hole |
| Voltage Rating | : | 35 kV |
| Conductor Size | : | 350 kcmil |
| Conductor Type | : | Flexible/Stranded Copper |
| Stud Size | : | 1/2 in |
| Material | : | Copper |
- For use with copper conductor AWG, stranded, flexible cable, welding cable and portable cord
- Made of high conductivity seamless copper tubing
- Tin plated for corrosion-resistance
- Specially chamfered barrel for ease of installation
- Color coded for matching die identification
- Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used
- Heavy duty design which permits additional crimp for added mechanical strength
