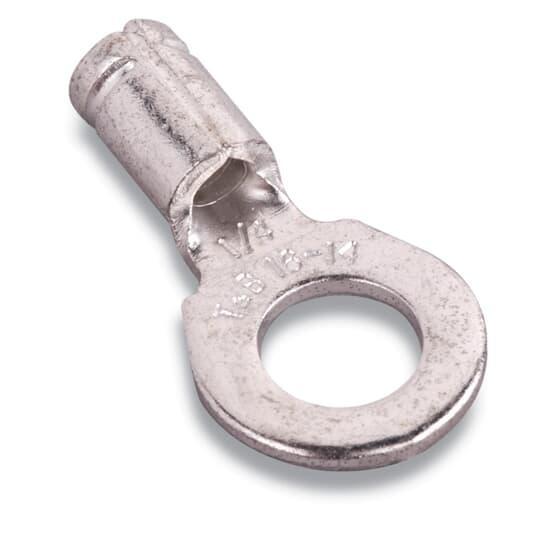

Sta-Kon® BC86
Sta-Kon® BC86 B Series Heavy Duty Ring Terminal, 16 to 14 AWG Conductor, 0.87 in L, Brazed Seam Barrel, Electrolytic Copper
- Manufacturer Name: ABB
- MPN: BC86
- Brand Name: Sta-Kon®
- UPC: 786210880310
- FEPN: BC86 TB
- Min Order Qty: 1
- Quantity Interval: 500
-
Inventory Availability
-
Retail Price:
Sta-Kon® Ring Terminal, Heavy Duty, Series: B Series, 16 to 14 AWG Conductor, #8 Stud, 0.87 in Length, Brazed Seam Barrel, 0.39 in W Tongue, 600 V, Non-Insulated, 150 deg C, Electrolytic Copper, TiN Coated
| Finish | : | TiN Coated |
| Series | : | B Series |
| Specifications | : | Non-Insulated |
| Stud Size | : | #8 |
| Temperature Rating | : | 150 deg C |
| Tongue Size | : | 0.39 in W |
| Type | : | Heavy Duty |
| Voltage Rating | : | 600 V |
| Conductor Size | : | 16 to 14 AWG |
| Length | : | 0.87 in |
| Barrel Type | : | Brazed Seam |
| Material | : | Electrolytic Copper |
- These non-insulated ring terminals are made of electrolytic copper for high conductivity
- They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire)
- Serrated barrel increases grip on wire
Specification Sheet
