Blackburn® 10103-TB
Send Print
  1. pin-int

Blackburn® 10103-TB

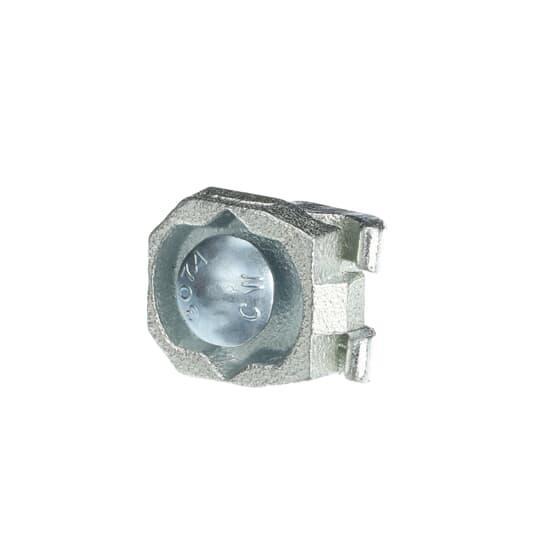

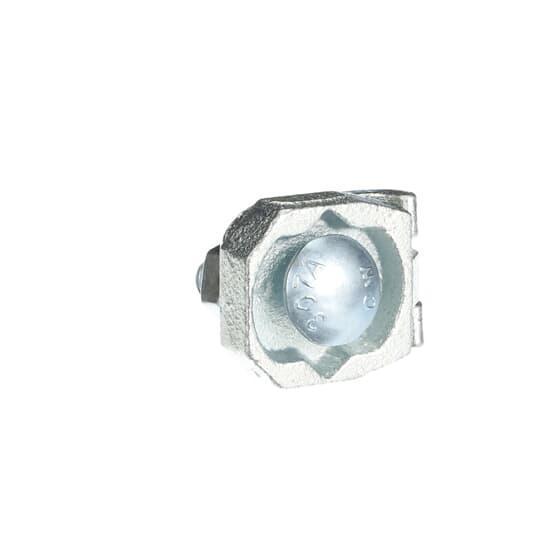

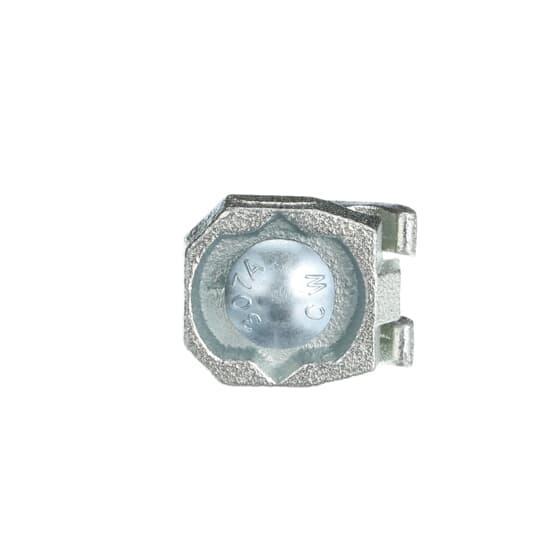

Blackburn® E-Z Ground® 10103-TB 1-Conductor Non-Insulated Grounding Clamp, 3/8-16 Rod, 4 to 4/0 AWG Conductor, Malleable Iron

  • Manufacturer Name: ABB
  • MPN: 10103-TB
  • Brand Name: Blackburn®
  • UPC: 786210101033
  • FEPN: 10103-TB TB
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Blackburn® compression, mechanical and exothermic connectors and accessories represent the most comprehensive set of products in the industry for the creation of a safe, code compliant and reliable grounding system.

Blackburn® E-Z Ground® Grounding Clamp, 1-Conductor Non-Insulated, 3/8-16 Rod, Stranded Conductor, 4 to 4/0 AWG Conductor, Malleable Iron

Conductor Type       :      Stranded
Type       :      1-Conductor Non-Insulated
Rod Size       :      3/8-16
Conductor Size       :      4 to 4/0 AWG
Material       :      Malleable Iron
  • Cable tray connector style
  • For use on cable tray upto 5/32 in THK
  • 3/8-16 carriage bolt
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Blackburn_10103-TB_Specification_Sheet.pdf
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Blackburn_GTC23P_Catalog.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_133e133675762ea69654da5e8136357d56425694b7ff4efb84564442e98b7f11.pdf
