EATON offers BR 1 in circuit breakers with a thermal magnetic trip curve that avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short circuit conditions.

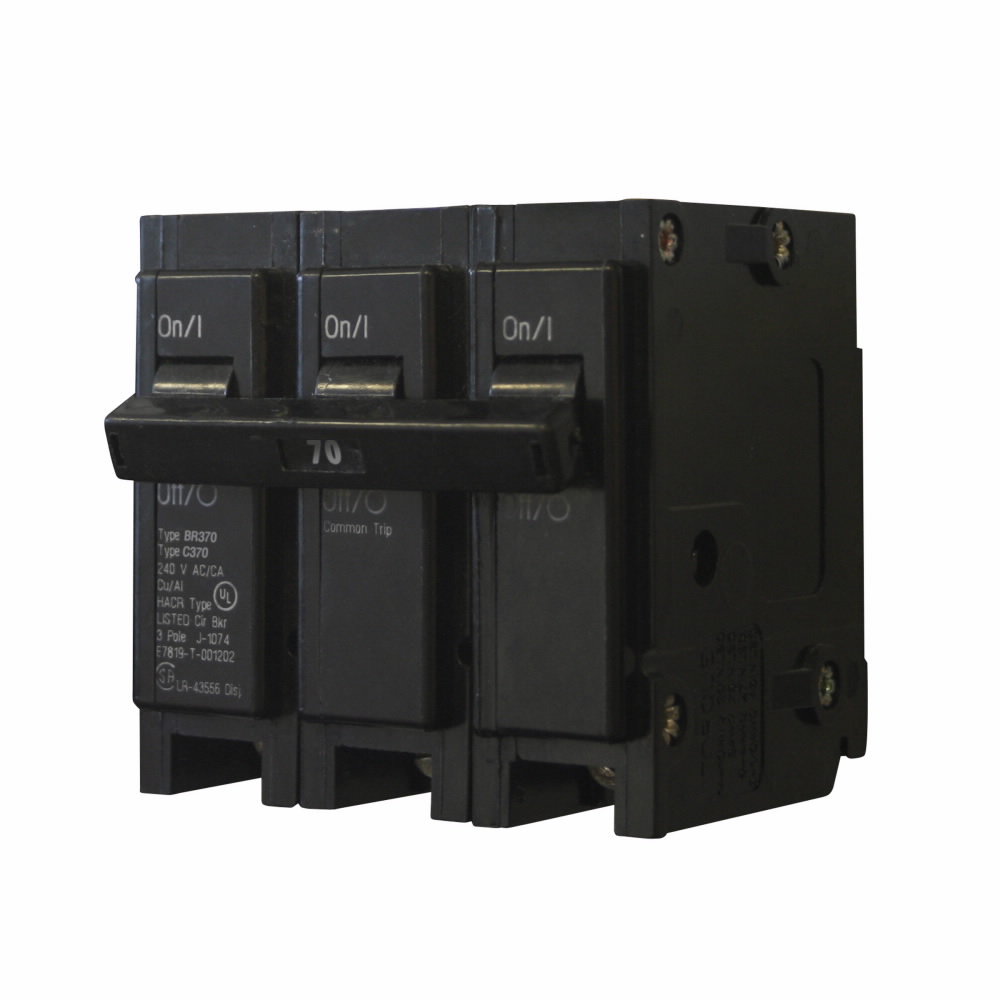

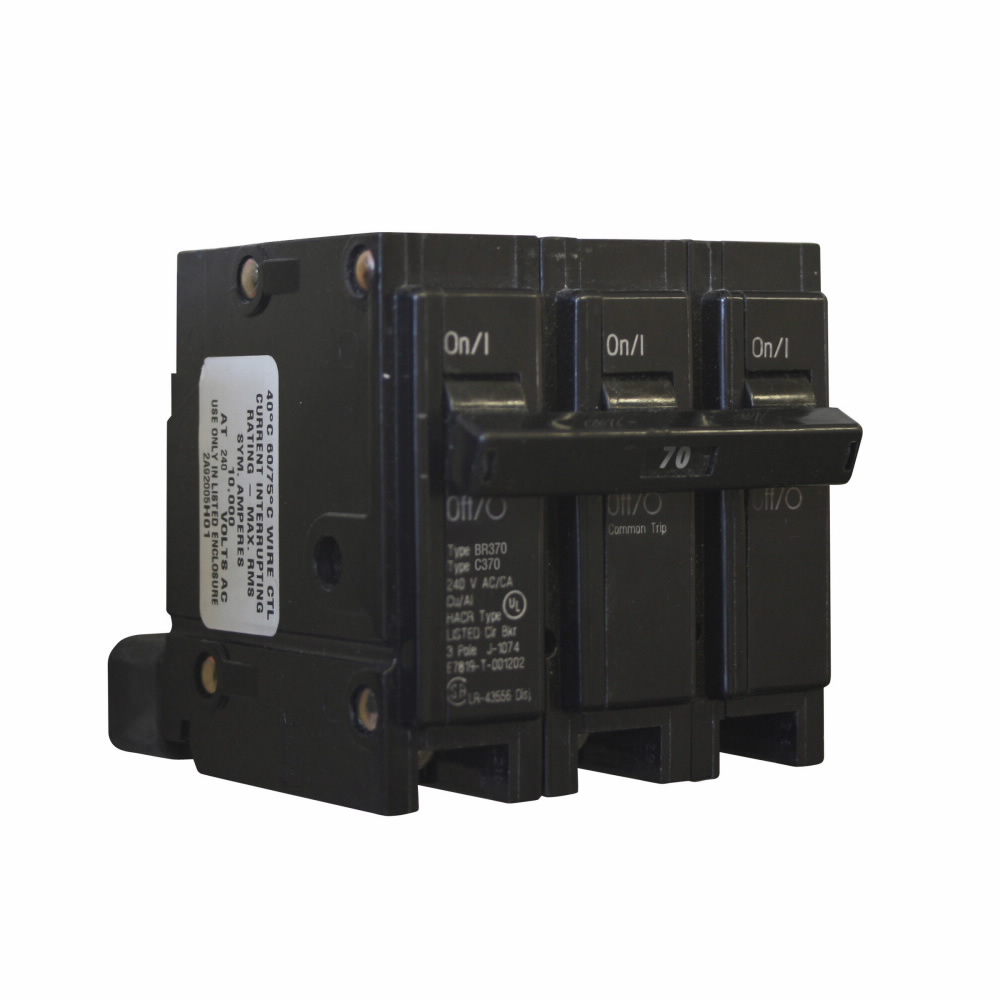

EATON Circuit Breaker, Type BR, 240 VAC, 70 A, 10 kA Interrupt, Common Trip, 3 Pole, 3 ph, Handle Actuator, 4 to 1/0 AWG Wire, Plug-On Mount, 40 deg C, 3-1/4 in L x 3 in W x 4 in H
| Actuator Type | : | Handle |
| Dimensions | : | 3-1/4 in L x 3 in W x 4 in H |
| Mounting Type | : | Plug-On |
| Phase | : | 3 |
| Temperature Rating | : | 40 deg C |
| Type | : | Type BR |
| Wire Size | : | 4 to 1/0 AWG |
| Voltage Rating | : | 240 VAC |
| Amperage Rating | : | 70 A |
| Interrupt Rating | : | 10 kA |
| Number of Poles | : | 3 |
| Trip Type | : | Common |
- All BR circuit breakers have rejection tab feature
- Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip free handle design
- Standard interrupting capacity
Line Drawing
