EATON's line-of single position, self-contained meter sockets house the utilities electrical watthour meters in residential and commercial buildings. Choose from the widest range of utility approved sockets in the industry, including 100 to 320 A units and designs such as ring less, bypass and more.

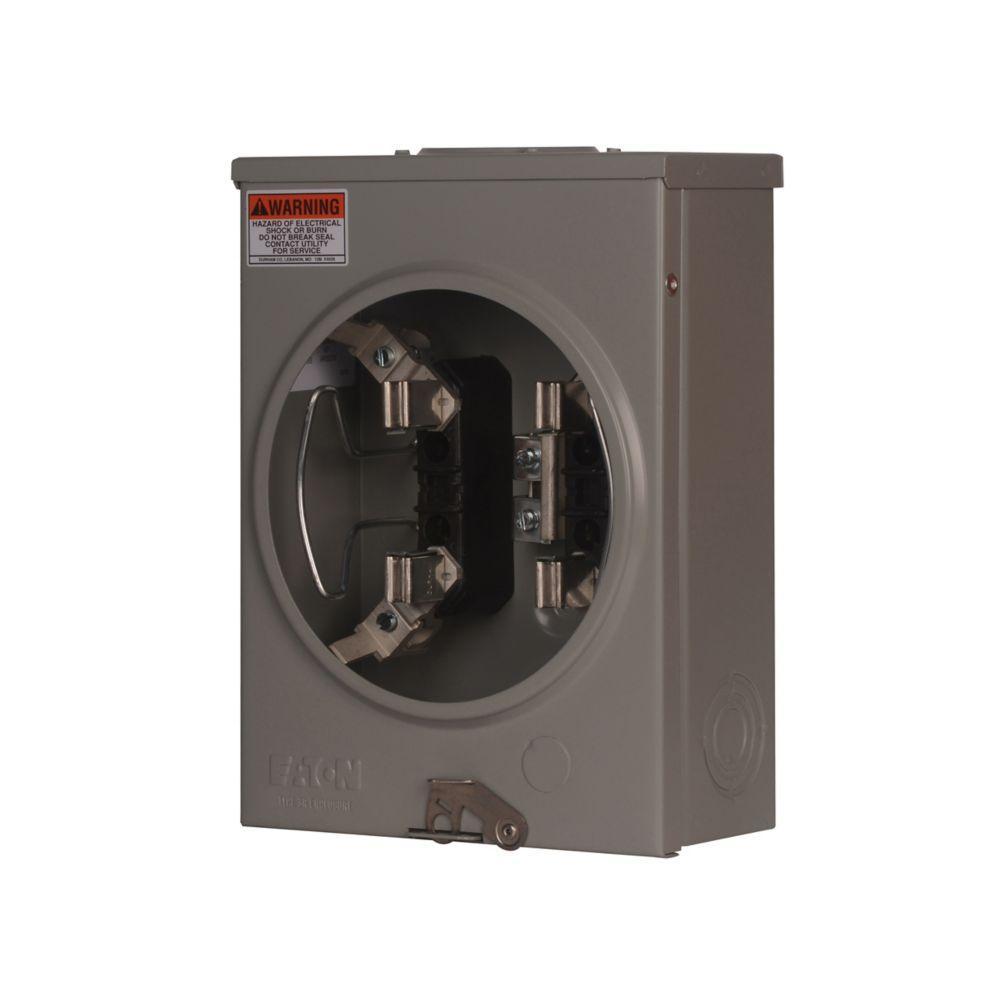

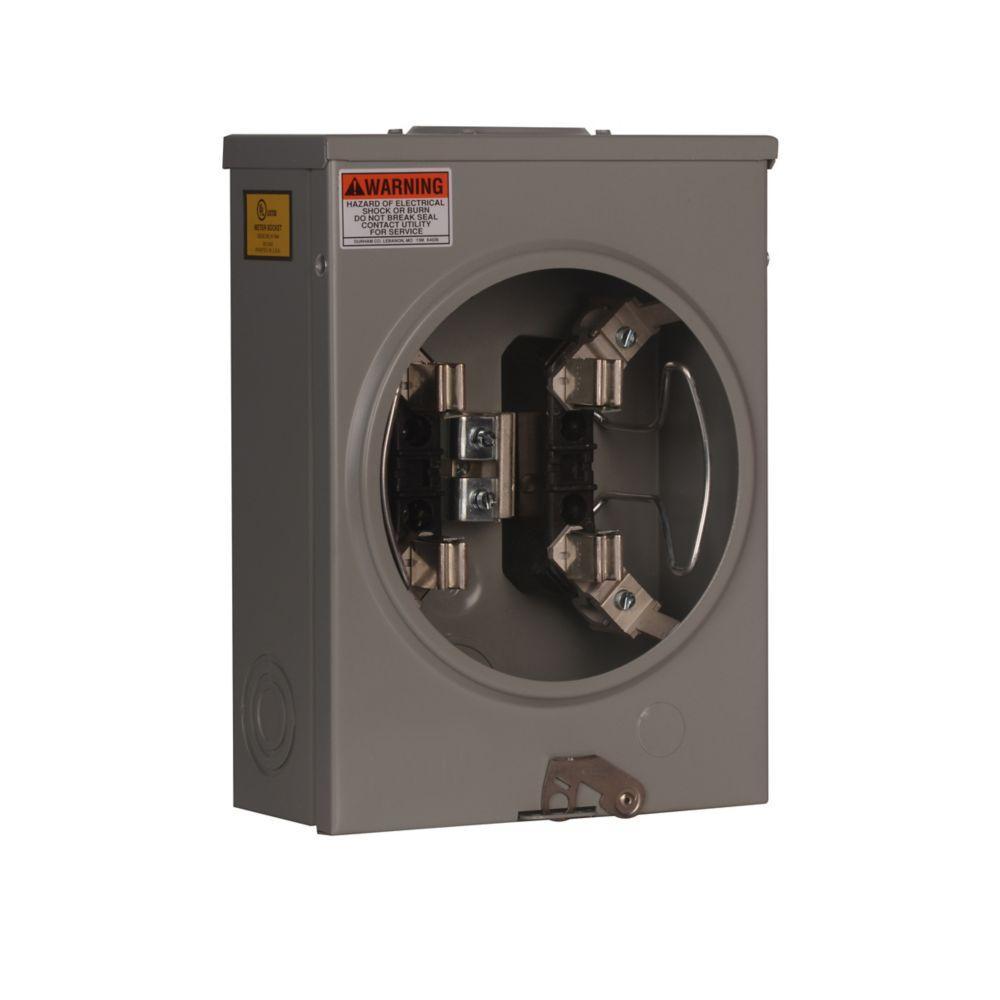

EATON Meter Socket, 3-Wire 1-Position Residential Service, 600 VAC, 125 A, 1 ph, Overhead Feed, 4 Jaws, 8 to 2/0 AWG Wire, Small Open, 3-5/16 in Hub, Ringless Cover, Line/Load Terminal, 3.5 in L x 8 in W x 10.88 in H

• Block assembly base exceeds 400 in-lb of torque provides durability under the most extreme installation circumstances
• One-piece, die-run enclosure eliminates tampering and extends product life
• High visibility EATON name embossed on cover

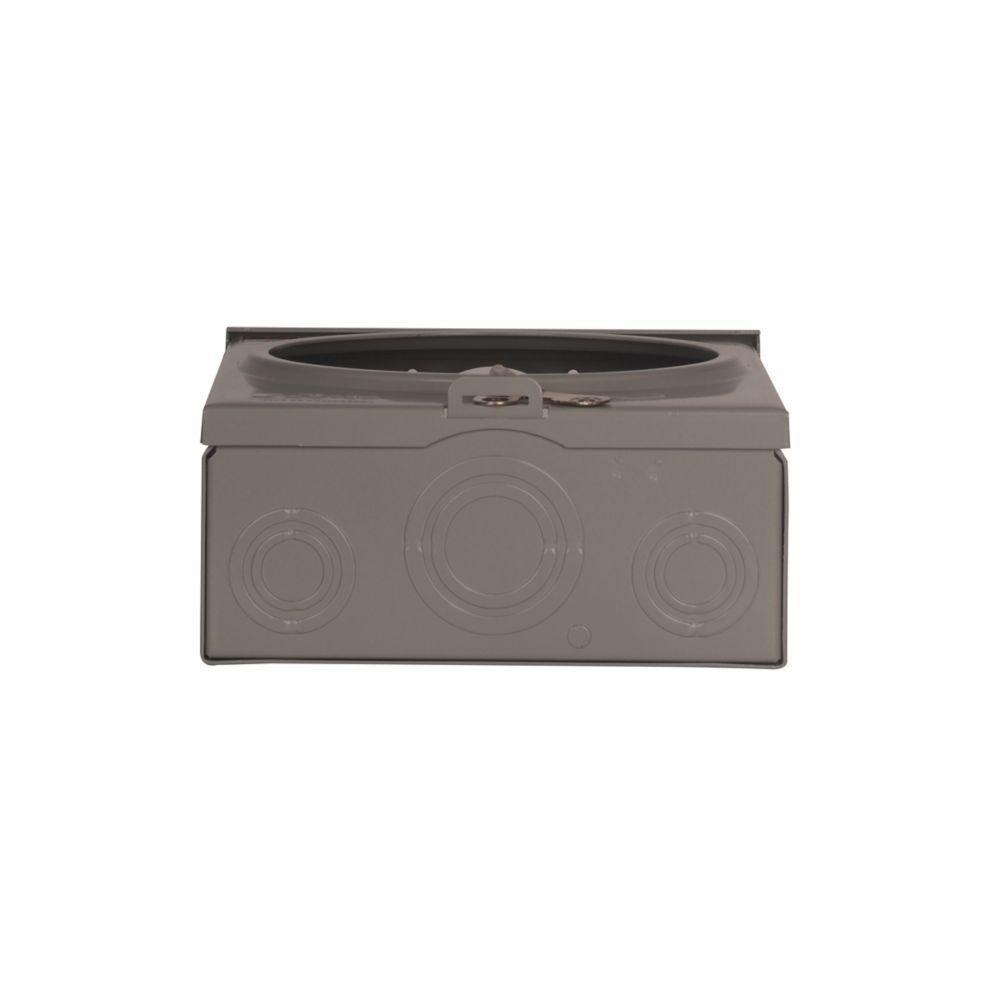

• Knockouts are installer friendly, labor savings, less time needed for removing knockouts
• Oversized 7/8 in Dia, heavy duty, steel lug screws stronger connection component facilitates a reliable wire termination
• Slide nuts are captive allow for ease in installation of conductors and eliminates lost components
• Horn bypass kit is field installable by changing out slide nut, integral triplex or quadplex ground extruded in neutral lugless inventory required and field modifications are simple
• One-piece for terminating incoming/outgoing neutral conductors, which increases integrity of connections
• 100% plated bridge with four point mounting, zinc chromate plated to provide superior corrosion resistance
• Rating up to 200 kA interrupt rating with specified overcurrent protection devices
• Provides a complete EATON residential solution
• Copper plated alloy jaws with reinforcing spring
• Steel reinforcing springs used in all socket jaws to maintain electrical connections
