Panduit® DNH14-250FIB-Q

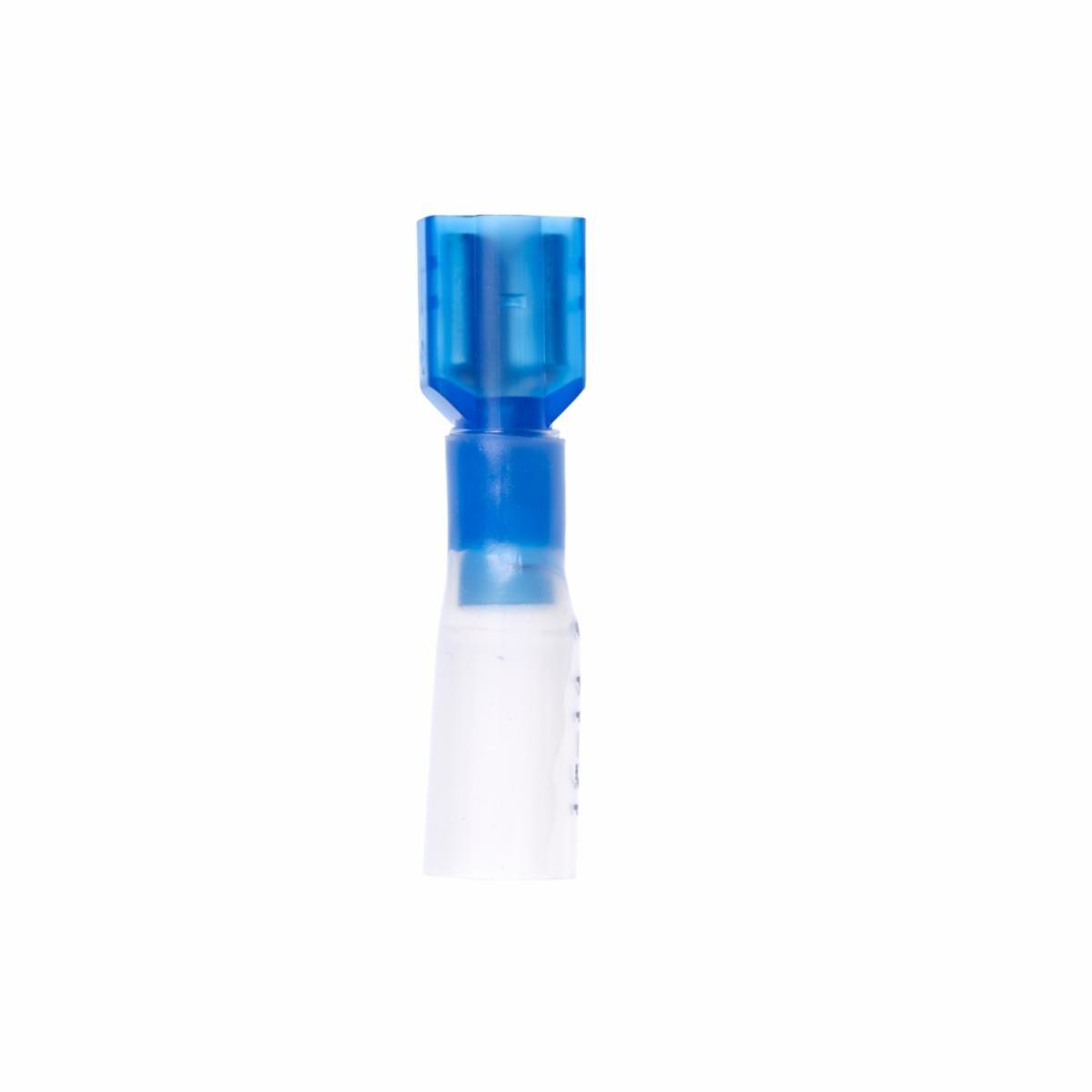

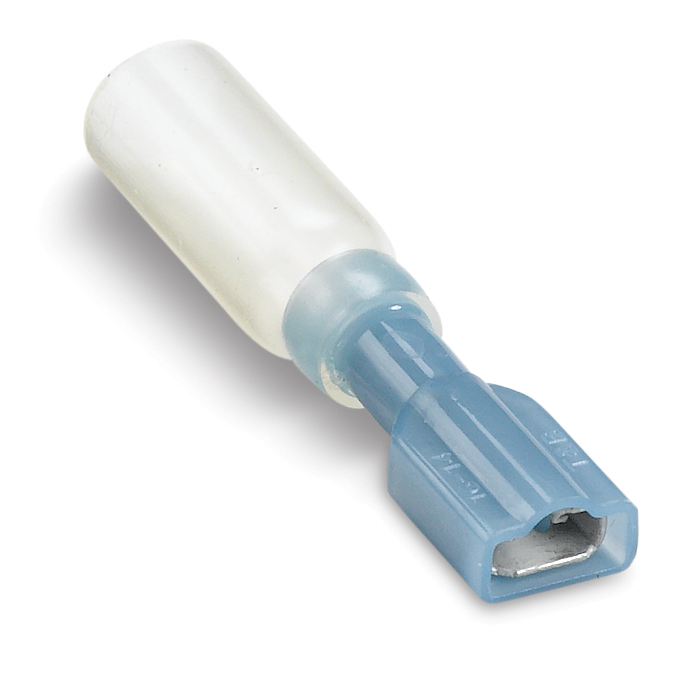

Panduit® Pan-Term™ DNH14-250FIB-Q Type DNH-FIB Heat Shrink Loose Piece Female Disconnect, 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Standard Barrel, Brass, Blue, Fully Insulated
- Manufacturer Name: Panduit
- MPN: DNH14-250FIB-Q
- Brand Name: Panduit®
- UPC: 074983818297
- FEPN: DNH14-250FIB-Q PC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Panduit® Pan-Term™ Female Disconnect, Type DNH-FIB Heat Shrink Loose Piece, Stranded Conductor, 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Standard Barrel, Crimp Terminal, 600 V, Specifications: 0.156 in Dia Insulation, 0.28 in Mounting Hole Size, 9/32 in L Wire Strip, 230 deg F, Brass, Blue, Tin Plated, 1.44 in L x 0.35 in W x 0.22 in H Dimensions, Insulated: Fully Insulated
| Conductor Type | : | Stranded |
| Dimensions | : | 1.44 in L x 0.35 in W x 0.22 in H |
| Finish | : | Tin Plated |
| Specifications | : | 0.156 in Dia Insulation, 0.28 in Mounting Hole Size, 9/32 in L Wire Strip |
| Temperature Rating | : | 230 deg F |
| Terminal Type | : | Crimp |
| Type | : | Type DNH-FIB Heat Shrink Loose Piece |
| Voltage Rating | : | 600 V |
| Conductor Size | : | 14 AWG |
| Tab Size | : | 0.25 in W x 0.032 in THK |
| Barrel Type | : | Butted Seam/Standard |
| Material | : | Brass |
| Color | : | Blue |
| Insulated | : | Fully Insulated |
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Full Engineering Drawing
