The XT IEC series includes non-reversing and reversing contactors and starters as well as overload relays and accessories. Enclosed control options include metallic and non-metallic enclosures with circuit breakers and North American or European fuses. The XT line of IEC motor control is not the same as traditional motor control designs. XT was designed to be engineered better.

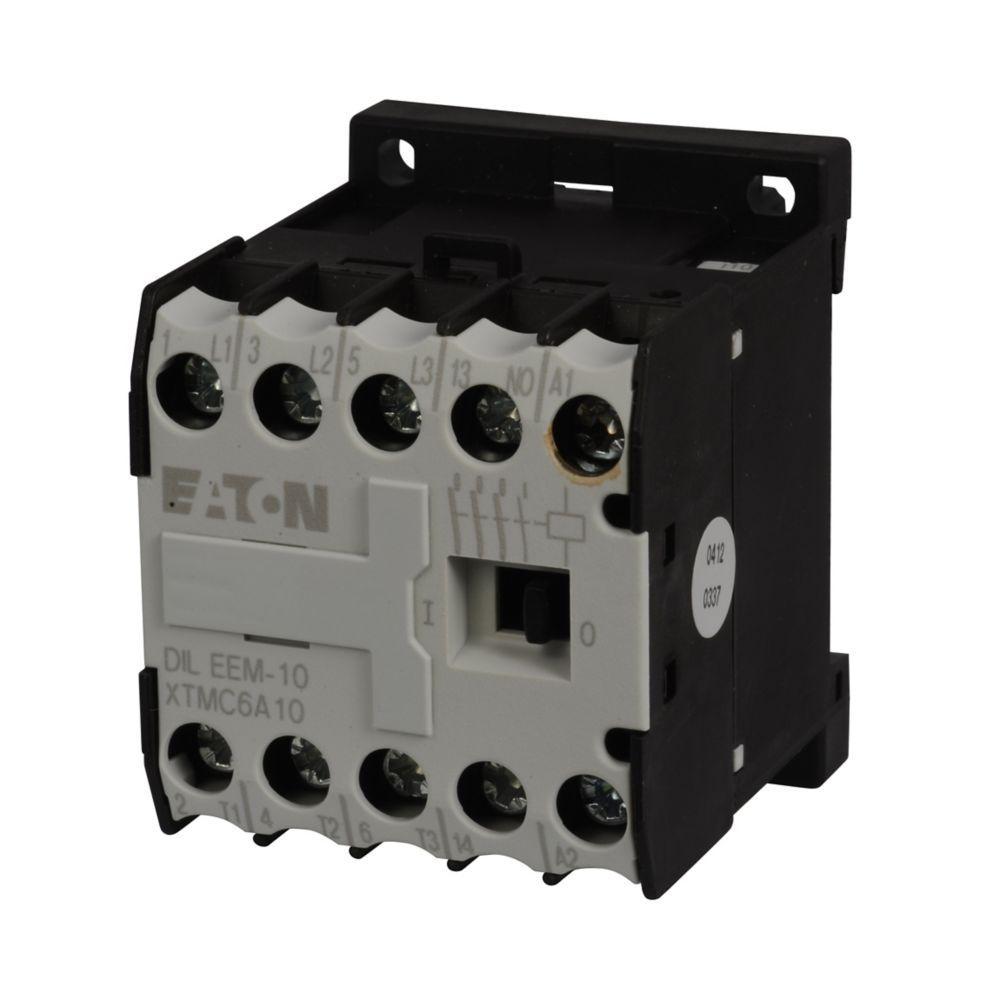

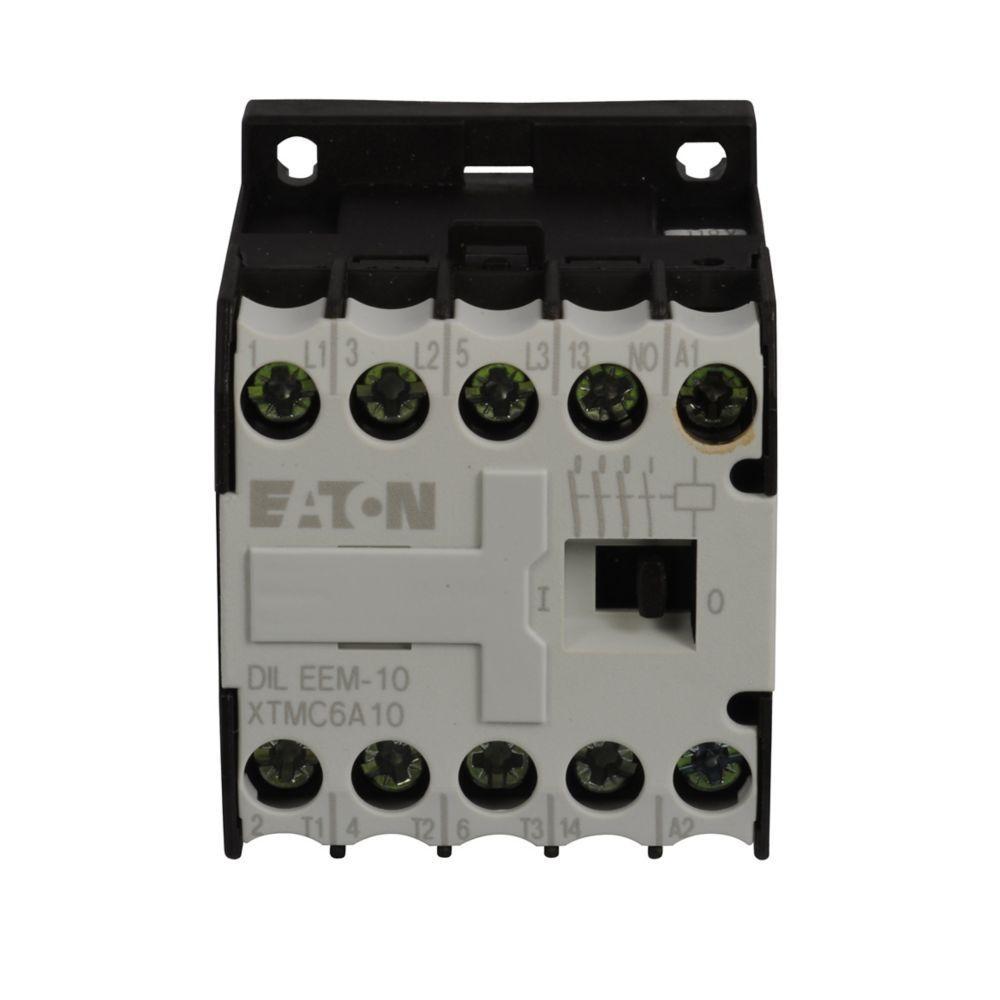

EATON IEC Miniature Contactor, Full Voltage Non-Reversing, Series: XT Series, 110/120 VAC Coil, 6.6 A Maximum Load Current, 1/4 hp at 115 VAC 1 ph, 3/4 hp at 200 VAC 1 ph, 1 hp at 230 VAC 1 ph, 1-1/2 hp at 200 VAC 3 ph, 2 hp at 230 VAC 3 ph, 3 hp at 460/575 VAC 3 ph Coil, 3 Pole, 50/60 Hz Frequency, 1NO Contact Configuration, 1 Auxiliary Contacts, 45 mm Size, Screw Terminal, IP20 Enclosure, DIN Rail/Panel Mounting, 1.77 in W x 2.05 in D x 2.28 in H Dimensions
| Coil Power Rating | : | 1/4 hp at 115 VAC 1 ph, 3/4 hp at 200 VAC 1 ph, 1 hp at 230 VAC 1 ph, 1-1/2 hp at 200 VAC 3 ph, 2 hp at 230 VAC 3 ph, 3 hp at 460/575 VAC 3 ph |
| Dimensions | : | 1.77 in W x 2.05 in D x 2.28 in H |
| Enclosure Type | : | IP20 |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | DIN Rail/Panel |
| Number of Auxiliary Contacts | : | 1 |
| Series | : | XT Series |
| Size | : | 45 mm |
| Terminal Type | : | Screw |
| Type | : | Full Voltage Non-Reversing |
| Coil Voltage | : | 110/120 VAC |
| Maximum Load Current | : | 6.6 A |
| Contact Configuration | : | 1NO |
| Number of Poles | : | 3 |
- Electronic coil controller allows contactors to reduce power consumption and generate less heat, resulting in lower cooling requirements, the ability to mount more contactors/starters per cabinet and an extended life on pilot devices that carry control signals
- AC and DC devices with the same dimensions achieved with an electronically controlled coil system allow for space savings and reduced engineering design time
- Integrated suppressors in DC controlled contactors offers reductions in total logistics and inventory costs by limiting the number of products ordered and stocked
- Wiring is not required, therefore increasing installation and maintenance efficiency
- Expanded range of DC coil control voltages, allows reliable operation through fluctuations in control voltages
- Twin terminals with separate sockets in contactors up to 400 A offer installation and application flexibility when using different size wires
- The improved integrity of the connections reduces cabling faults
