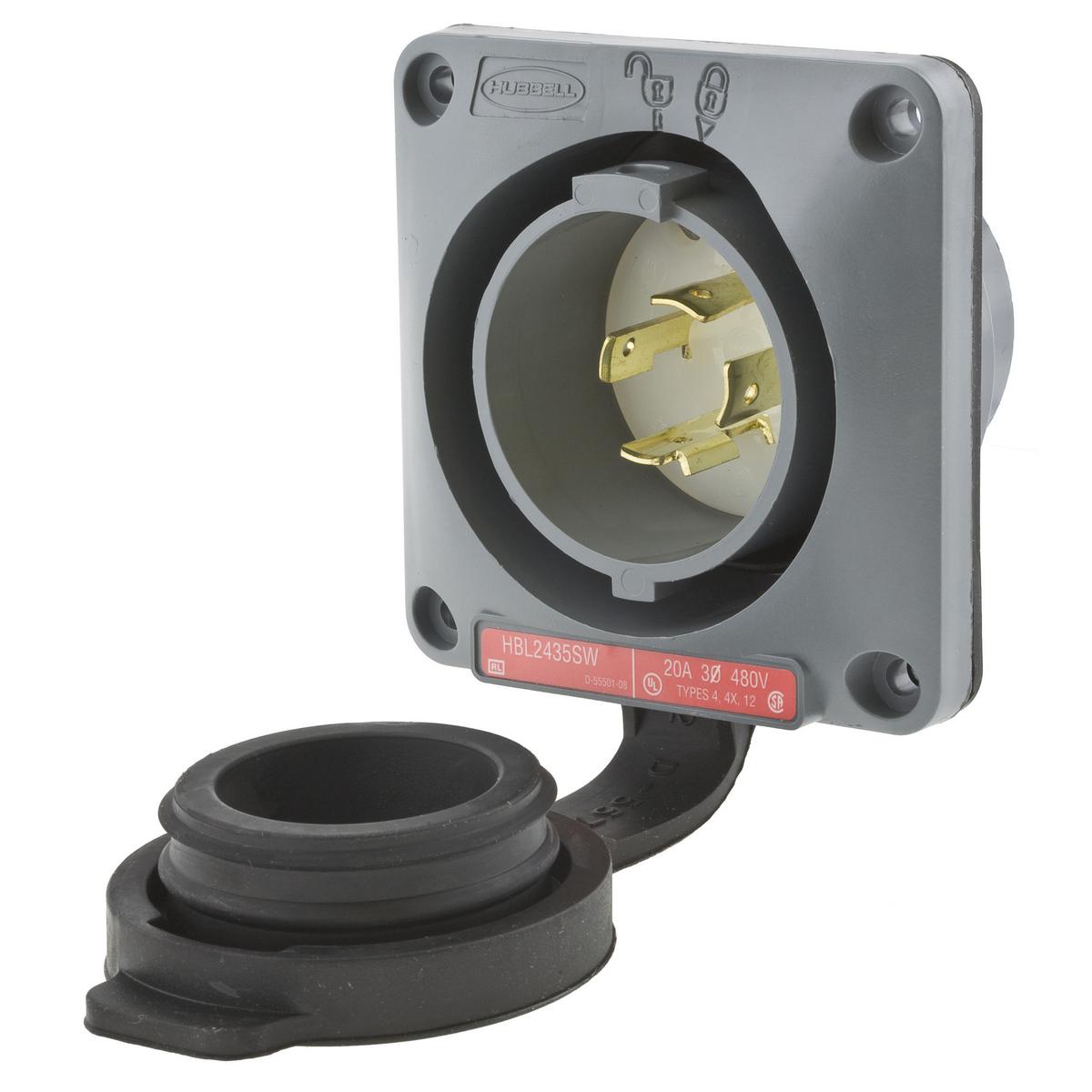

Wiring Device-Kellems HBL2435SW
Wiring Device-Kellems HBL2435SW 3-Phase Grounding Standard Single Shrouded Watertight Screw Mount Locking Flanged Inlet, 480 VAC, 20 A, 3 Poles, 4 Wires, Gray/White
- Manufacturer Name: Hubbell
- MPN: HBL2435SW
- Brand Name: Wiring Device-Kellems
- UPC: 783585231488
- FEPN: HBL2435SW HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems, HBL2435SW, Locking Flanged Inlet, 3-Phase Grounding Standard Single Shrouded Watertight Screw Mount, 480 VAC, 20 A, 5 hp, 3 Pole, 4 Wires, L16-20P/WD1/WD5 NEMA Rating, Industrial Grade, NEMA 4X/12/IP66 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Thermoplastic, Gray/White, 3.75 x 3.75 x 2.44 in Dimensions
| Cord Diameter | : | 0.35 to 1.15 in |
| Dimensions | : | 3.75 x 3.75 x 2.44 in |
| Enclosure | : | NEMA 4X/12/IP66 |
| Grade | : | Industrial |
| Horsepower | : | 5 hp |
| Material | : | Thermoplastic |
| NEMA Rating | : | L16-20P/WD1/WD5 |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | 3-Phase Grounding Standard Single Shrouded Watertight Screw Mount |
| Voltage Rating | : | 480 VAC |
| Amperage Rating | : | 20 A |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Color | : | Gray/White |
- Closure cap is included for environmental seal when device is not in use
- 12 to 10 AWG wire
- Catalog number and color coded voltage rating are easily visible even when in use
- Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected
