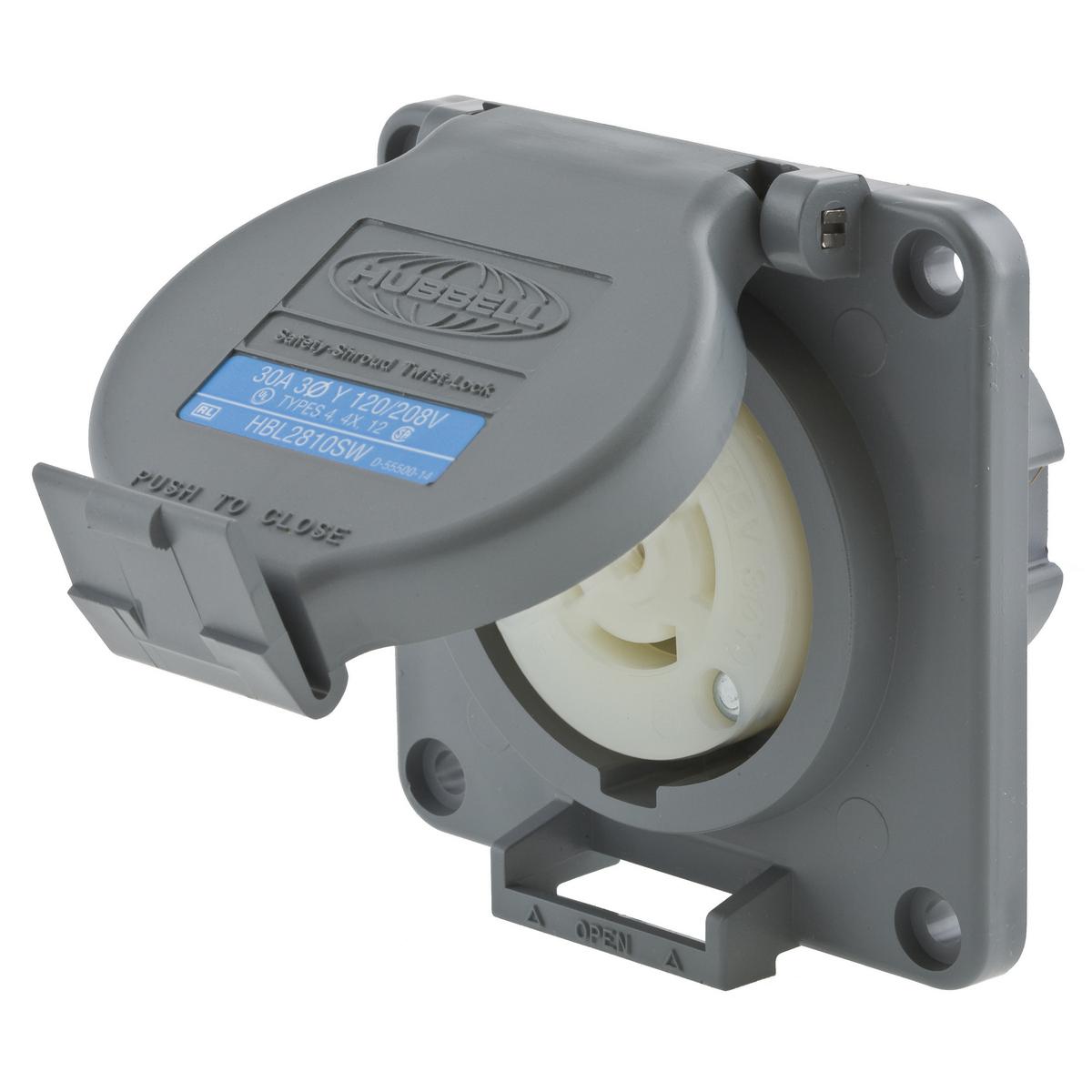

Wiring Device-Kellems HBL2810SW
Wiring Device-Kellems Safety-Shroud® Twist-Lock® HBL2810SW 3-Phase Heavy Duty Flanged Grounding Standard Single Watertight Screw Mount Locking Receptacle, 120Y/208 VAC, 30 A, 4 Poles, 5 Wires, Gray/White
- Manufacturer Name: Hubbell
- MPN: HBL2810SW
- Brand Name: Wiring Device-Kellems
- UPC: 783585232065
- FEPN: HBL2810SW HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Safety-Shroud® Twist-Lock® Locking Receptacle, 3-Phase Heavy Duty Flanged Grounding Standard Single Watertight Screw Mount, 120Y/208 VAC, 30 A, 3 hp, 4 Pole, 5 Wires, L21-30R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Thermoplastic, Gray/White, 3.75 x 3.75 x 2.91 in
| Dimensions | : | 3.75 x 3.75 x 2.91 in |
| Enclosure | : | IP20 |
| Grade | : | Industrial |
| Horsepower | : | 3 hp |
| Material | : | Thermoplastic |
| NEMA Rating | : | L21-30R |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | 3-Phase Heavy Duty Flanged Grounding Standard Single Watertight Screw Mount |
| Voltage Rating | : | 120Y/208 VAC |
| Amperage Rating | : | 30 A |
| Number of Poles | : | 4 |
| Number of Wires | : | 5 |
| Color | : | Gray/White |
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
- Shrouded watertight construction
- UL type 4X environmental seal while in use and when closed
