Wiring Device-Kellems HBL2315

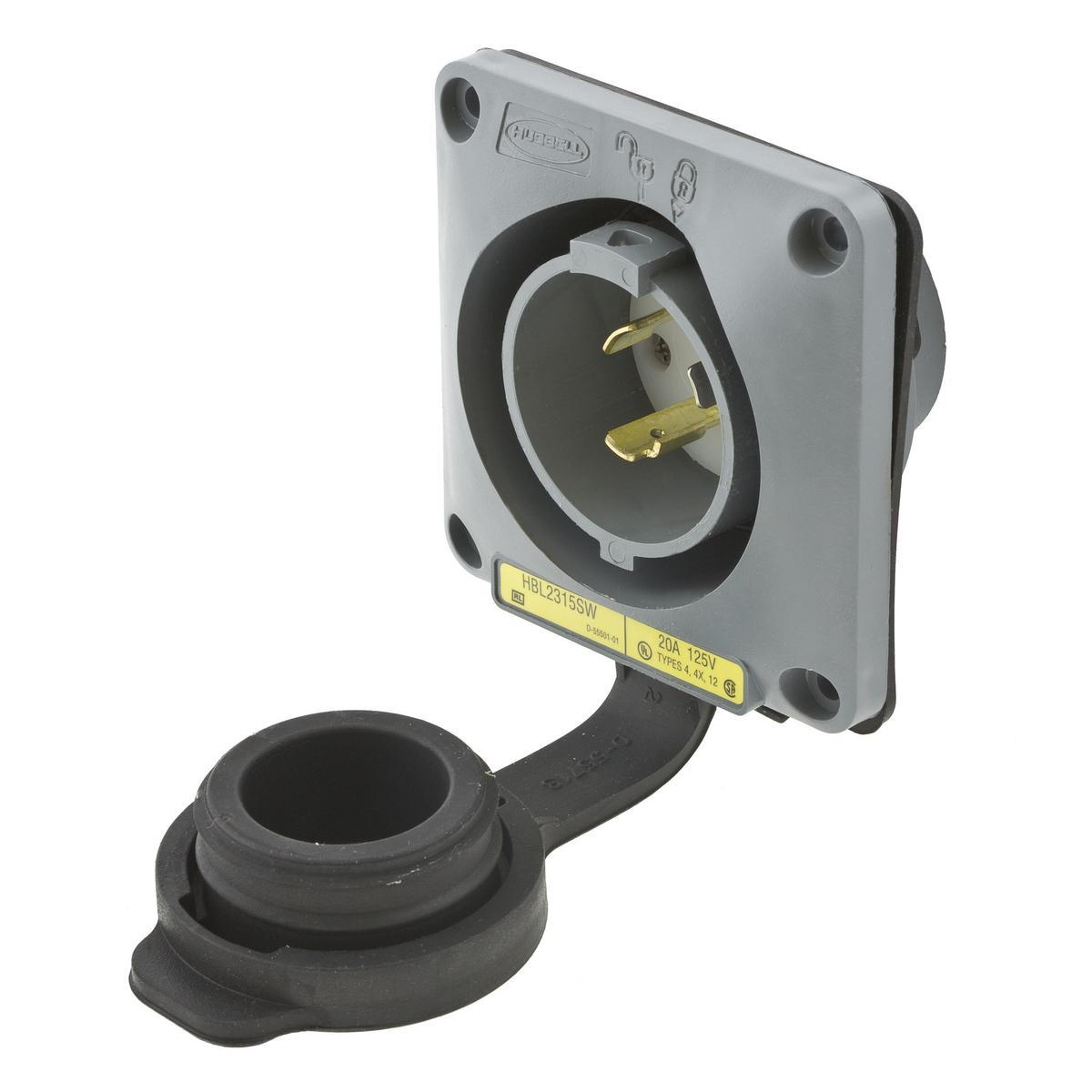

Wiring Device-Kellems HBL2315 HBL® 1-Phase Extra Heavy Duty Grounding Screw Mount Locking Flanged Inlet, 125 VAC, 20 A, 2 Poles, 3 Wires, White
- Manufacturer Name: Hubbell
- MPN: HBL2315
- Brand Name: Wiring Device-Kellems
- UPC: 783585037783
- FEPN: HBL2315 HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Hubbell® Insulgrip® plugs and connectors continue our long standing tradition of leadership as well as innovative design. The tough nylon body provides impact and chemical resistance commonly needed in the entertainment industry. The durable and powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals. Its these and many other features that set Hubbell® performance above all others.
Wiring Device-Kellems, HBL2315, Locking Flanged Inlet, 1-Phase Extra Heavy Duty Grounding Screw Mount, Series: HBL®, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, L5-20P NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP44 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, White, 2.88 x 2.88 x 2.09 in Dimensions
| Dimensions | : | 2.88 x 2.88 x 2.09 in |
| Enclosure | : | NEMA 4/4X/12/IP44 |
| Grade | : | Industrial |
| Horsepower | : | 1 hp |
| Material | : | Nylon |
| NEMA Rating | : | L5-20P |
| Series | : | HBL® |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | 1-Phase Extra Heavy Duty Grounding Screw Mount |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 20 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | White |
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
