IDEAL® 46-310

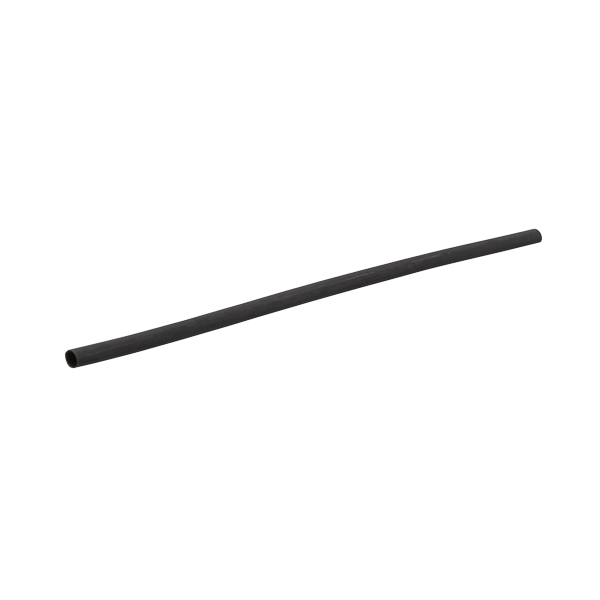

IDEAL® Thermo-Shrink® 46-310 Economy Heat Shrink Tubing, 0.146 in ID Expanded, 0.063 in ID Recovered, 0.017 in THK Wall Recovered, 6 in L, Polyolefin, Black
- Manufacturer Name: Ideal Industries
- MPN: 46-310
- Brand Name: IDEAL®
- UPC: 783250463107
- FEPN: 46-310 II
- Min Order Qty: 1
- Quantity Interval: 20
-
Inventory Availability
-
Retail Price:
IDEAL® Thermo-Shrink® Heat Shrink Tubing, Economy, 600 VAC, 0.146 in ID Expanded, 0.063 in ID Recovered, Thin Wall, 0.017 in Wall Thickness Recovered, 24 to 20 AWG Wire, 2:1 Shrink Ratio, 6 in Length, -55 to 125 deg C, 70 deg C Shrink, Polyolefin, Black
| Shrink Ratio | : | 2:1 |
| Shrink Temperature | : | 70 deg C |
| Temperature Rating | : | -55 to 125 deg C |
| Type | : | Economy |
| Voltage Rating | : | 600 VAC |
| Wall Type | : | Thin |
| Wire Size | : | 24 to 20 AWG |
| Inner Diameter Expanded | : | 0.146 in |
| Inner Diameter Recovered | : | 0.063 in |
| Wall Thickness Recovered | : | 0.017 in |
| Length | : | 6 in |
| Material | : | Polyolefin |
| Color | : | Black |
- Polyolefin material electrically insulates and protects inline components, disconnect terminals and splices with its high strength and excellent resilience
- Use to bundle wires for very flexible light duty harnesses
- It has highly flame-retardant property to resist electric shock and is flexible for convenient operation
- Resistant to common fluids and solvents
- 14 Mpa tensile strength and 20 kV/mil dielectric strength
- It can be elongated up to 350 Percent of the original size after aging at 175 deg C for about 168 hr
- 30 Percent eccentricity
- +/-5 Percent longitudinal shrinkage
- 1/8 in normal
- No PBBs and PBBEs
RoHS
