Wiring Device-Kellems 520SC
Send Print
  1. pin-int

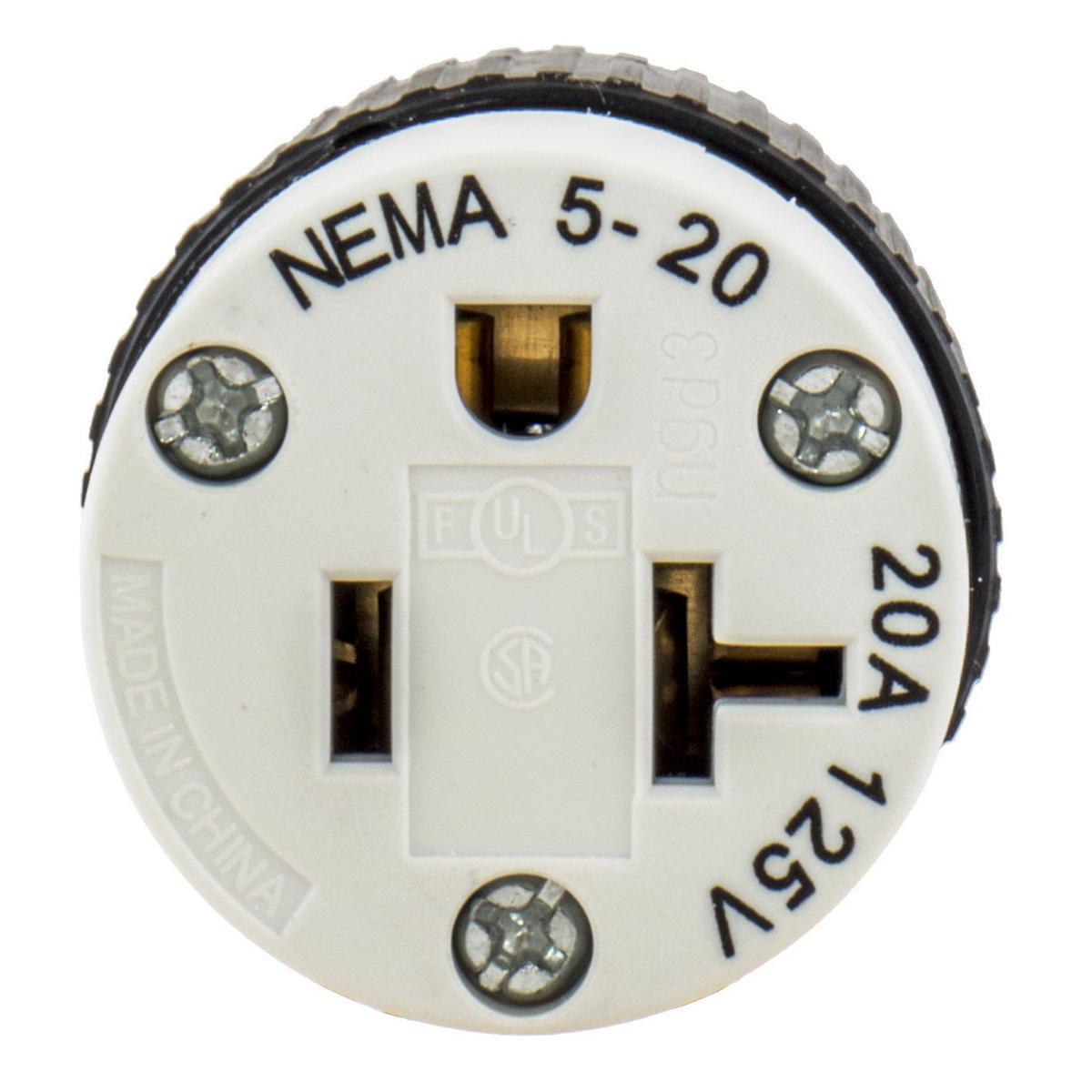

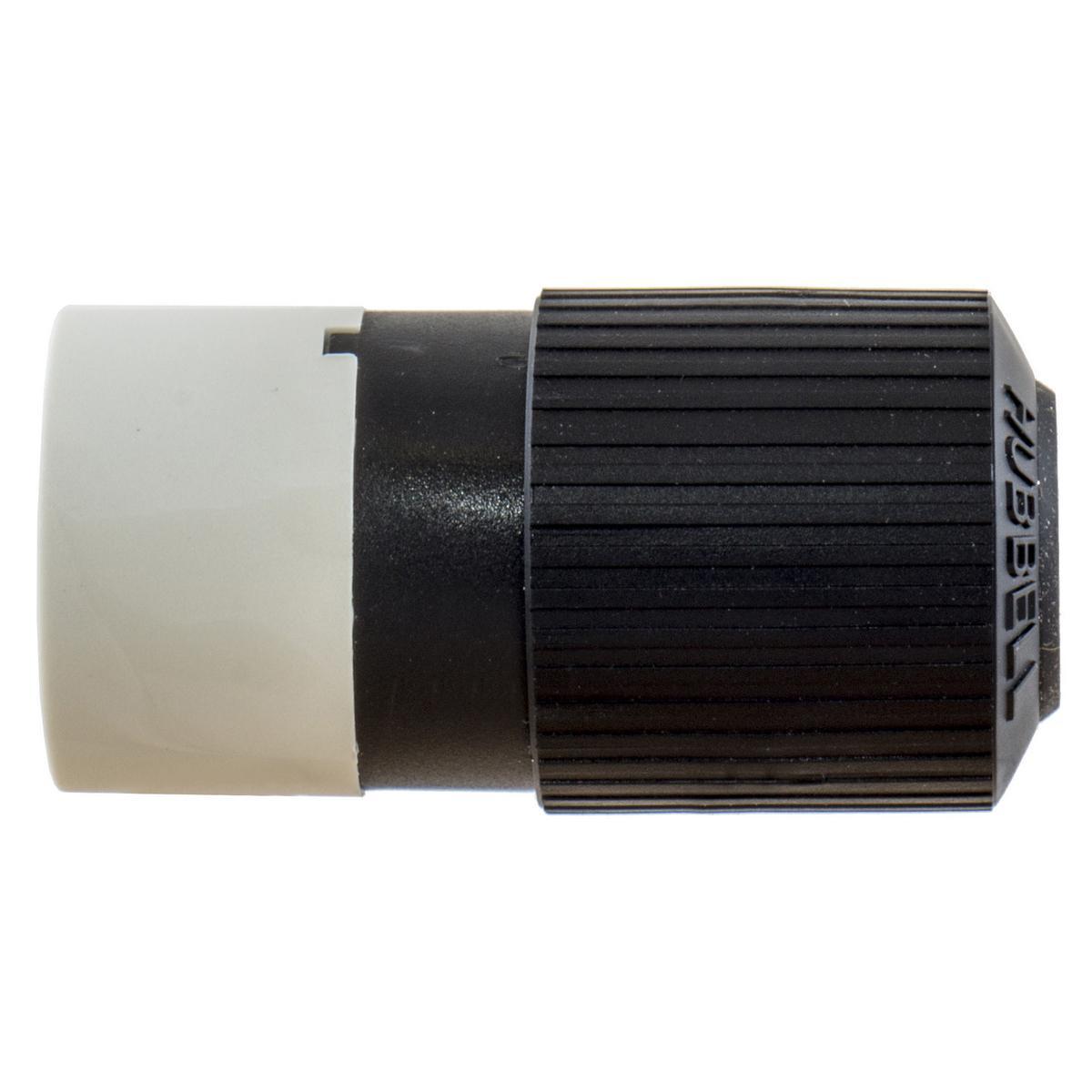

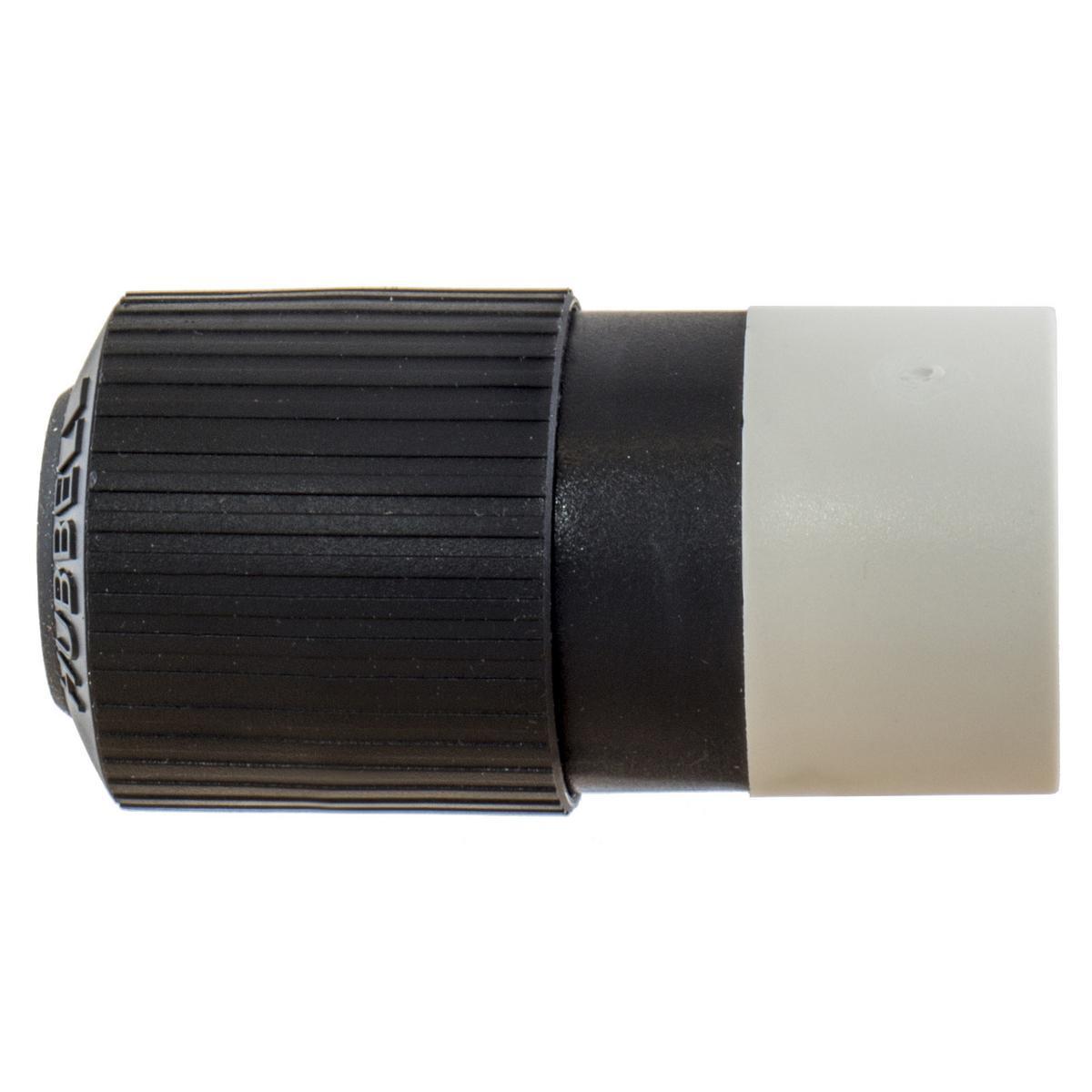

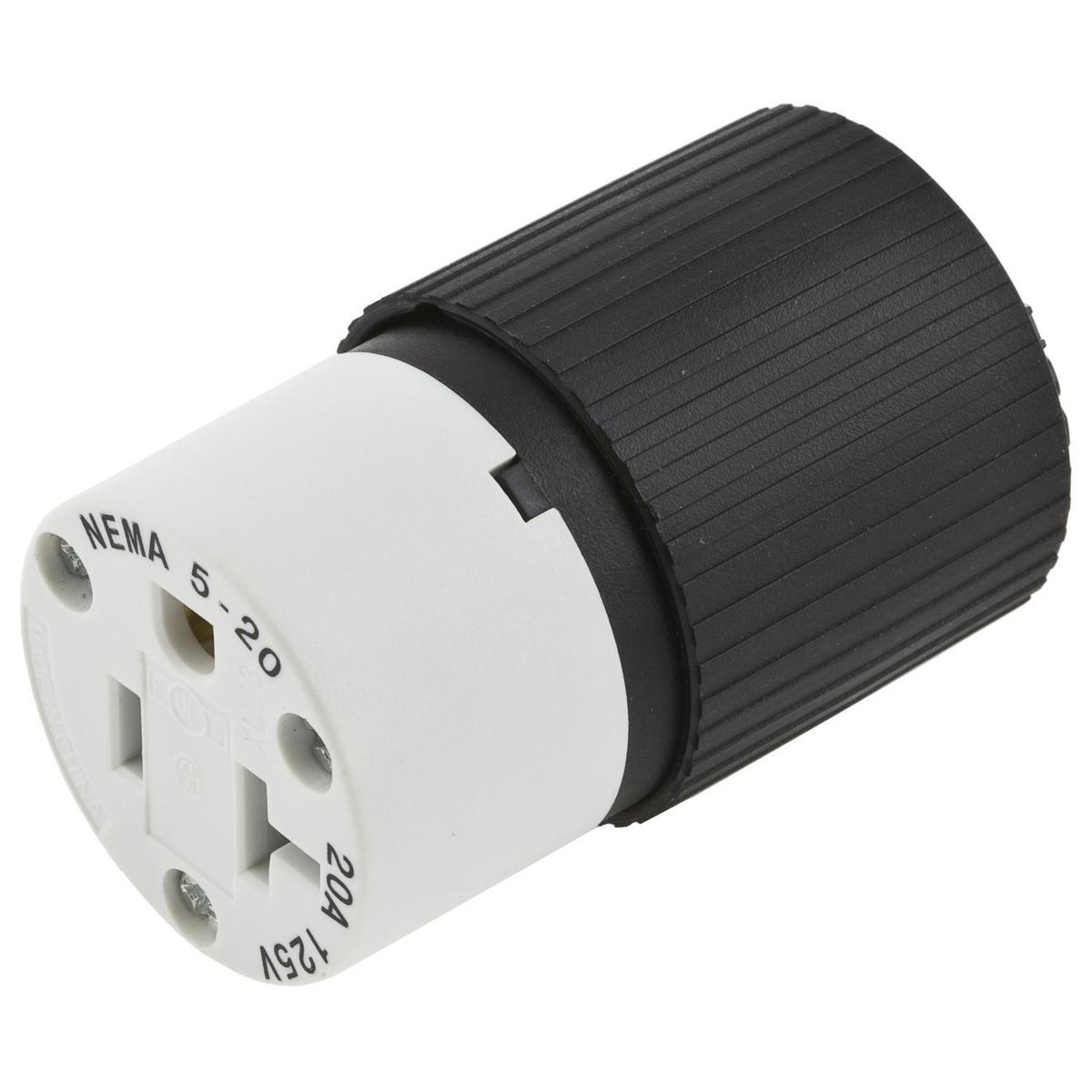

Wiring Device-Kellems 520SC

Wiring Device-Kellems 520SC Straight Body Straight Blade Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Black/White

  • Manufacturer Name: Hubbell
  • MPN: 520SC
  • Brand Name: Wiring Device-Kellems
  • UPC: 783585331591
  • FEPN: 520SC HW
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Wiring Device-Kellems Straight Blade Connector, Straight Body, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R, Commercial/Industrial Grade, 0.3 to 0.655 in Diameter Cord, -40 to 75 deg C, Threaded Terminal, Composite, Black/White

Cord Diameter       :      0.3 to 0.655 in
Grade       :      Commercial/Industrial
Material       :      Composite
NEMA Rating       :      NEMA 5-20R
Temperature Rating       :      -40 to 75 deg C
Terminal Type       :      Threaded
Type       :      Straight Body
Voltage Rating       :      125 VAC
Amperage Rating       :      20 A
Number of Poles       :      2
Number of Wires       :      3
Color       :      Black/White
  • Nylon construction, visible NEMA ratings, insulated body, cord mounted
  • Indoor dry unless protected by additional means environmental conditions
  • 75 deg C minimum continuous, -40 deg C without impact, -25 deg C with impact maximum continuous temperature
  • 14 to 12 AWG conductor range
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device-Kellems_515SC_Specification_Sheet.pdf
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device-Kellems_520SC_Line_Drawing.pdf
