Shrink-Kon® HS6-1-4

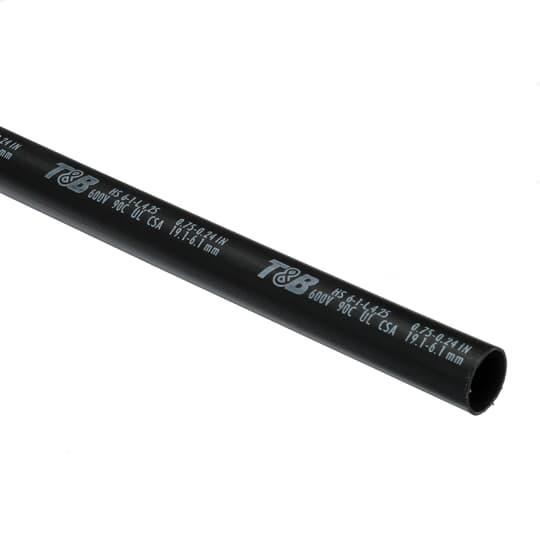

Shrink-Kon® HS6-1-4 Heat Shrink Tubing With Thermoplastic Adhesive Liner, 3/4 in ID Expanded, 0.24 in ID Recovered, 0.09 in THK Wall Recovered, 48 in L, Polyolefin, Black
- Manufacturer Name: ABB
- MPN: HS6-1-4
- Brand Name: Shrink-Kon®
- UPC: 786210890661
- FEPN: HS6-1-4 TB
- Min Order Qty: 1
- Quantity Interval: 5
-
Inventory Availability
-
Retail Price:

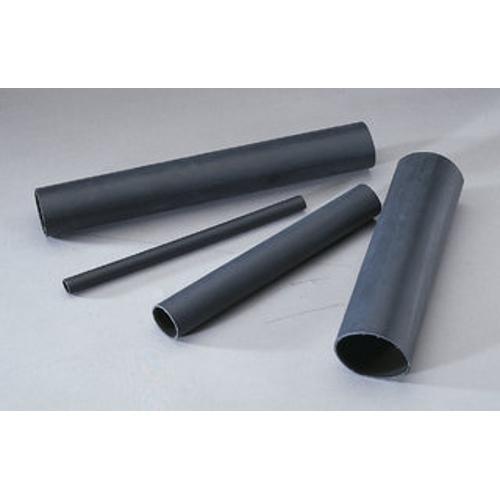

When it comes to moisture proofing connections and terminations, T&B® heat shrinkable tubing, boots and end caps have proven themselves over years of service to the industry. Made of thermally stabilized cross linked polyolefin, these heat shrinkable insulators can be used over lead, steel, aluminum, copper, standard plastic and elastomeric insulating materials.
Shrink-Kon® Heat Shrink Tubing, Series: HS Series, 600 V AC, 3/4 in Inner Dia Expanded, 0.24 in Inner Dia Recovered, Heavy Duty Wall, 0.09 in Wall Thickness Recovered, 6 to 2 AWG Wire, 3:1 Shrink, 48 in Length, -55 to 110 deg C, 120 deg C Shrink, Polyolefin, Black
| Series | : | HS Series |
| Shrink Ratio | : | 3:1 |
| Shrink Temperature | : | 120 deg C |
| Temperature Rating | : | -55 to 110 deg C |
| Voltage Rating | : | 600 V AC |
| Wall Type | : | Heavy Duty |
| Wire Size | : | 6 to 2 AWG |
| Inner Diameter Expanded | : | 3/4 in |
| Inner Diameter Recovered | : | 0.24 in |
| Wall Thickness Recovered | : | 0.09 in |
| Length | : | 48 in |
| Material | : | Polyolefin |
| Color | : | Black |
- Made of thermally stabilized cross linked polyolefin, enabling a recovered wall thickness greater than that of the cable jacket replaced
- Withstands severe mechanical requirements of URD, submersible and direct burial installations
- Tubing, featuring an internally applied sealant, offers protection against moisture and may be used over lead, steel, aluminum, copper, standard plastic and elastomeric insulating materials
- High impact, abrasion, corrosion and chemical-resistant
- Thermoplastic adhesive liner provides complete environmental protection and insulation
Specification Sheet
