EATON BAB3030H

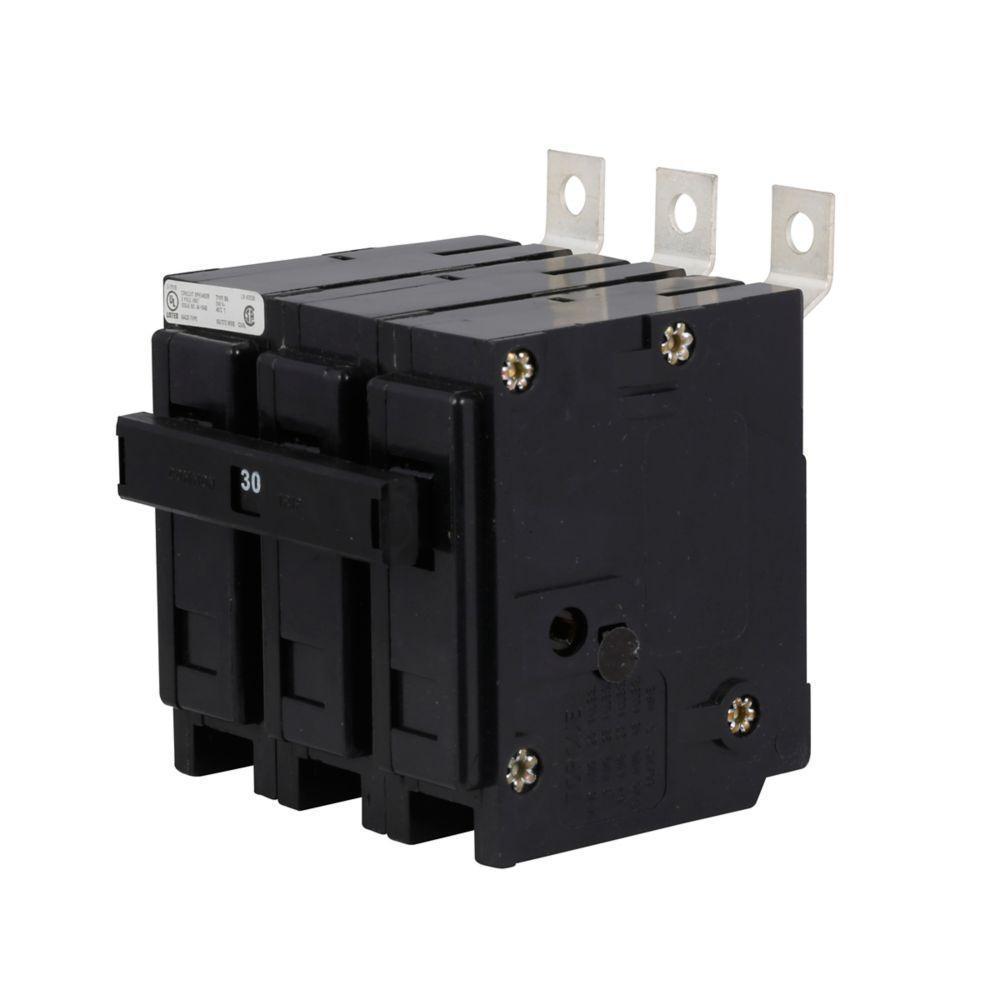

EATON QuickLag® BAB3030H Type BAB Miniature Circuit Breaker, 240 VAC, 30 A, 10 kA Interrupt, 3 Poles, Non-Interchangeable Trip
- Manufacturer Name: Eaton
- MPN: BAB3030H
- Brand Name: EATON
- UPC: 786679303306
- FEPN: BAB3030H EC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
EATON bolt-on miniature circuit breakers offer superior protection for panel boards. They are also switching duty rated for 120 VAC fluorescent light applications. Easy to securely install. Choose from 1, 2 or 3-pole designs. Built and listed to UL 489. All products 15 to 100 A are HACR rated. Choose from bolt-on types BAB, QBHW, HBAX and HBAW.
EATON QuickLag® Miniature Circuit Breaker, Type BAB, 240 VAC, 30 A, 10 kA Interrupt, Non-Interchangeable Trip, 3 Pole, Extended Tang Line/Box Lug Load, 14 to 4 AWG Wire, Bolt-On Mount, 40 deg C, 3.3 x 2.9 x 2.9 in
| Connection Type | : | Extended Tang Line/Box Lug Load |
| Dimensions | : | 3.3 x 2.9 x 2.9 in |
| Mounting Type | : | Bolt-On |
| Temperature Rating | : | 40 deg C |
| Type | : | Type BAB |
| Wire Size | : | 14 to 4 AWG |
| Voltage Rating | : | 240 VAC |
| Amperage Rating | : | 30 A |
| Interrupt Rating | : | 10 kA |
| Number of Poles | : | 3 |
| Trip Type | : | Non-Interchangeable |
- Flexible power feed connection
- Field mountable accessories make installations and on-site custom configuration easy
