Panduit® LCA350-12-X
Panduit® Pan-Lug™ LCA350-12-X 1-Hole Compression Connector Lug, 350 kcmil Stranded Copper Conductor, Die Code: P71, 1/2 in Stud, Tin Plated Copper
- Manufacturer Name: Panduit
- MPN: LCA350-12-X
- Brand Name: Panduit®
- UPC: 074983900558
- FEPN: LCA350-12-X PC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:

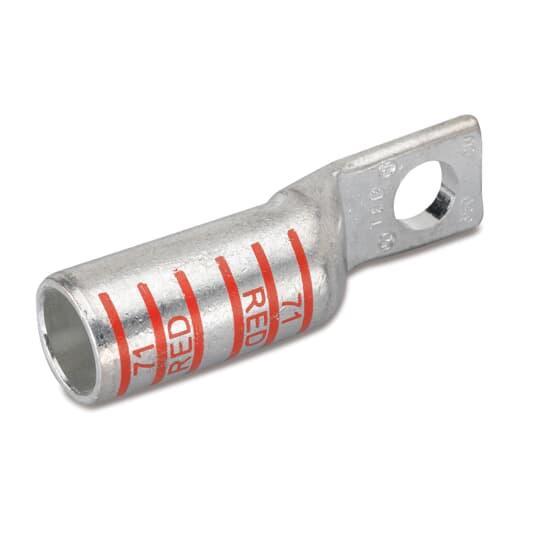

The LCA350-12-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection.

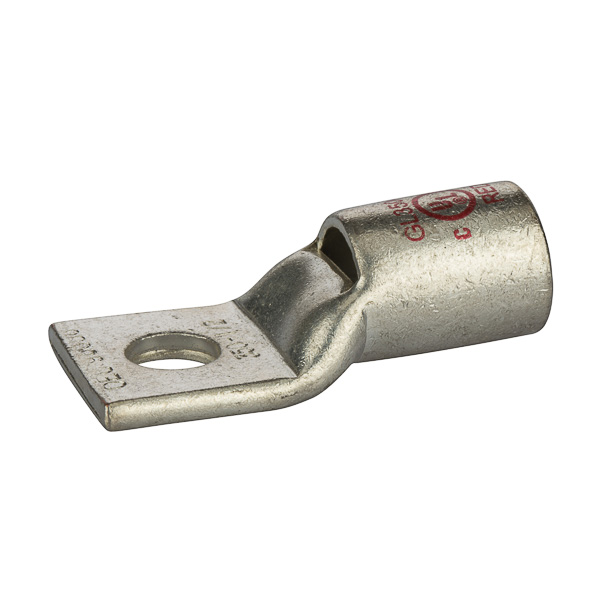

Panduit® Pan-Lug™ Compression Connector Lug, 1-Hole, Series: LCA, Stranded Copper Conductor, 350 kcmil Conductor, Die Code: P71, 35 kV, 1/2 in Stud, Straight Tongue, 1.28 in W x 0.17 in THK Tongue, 3.09 in Overall Length, Standard Barrel, 0.7 in ID x 0.88 in OD x 1.44 in L Barrel, 1-1/2 in L Wire Strip, 90 deg C, 1-1/2 in Mounting Hole, Tin Plated Copper, Red
| Barrel Size | : | 0.7 in ID x 0.88 in OD x 1.44 in L |
| Barrel Type | : | Standard/Inspection Window |
| Color | : | Red |
| Mounting Hole Size | : | 1-1/2 in |
| Overall Length | : | 3.09 in |
| Series | : | LCA |
| Specifications | : | 1-1/2 in L Wire Strip |
| Temperature Rating | : | 90 deg C |
| Tongue Size | : | 1.28 in W x 0.17 in THK |
| Tongue Type | : | Straight |
| Type | : | 1-Hole |
| Voltage Rating | : | 35 kV |
| Conductor Size | : | 350 kcmil |
| Conductor Type | : | Stranded Copper |
| Die Code | : | P71 |
| Stud Size | : | 1/2 in |
| Material | : | Tin Plated Copper |
- Straight tongue angle
- An inspection window aids to visually assure full conductor insertion and the tin-plate material helps to inhibit corrosion
- Color-coded barrelS marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- Tin plated to inhibit corrosion
- For use with stranded copper conductor
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
