Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

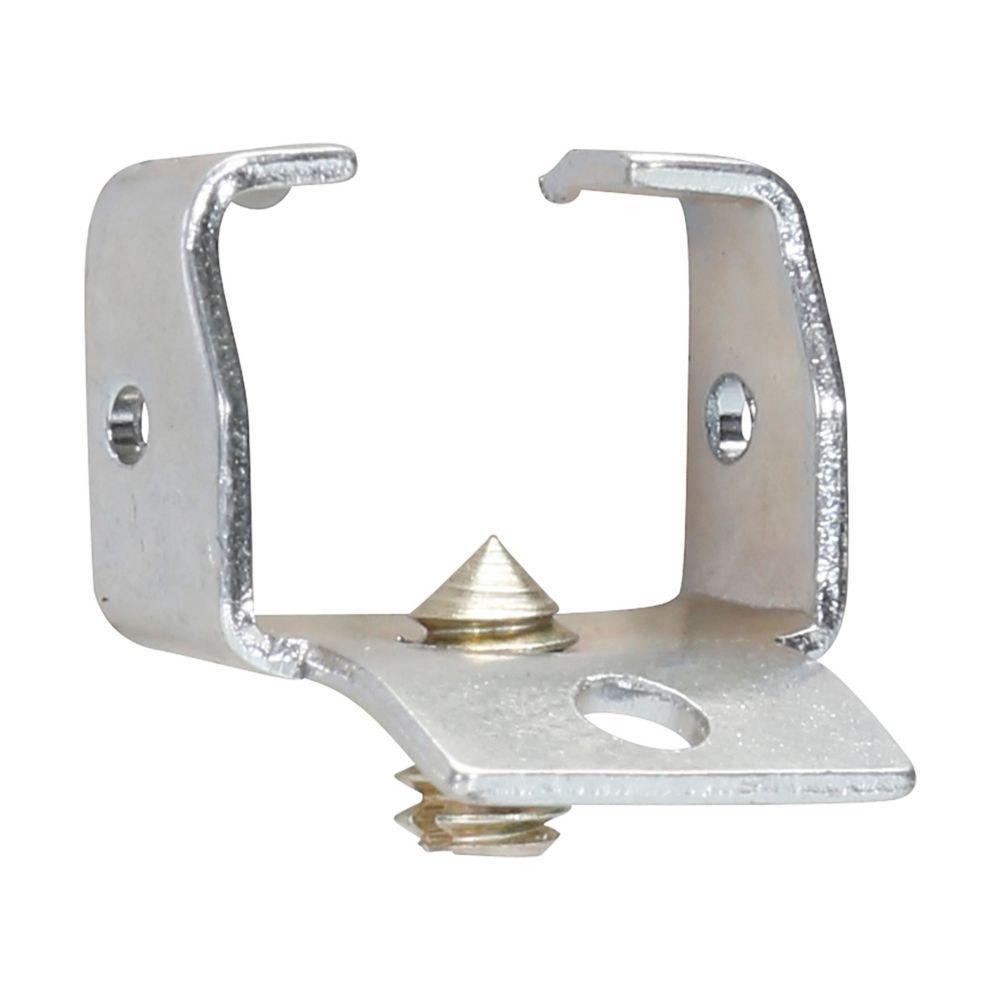

EATON Handle Lock, 1/3 Pole, For Use With: Type BR Circuit Breaker and Loadcenter, 1 in Size, 1 in L x 1 in W x 0.1 in H Dimensions
| Dimensions | : | 1 in L x 1 in W x 0.1 in H |
| Size | : | 1 in |
| Number of Poles | : | 1/3 |
| Suitable For Use With | : | Type BR Circuit Breaker and Load Center |
- Uses a padlock to lock the circuit breakers handle in the ON-OFF position
- Lock/lock dog/lockoff
Instruction/Installation Manual
