Wiring Device-Kellems RRD15W

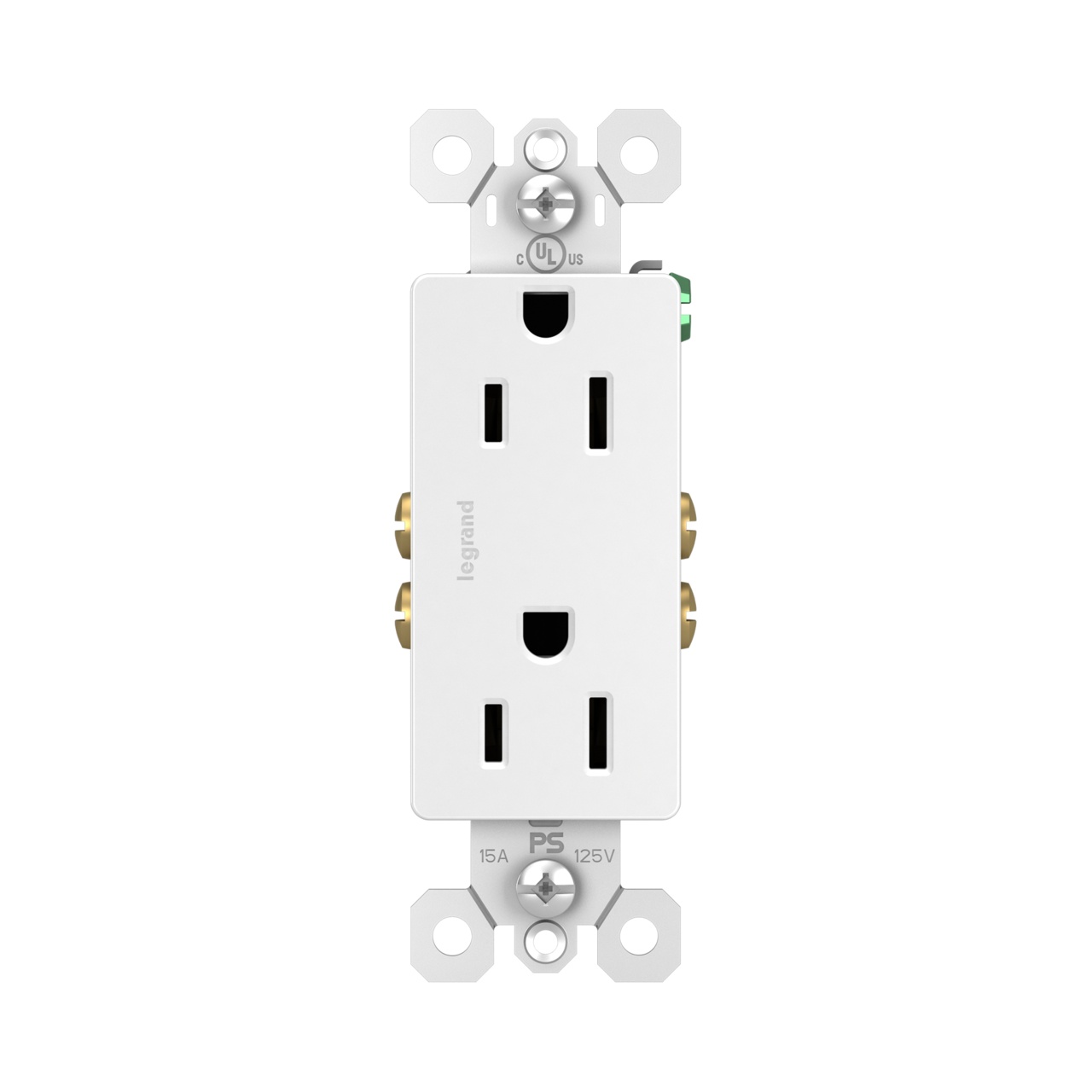

Wiring Device-Kellems RRD15W 1-Phase Decorator Duplex Standard Screw Mount Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
- Manufacturer Name: Hubbell
- MPN: RRD15W
- Brand Name: Wiring Device-Kellems
- UPC: 883778100116
- FEPN: RRD15W HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems, RRD15W, Straight Blade Receptacle, 1-Phase Decorator Duplex Standard Screw Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Residential Grade, -20 to 60 deg C, Push-In/Side Wire Terminal, Thermoplastic, White, 4.19 in H x 1.52 in W Dimensions
| Dimensions | : | 4.19 in H x 1.52 in W |
| Grade | : | Residential |
| Horsepower | : | 1/2 hp |
| Material | : | Thermoplastic |
| NEMA Rating | : | 5-15R |
| Temperature Rating | : | -20 to 60 deg C |
| Terminal Type | : | Push-In/Side Wire |
| Type | : | 1-Phase Decorator Duplex Standard Screw Mount |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 15 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | White |
- Self-grounding feature is standard
- 14 to 12 AWG wire size
- Multiple drive slot/Phillips/Robertson head screws
- Tamper and weather resistant availability
- Hi-visibility yellow base for easy installation
- Indoor dry unless protected by additional means
- Nightlight version is available
