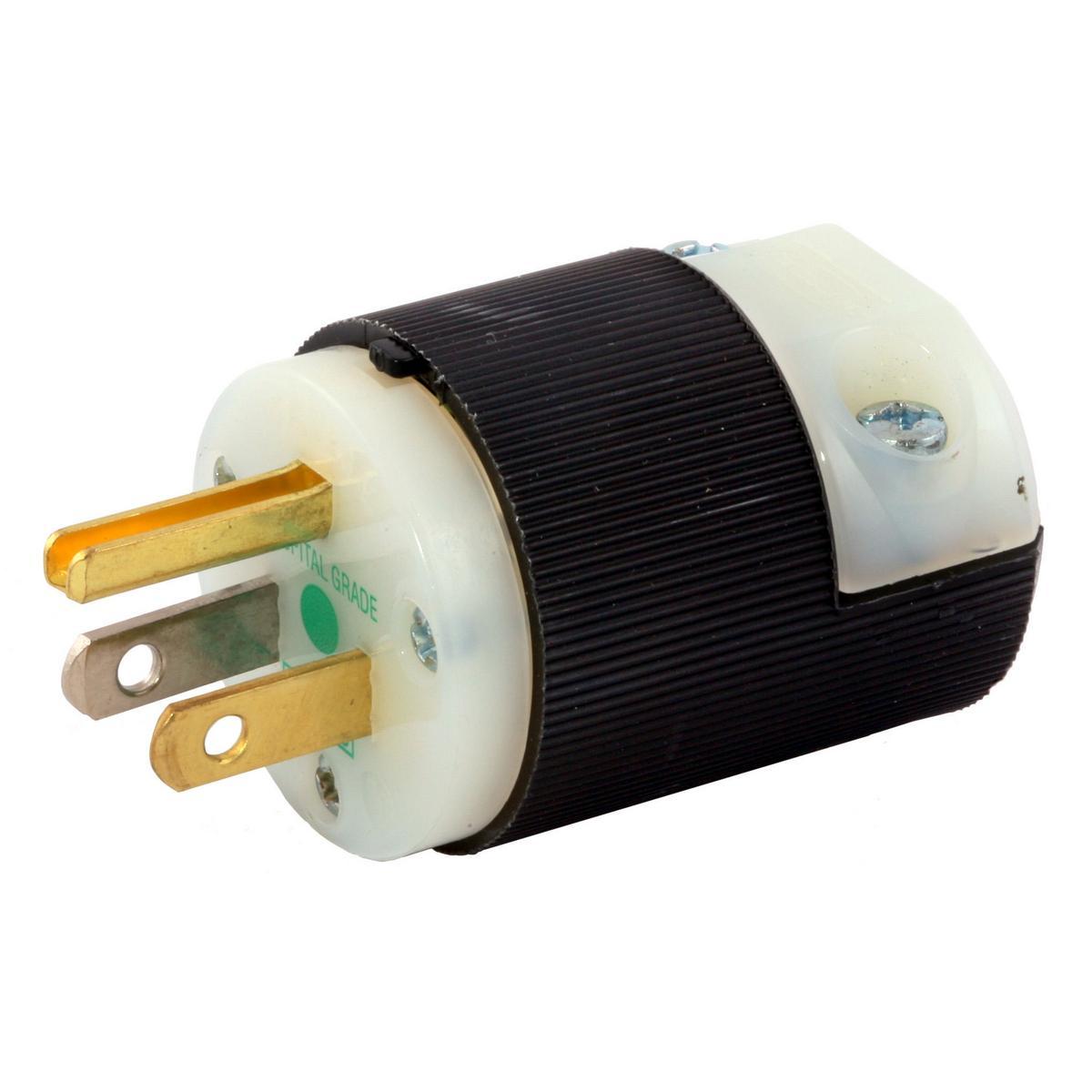

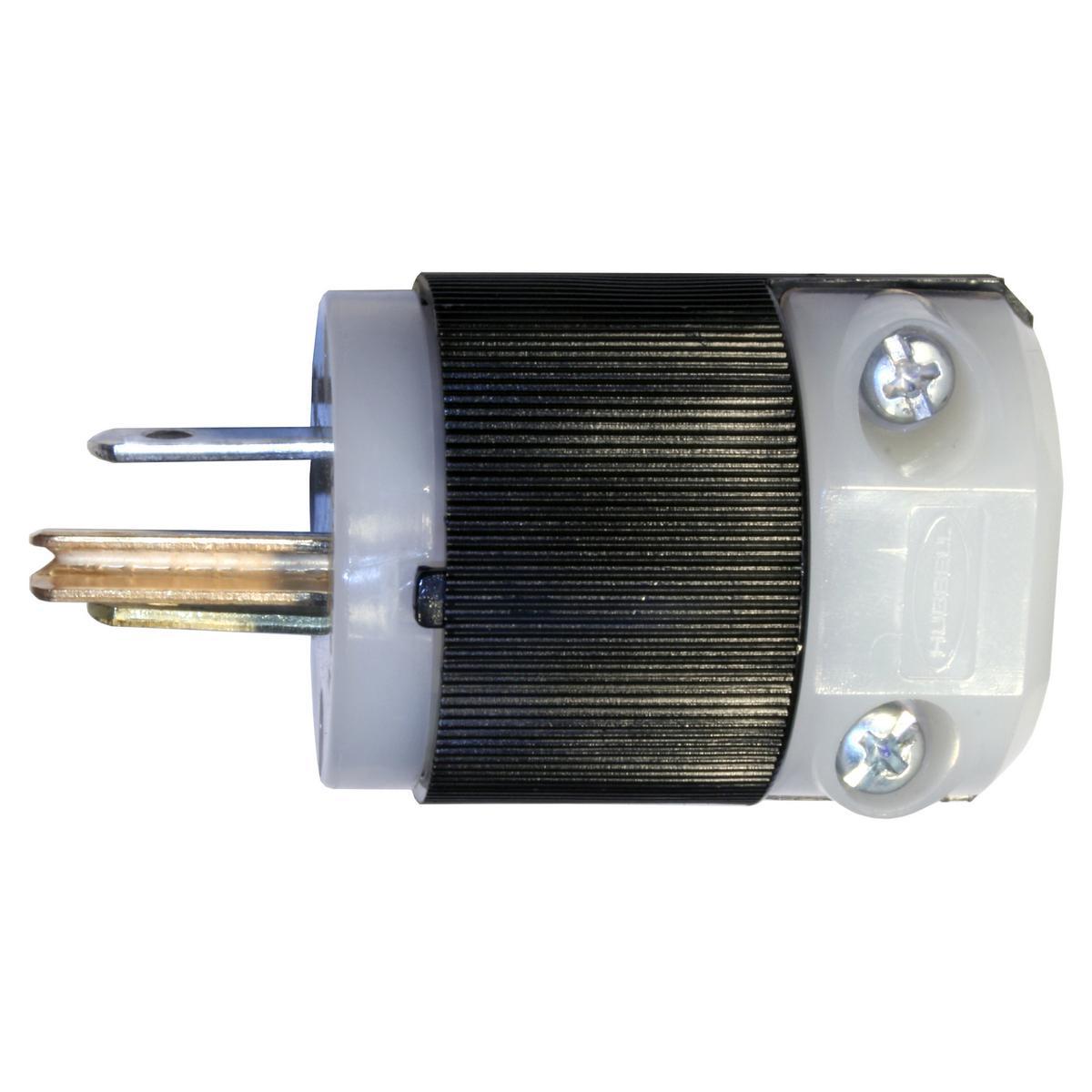

Wiring Device-Kellems HBL8215C
Wiring Device-Kellems HBL8215C 1-Phase Grounding Male Standard Cord Mount Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/White
- Manufacturer Name: Hubbell
- MPN: HBL8215C
- Brand Name: Wiring Device-Kellems
- UPC: 783585179209
- FEPN: HBL8215C HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems, HBL8215C, Straight Blade Plug, 1-Phase Grounding Male Standard Cord Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15P NEMA Rating, Hospital Grade, IP20 Enclosure, 0.23 to 0.72 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 1.97 x 1.53 x 1.53 in Dimensions
| Cord Diameter | : | 0.23 to 0.72 in |
| Dimensions | : | 1.97 x 1.53 x 1.53 in |
| Enclosure | : | IP20 |
| Grade | : | Hospital |
| Horsepower | : | 1/2 hp |
| Material | : | Nylon |
| NEMA Rating | : | 5-15P |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | 1-Phase Grounding Male Standard Cord Mount |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 15 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Black/White |
- Beveled housing prevents snagging
- Powerful, offsetting cord grips clamp on individual conductors
