EATON E34 Series 30.5 mm pushbutton line features the same rugged die cast construction of our 10250T line with an additional 2-layer 100% solid thermosetting cathodic epoxy coating. This coating provides a flat black smooth, consistent, corrosion-resistant surface that has passed a demanding 600 hr salt spray test. (the industry standard for this 4X test requires only 200 hr).

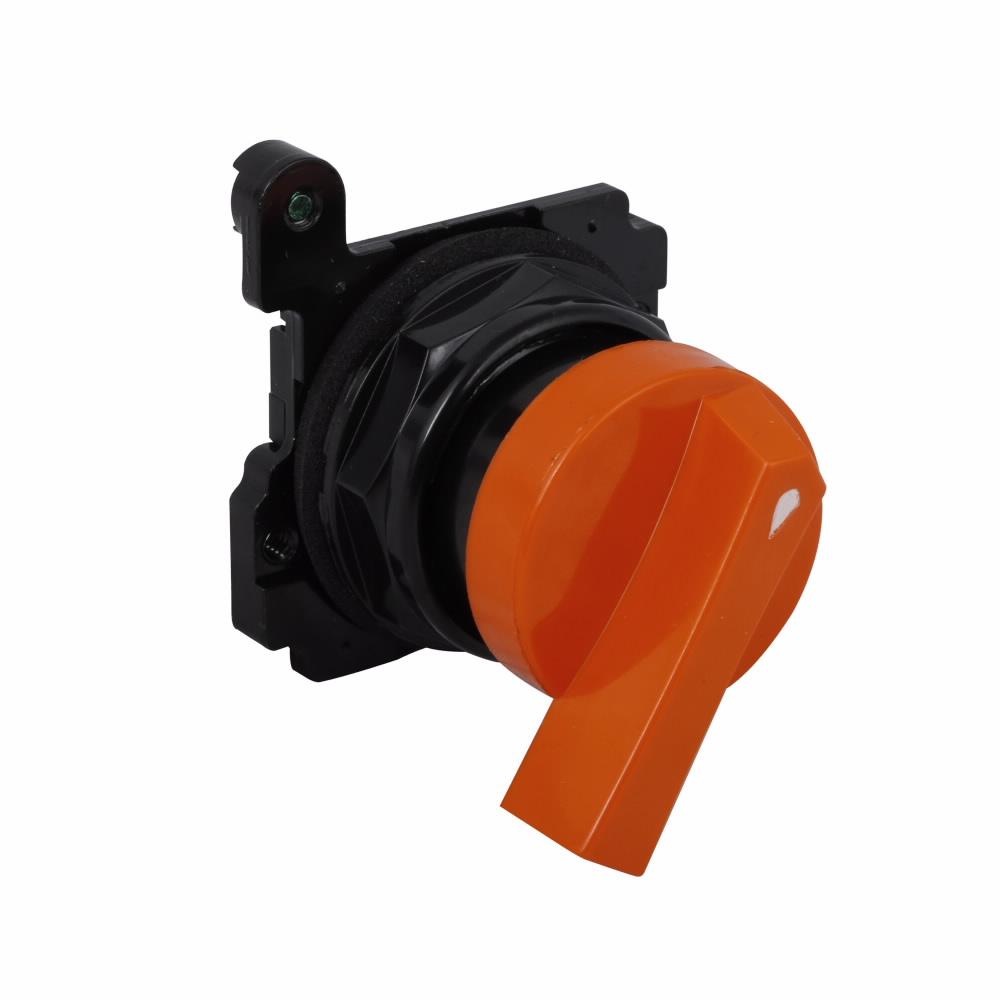

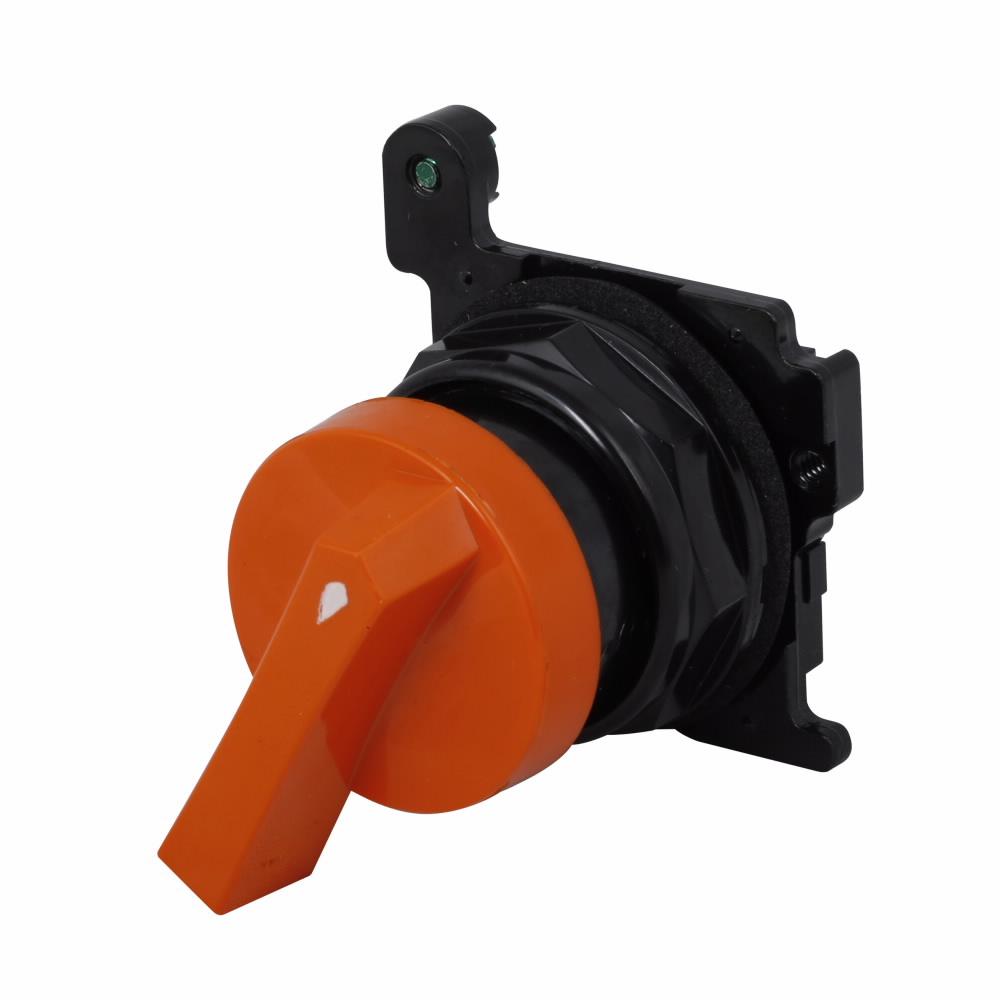

EATON Selector Switch Operator, Corrosion-Resistant, Series: E34, 30.5 mm Size, Maintained Contact Mode, Lever Operator, 2 Positions, 60 deg Throw, Cam Code: 1, 120 VAC, NEMA 3/3R/4/4X/12/13 Enclosure, Screw Terminal, Bezel/Housing: Die Cast, 1 to 150 deg F, Epoxy Coated, Black
| Bezel/Housing | : | Die Cast |
| Cam Code | : | 1 |
| Contact Mode | : | Maintained |
| Enclosure Type | : | NEMA 3/3R/4/4X/12/13 |
| Finish | : | Epoxy Coated |
| Series | : | E34 |
| Temperature Rating | : | 1 to 150 deg F |
| Terminal Type | : | Screw |
| Throw | : | 60 deg |
| Type | : | Corrosion-Resistant |
| Voltage Rating | : | 120 VAC |
| Size | : | 30.5 mm |
| Operator Type | : | Lever |
| Number of Positions | : | 2 |
| Color | : | Black |
- Epoxy coated metal operators
- Integral ground screw terminal on operators
- FDA approved for sanitary chemical resistance requirements
- Without knob or lever
