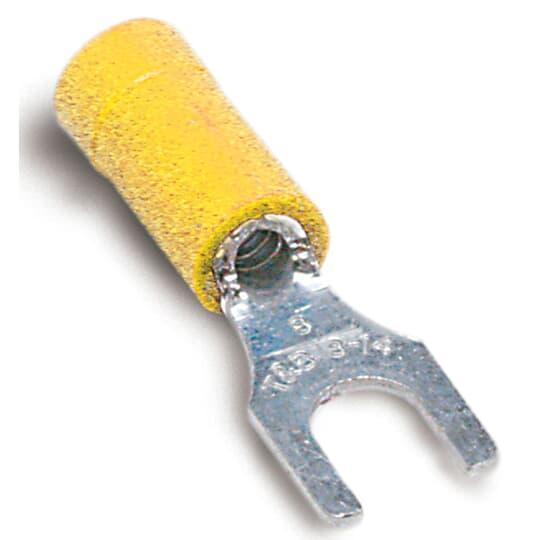

Sta-Kon® KV10-10F-D
Spec-Kon® KV10-10F-D Fork Terminal, 12 to 10 AWG Conductor, 1.004 in L, Brazed Seam/Funnel Entry/Internal Serration Barrel, Copper, Yellow
- Manufacturer Name: ABB
- MPN: KV10-10F-D
- Brand Name: Sta-Kon®
- UPC: 786210100319
- FEPN: KV10-10F-D TB
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Spec-Kon® Fork Terminal, Series: K Series, 12 to 10 AWG Conductor, #10 Stud, 1.004 in Length, Brazed Seam/Funnel Entry/Internal Serration Barrel, 0.252 in ID x 0.512 in L Barrel, Fork Tongue, 0.354 in W x 0.039 in THK Tongue, 600 V, Specifications: 0.276 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electro-Tin Plated, Yellow
| Barrel Size | : | 0.252 in ID x 0.512 in L |
| Finish | : | Electro-Tin Plated |
| Series | : | K Series |
| Specifications | : | 0.276 in Clearance, Vinyl Insulation |
| Stud Size | : | #10 |
| Temperature Rating | : | 105 deg C |
| Tongue Size | : | 0.354 in W x 0.039 in THK |
| Tongue Type | : | Fork |
| Voltage Rating | : | 600 V |
| Conductor Size | : | 12 to 10 AWG |
| Length | : | 1.004 in |
| Barrel Type | : | Brazed Seam/Funnel Entry/Internal Serration |
| Material | : | Copper |
| Color | : | Yellow |
- Molded funnel entry insulator
- Internal barrel serrations
- WT112M, CM2000A recommended tools
Specification Sheet
