T&B® 3870-TB

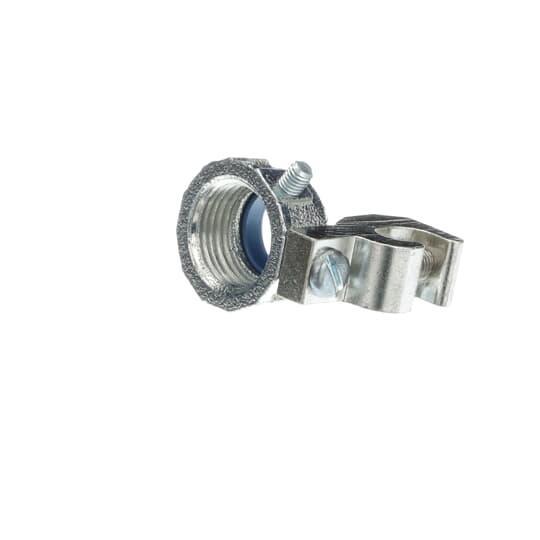

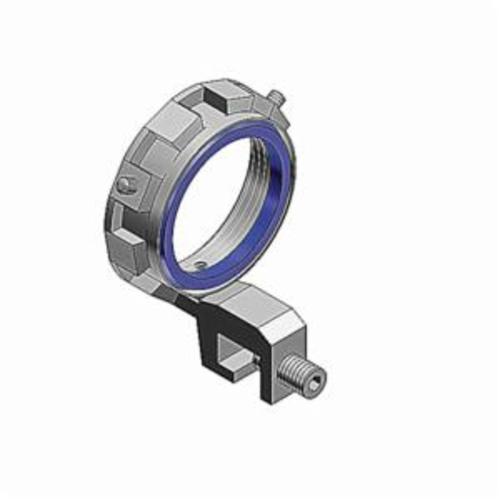

T&B® 3870-TB Insulated Threaded Grounding Bushing With Aluminum Lug, 1/2 in Trade, 14 AWG Wire Min, 4 AWG Wire Max, 1-1/8 in Dia, Malleable Iron
- Manufacturer Name: ABB
- MPN: 3870-TB
- Brand Name: T&B®
- UPC: 786210038704
- FEPN: 3870-TB TB
- Min Order Qty: 1
- Quantity Interval: 50
-
Inventory Availability
-
Retail Price:
T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.
T&B® Grounding Bushing, Insulated Threaded, 1/2 in, 14 AWG Minimum Wire Size, 4 AWG Maximum Wire Size, 0.56 in, Lay-In Lug Type, 1-1/8 in Dia, 0.657 in Height, 1.212 in Turning Radius, Malleable Iron, Electro-Zinc Plated
| Finish | : | Electro-Zinc Plated |
| Height | : | 0.657 in |
| Lug Type | : | Lay-In |
| Throat | : | 0.56 in |
| Turning Radius | : | 1.212 in |
| Type | : | Insulated Threaded |
| Trade Size | : | 1/2 in |
| Minimum Wire Size | : | 14 AWG |
| Maximum Wire Size | : | 4 AWG |
| Diameter | : | 1-1/8 in |
| Material | : | Malleable Iron |
- Thermoplastic insulator for use with Rigid/IMC conduit
- Ease of installation, lay-in lug design
- Cast malleable iron body designed to lock insulator in place within body, reducing common assembly problem resulting in dislodging of insulator
- Insulator rated for 150 deg C/302 deg F application with 94V-0 flammability
- 1.31 in L lug
Instruction/Installation Manual
