The safety switch flex center is a special facility at the site of our Cleveland, Tennessee, plant that is dedicated to providing customized safety switches that meet customer challenging applications.

EATON Safety Switch, Heavy Duty Non-Fusible Single Throw, Series: K Series, 600 VAC, 30 A, 5 hp, 7.5 hp, 10 hp, 20 hp, 30 hp, 1/3 ph, 3 Pole, 3 Wires, 200 kA Short Circuit Current Rating, TPST, Handle Actuator, NEMA 1, Panel Mount, 16.5 in L x 9.12 in W x 8.31 in H, Steel, Painted

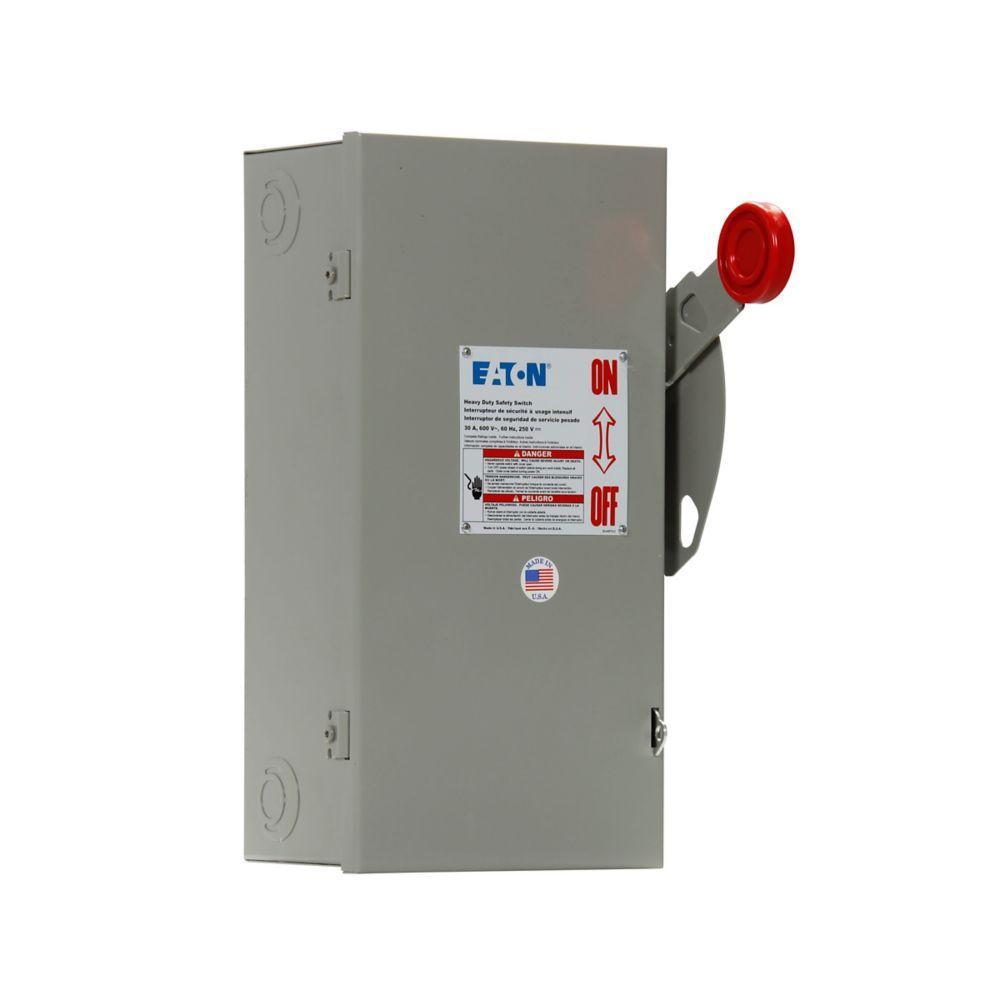

• Clearly visible, palm fitting red handle allows users to easily see the handle position (ON-OFF) from a distance and provides for easy operation
• Two points of contact provide a positive open and close, easier operation and also help prevent contact burning for longer contact life
• Triple padlocking capability increases personnel safety
• Interlocking mechanism keeps the door closed when the handle is in the ON position to maximize safety, although there is a built-in defeater mechanism for user access when necessary

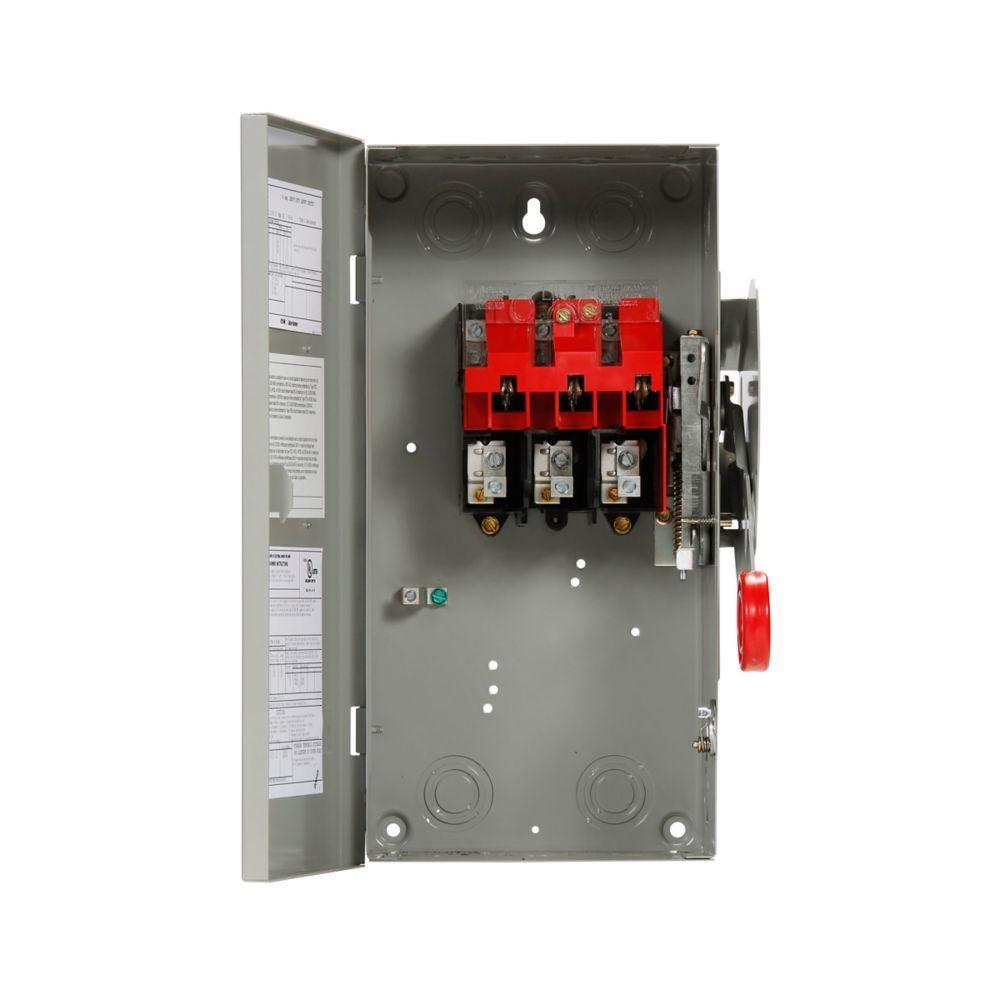

• Clear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shield
• 100% rated device means the switch may be used continuously up to its rated current
• Meets stringent UL 98 standards for safety, durability and reliability
• 7-1/2 hp at 480 VAC/10 hp at 600 VAC TD 1-phase, 10 hp at 240 VAC/20 hp at 480 VAC/30 hp at 600 VAC TD 3-phase, 5 hp at 250 VDC maximum hp rating

• Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_DH321FGKJ_User_Manual.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_DH361UGK_Specification_Sheet.pdf
• VIDEO LINK https://www.youtube.com/watch?v=WyoWF7Jkxjc
