Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.

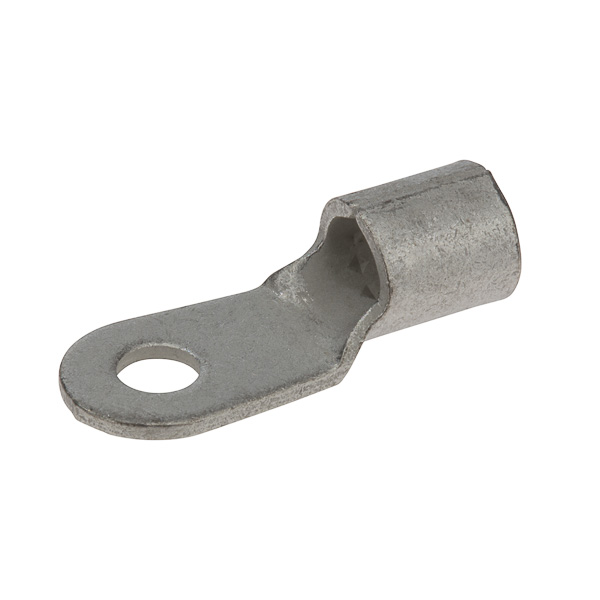

Sta-Kon® Ring Terminal, Non-Insulated, Series: E Series, 6 AWG Conductor, #10 Stud, 1.13 in Length, Brazed Seam/Serrated Barrel, Large Ring Tongue, 0.48 in W x 0.06 in THK Tongue, 600 V AC, 0.36 in Clearance, 150 deg C, Copper, Tin Coated, Metallic
| Finish | : | Tin Coated |
| Series | : | E Series |
| Specifications | : | 0.36 in Clearance |
| Stud Size | : | #10 |
| Temperature Rating | : | 150 deg C |

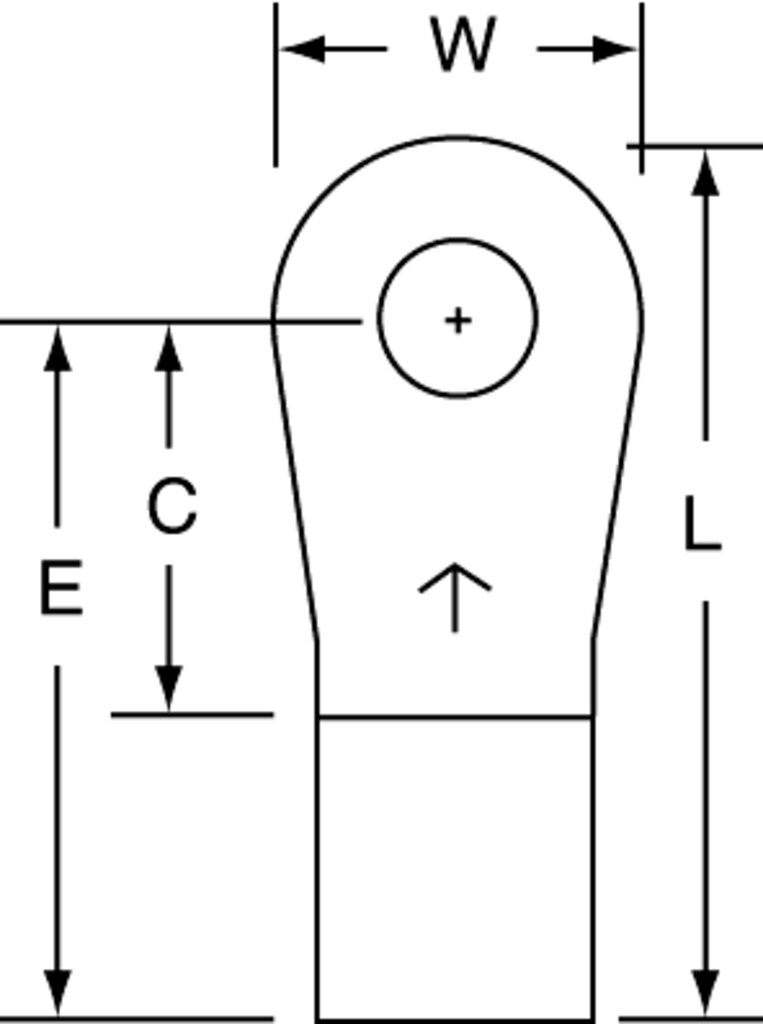

| Tongue Size | : | 0.48 in W x 0.06 in THK |
| Tongue Type | : | Large Ring |
| Type | : | Non-Insulated |
| Voltage Rating | : | 600 V AC |
| Conductor Size | : | 6 AWG |
| Length | : | 1.13 in |
| Barrel Type | : | Brazed Seam/Serrated |
| Material | : | Copper |
| Color | : | Metallic |
- Non-insulated ring terminals are made of electrolytic copper for high conductivity/corrosion resistance
- Can be installed with crimping tools having a single indenter or double indenter (recommended for solid wire)
- Serrated barrel to increases grip-on wire
- 200 pieces/pack
Specification Sheet
