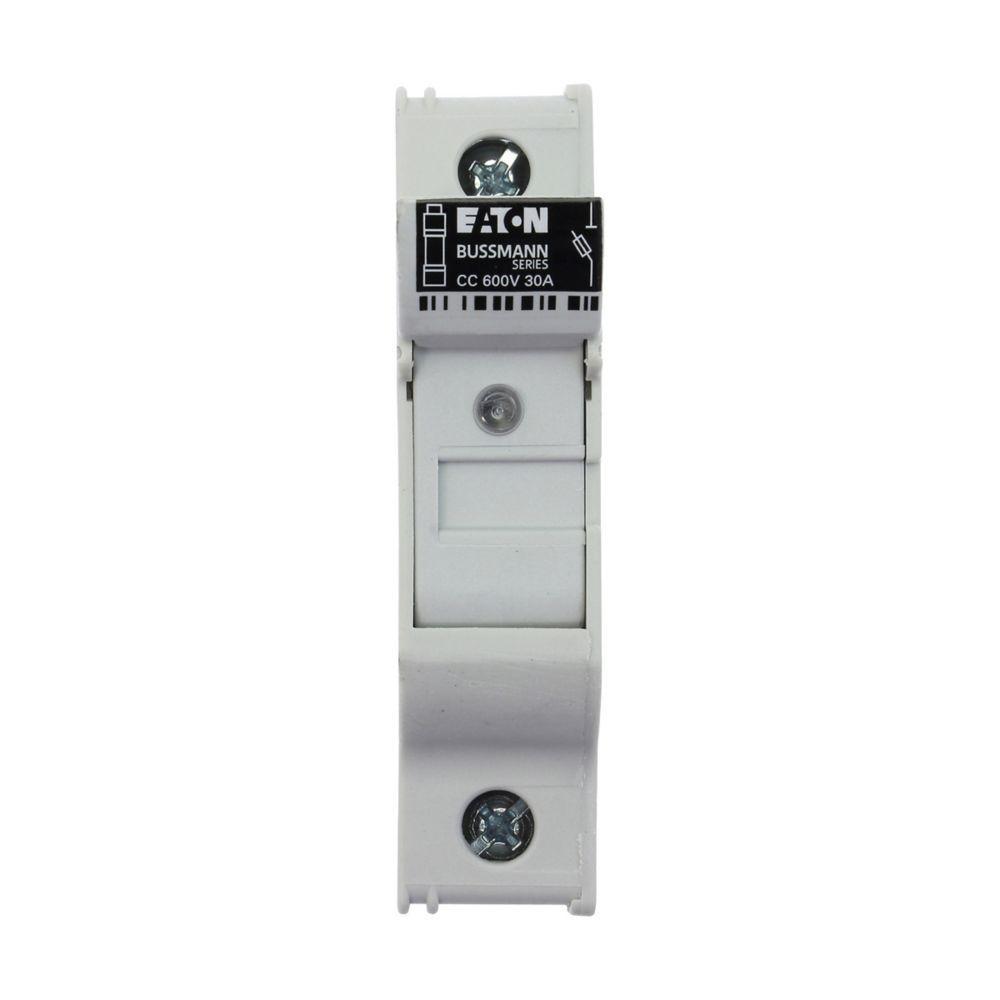

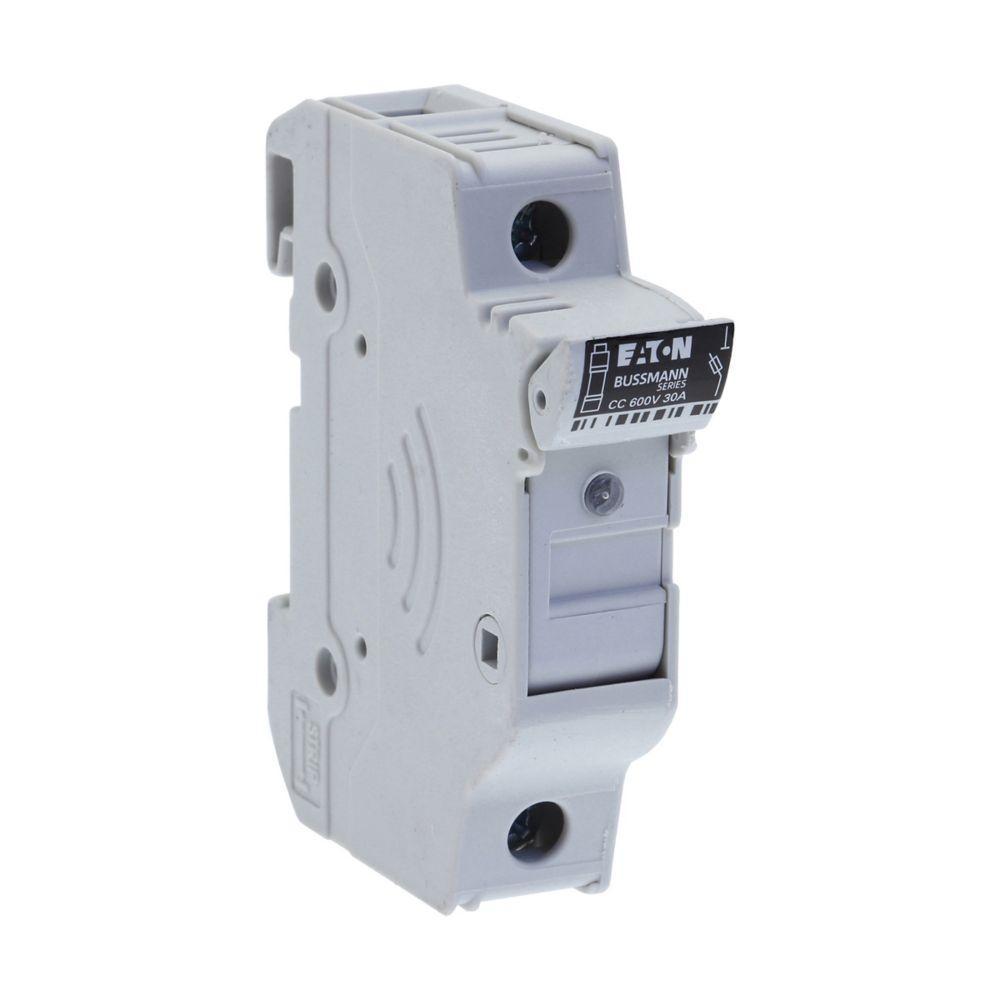

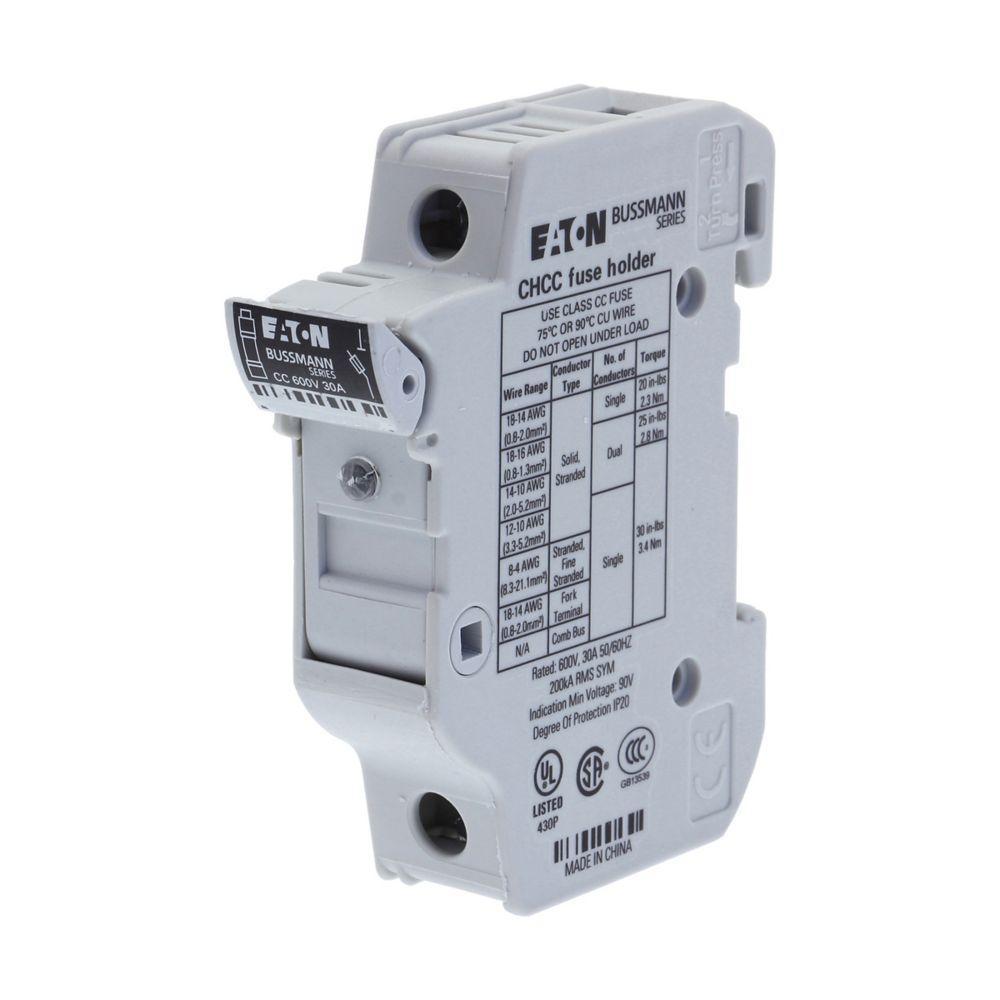

EATON Bussmann series CH DIN-Rail fuse holders are for UL Class CC and midget fuses and IEC 10x38 fuses. They are available with and without indication in 1, 2- and 3-pole IP20 finger-safe versions. A variety of accessories extends their application flexibility and they may be ganged together to meet specific application requirements.
Bussmann Fuse Holder, Finger Safe Modular, Series: CH Series, 48 VDC, 30 A, 1 Pole, Class: CC, Fuse Holder Code: W, Spade Lug, 18 to 4 AWG Wire, DIN Rail Mount, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 90 deg C, For Use With: KTK-R, LP-CC and FNQ-R Series CC Fuse, Polyester, White, 0.689 in W x 3.275 in D x 2.909 in H
| Class | : | CC |
| Color | : | White |
| Connection Type | : | Spade Lug |
| Dimensions | : | 0.689 in W x 3.275 in D x 2.909 in H |
| Fuse Diameter | : | 10 mm |
| Fuse Holder Code | : | W |
| Fuse Length | : | 38 mm |
| Material | : | Polyester |
| Mounting Type | : | DIN Rail |
| Series | : | CH Series |
| Suitable For Use With | : | KTK-R, LP-CC and FNQ-R Series CC Fuse |
| Temperature Rating | : | -20 to 90 deg C |
| Type | : | Finger Safe Modular |
| Voltage Rating | : | 48 VDC |
| Amperage Rating | : | 30 A |
| Wire Size | : | 18 to 4 AWG |
| Number of Poles | : | 1 |
- Withstands 200 kA (RMS Symmetrical) interrupt rating
- Tool less ganging for multiple poles
- Wire strip gauge
- Captive fully backed out Phillips slotted screw
- 18 to 4 AWG copper wire
