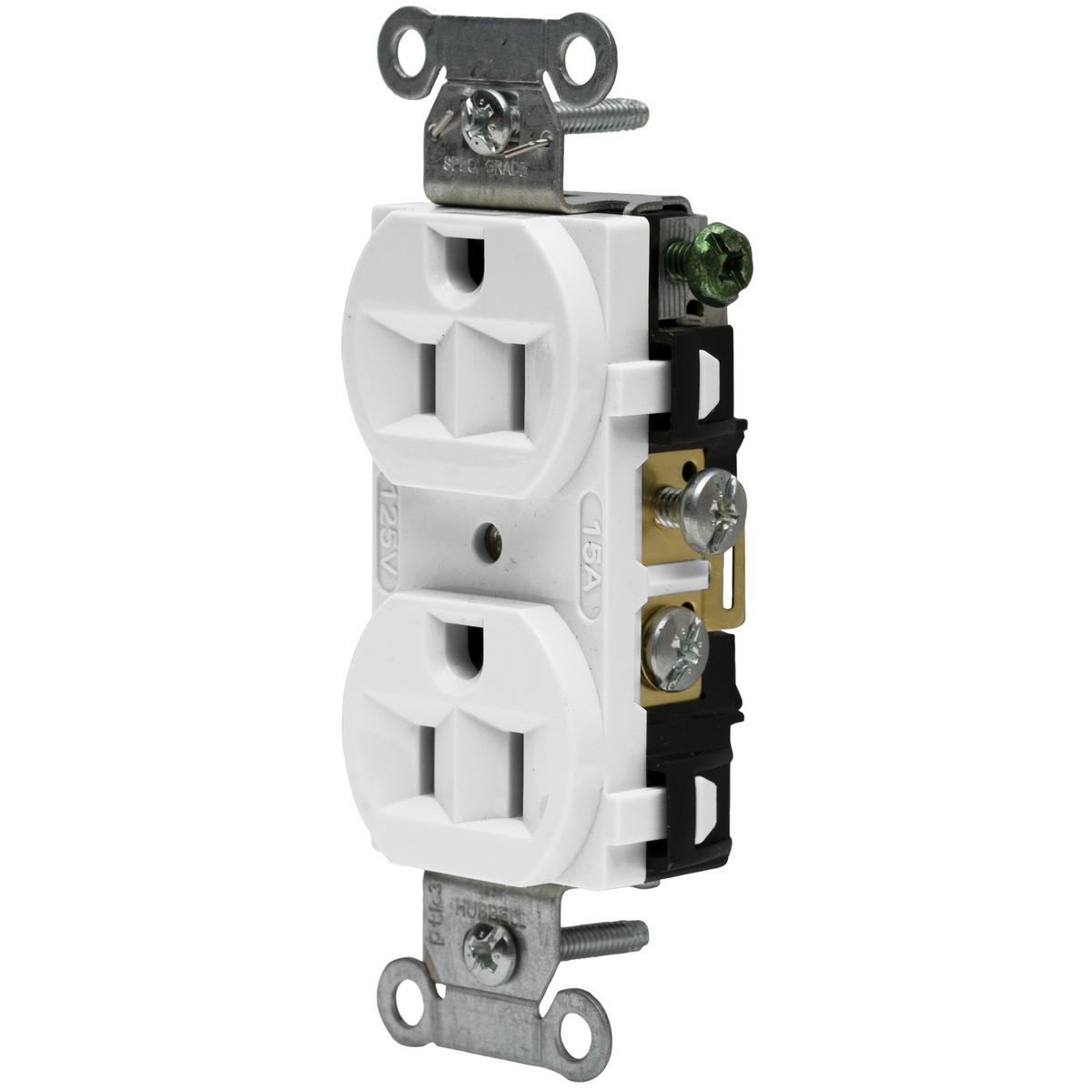

Pass & Seymour® Straight Blade Receptacle, Duplex, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial/Residential Grade, -40 to 50 deg C, Side Wire Terminal, Thermoplastic, White, 3.3 in H x 1.32 in W x 0.78 in D Dimensions
| Dimensions | : | 3.3 in H x 1.32 in W x 0.78 in D |
| Grade | : | Commercial/Residential |
| Material | : | Thermoplastic |
| NEMA Rating | : | NEMA 5-15R |
| Temperature Rating | : | -40 to 50 deg C |
| Terminal Type | : | Side Wire |
| Type | : | Duplex |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 15 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | White |
- Corrosion resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly
- Wire ground connection
- 0.032 in THK brass triple wipe power contacts for lasting retention
- Accepts 14 to 10 AWG solid or stranded copper or copper clad wire
- Terminal compartments isolated from each other for positive conductor containment
- Auto-ground clip assures positive ground
- Withstands 1500 VAC minimum dielectric voltage
- Easily accessed break OFF line contact connecting tab for fast and easy split-circuit wiring
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- Temperature Rise, Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150 Percent of rated current with direct current
- Operating Temperature, Maximum continuous +50 deg C, minimum -40 deg C without impact
