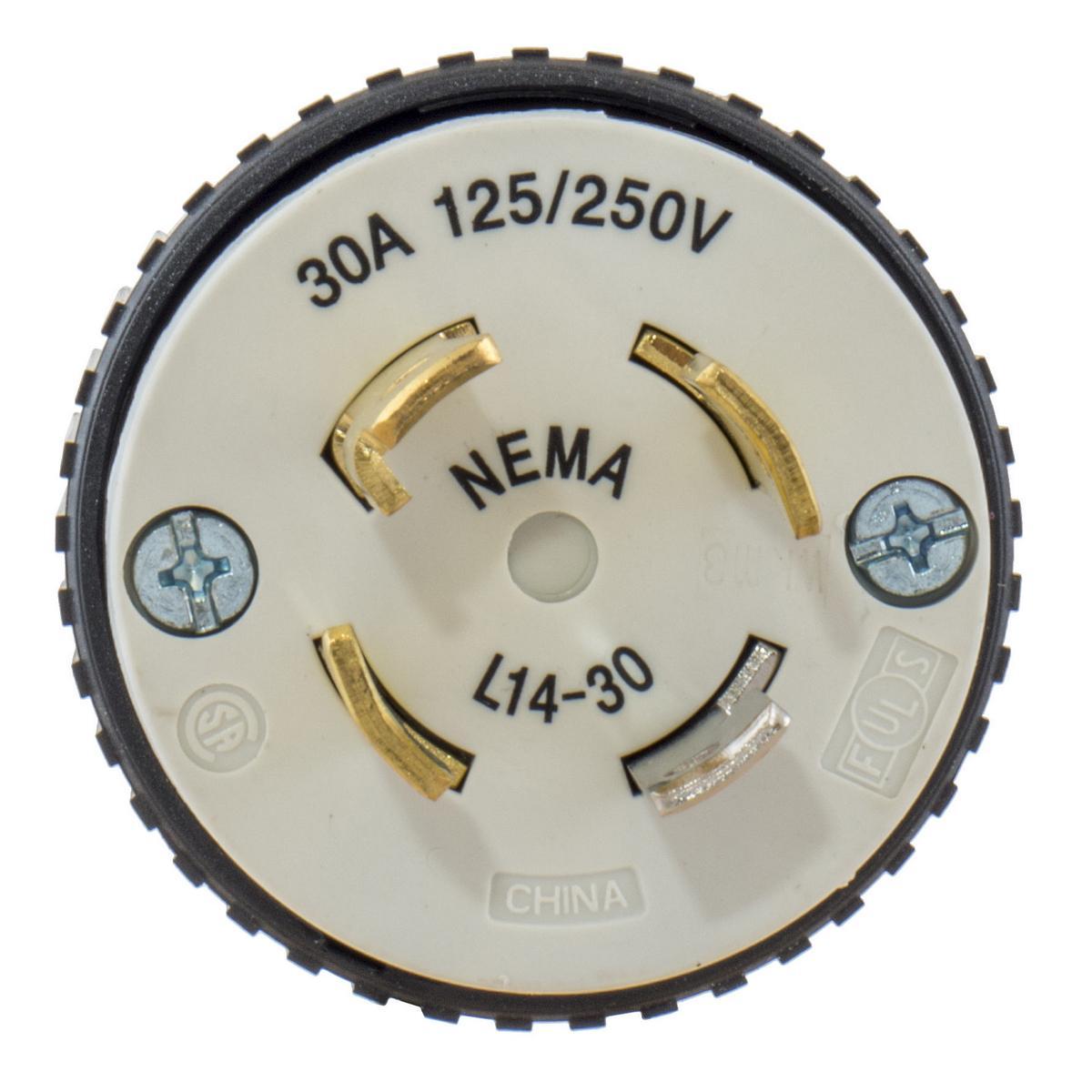

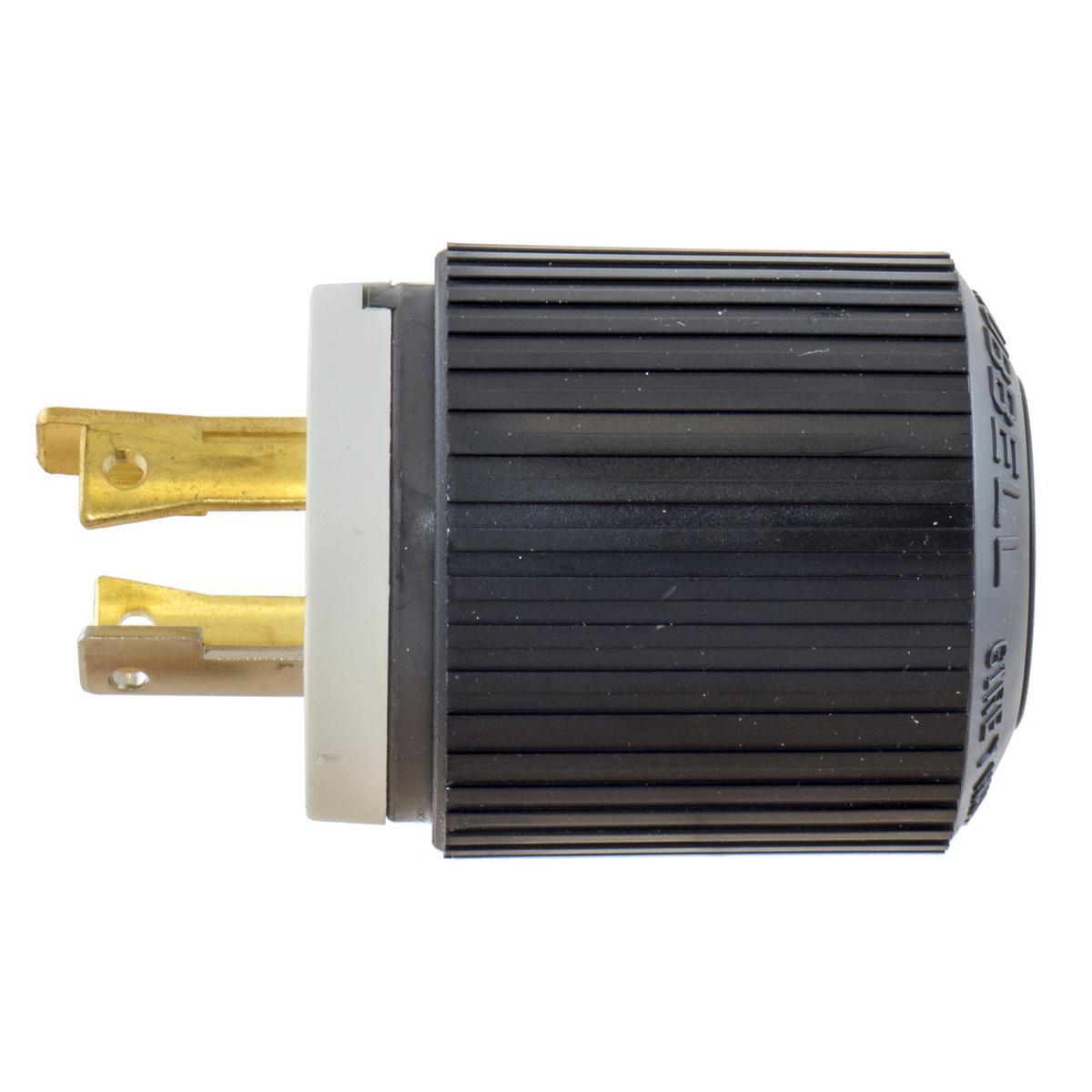

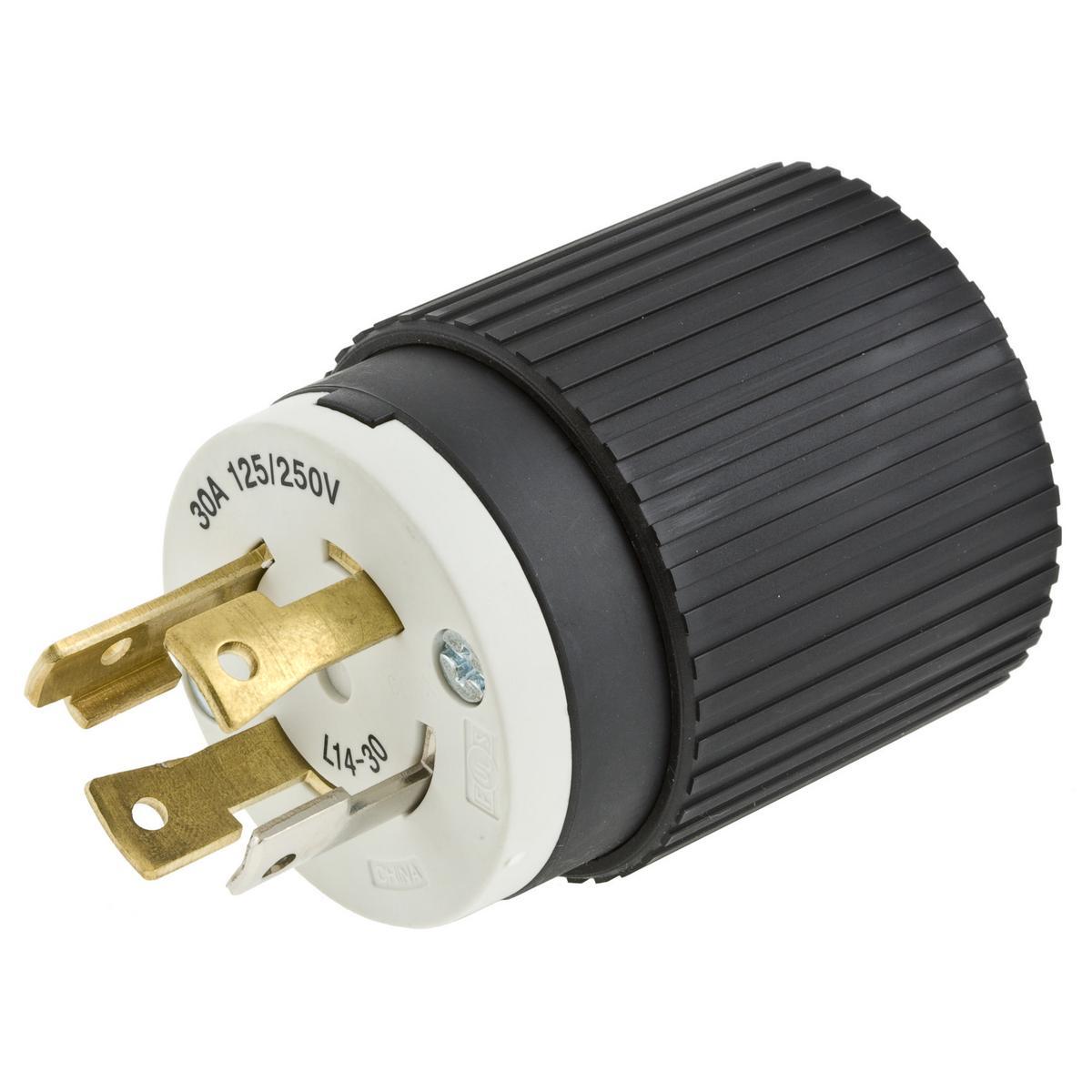

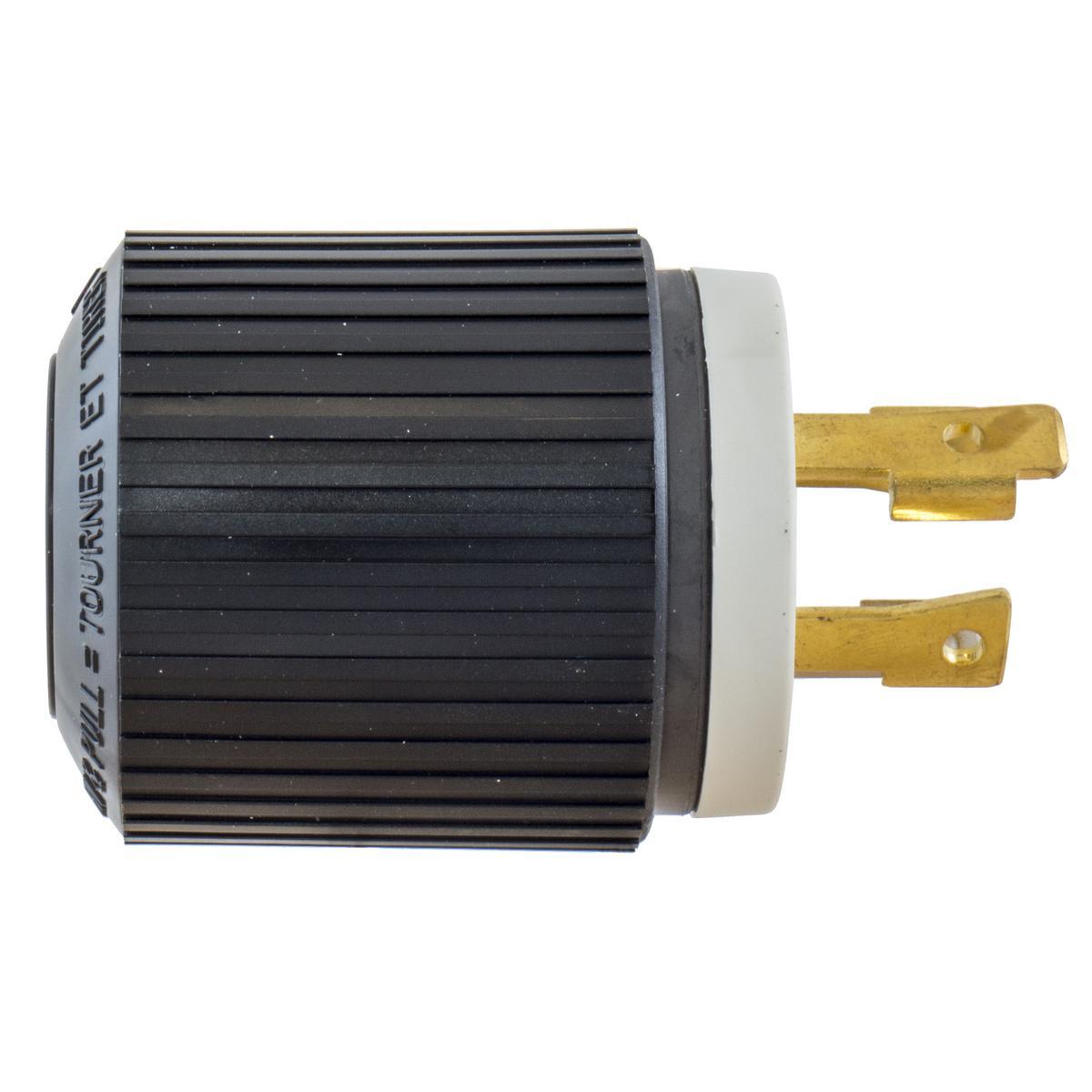

Wiring Device-Kellems L1430P
Wiring Device-Kellems Twist-Lock® L1430P 1-Phase Grounding Standard Sized Cord Mount Locking Male Plug, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Black
- Manufacturer Name: Hubbell
- MPN: L1430P
- Brand Name: Wiring Device-Kellems
- UPC: 783585840666
- FEPN: L1430P HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Hubbell® Pro™ locking devices provide a safe disconnect solution between an equipment load and a power source. These devices incorporate a locking interface that is engaged and disengaged simply by rotating the device assuring a safe and reliable electrical connection.
Wiring Device-Kellems Twist-Lock® Locking Male Plug, 1-Phase Grounding Standard Sized Cord Mount, 125/250 VAC, 30 A, 3 Pole, 4 Wires, L14-30P NEMA Rating, Commercial/Industrial Grade, -40 to 60 deg C, Screw Terminal, Composite, Black
| Grade | : | Commercial/Industrial |
| Material | : | Composite |
| NEMA Rating | : | L14-30P |
| Temperature Rating | : | -40 to 60 deg C |
| Terminal Type | : | Screw |
| Type | : | 1-Phase Grounding Standard Sized Cord Mount |
| Voltage Rating | : | 125/250 VAC |
| Amperage Rating | : | 30 A |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Color | : | Black |
- Visible NEMA ratings
- Captive assembly screws
- Supertough® nylon body
- Impact modified nylon blade/contact holder
- Brass contacts/blade
- Withstands 3500 VAC per UL 498 dielectric voltage
- 600 VAC or 250 VDC maximum working voltage
- Maximum 30 deg C temperature rise at full rated current after 50 cycles overload at 150% rated current for either AC or DC applications per UL 498
- Minimum 4.8 times rated current for 100 cycles overload
- Terminals identified in accordance with UL 498 (brass, white, green)
- 18 to 8 AWG flexible cord
- Ratings and NEMA identification are permanently marked on device
- Indoor dry unless protected by additional means
- 14 to 10 AWG wire
Specification Sheet
