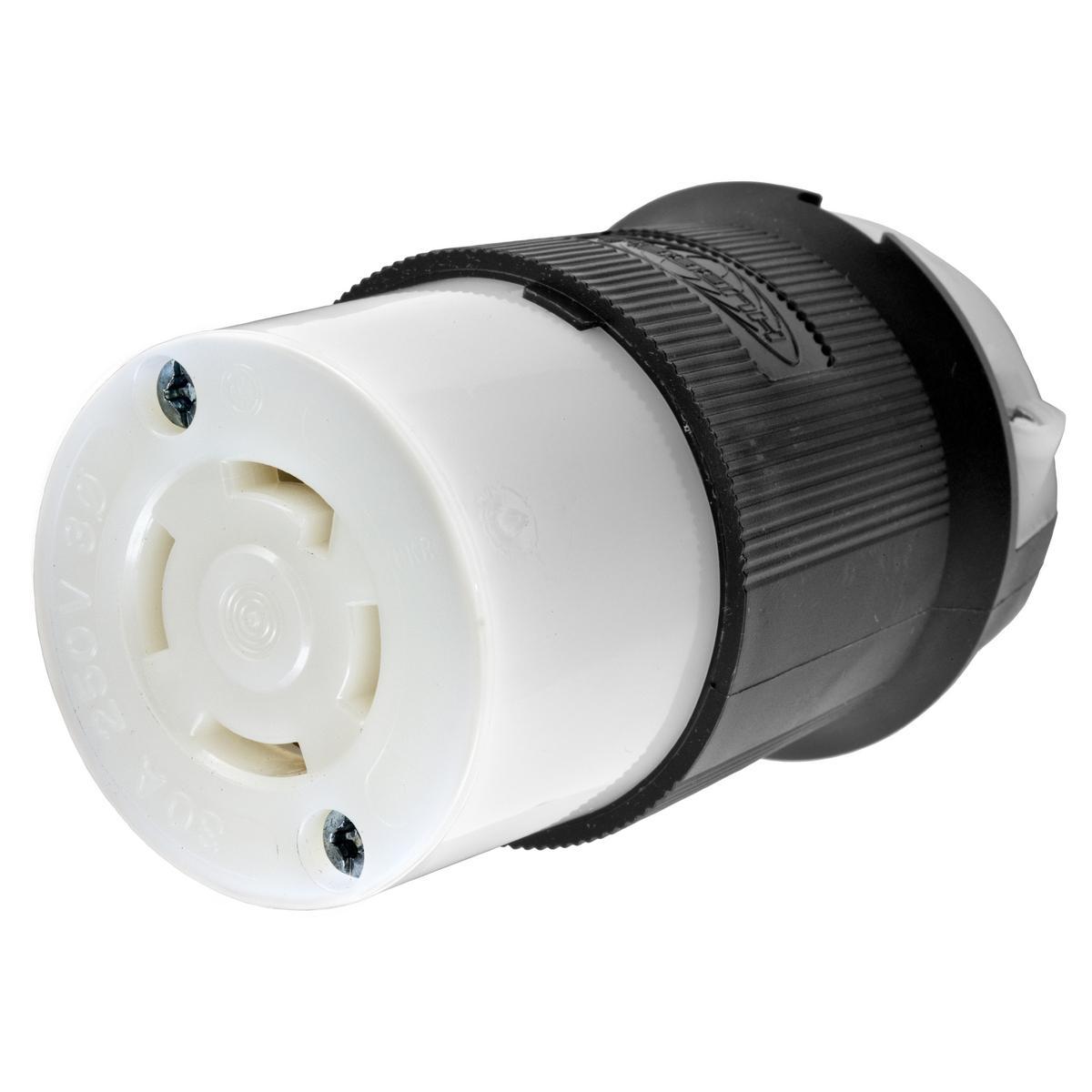

Wiring Device-Kellems HBL2723
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2723 Heavy Duty Grounding Cord Mount Locking Connector, 250 VAC, 30 A, 3 Poles, 4 Wires, Black/White
- Manufacturer Name: Hubbell
- MPN: HBL2723
- Brand Name: Wiring Device-Kellems
- UPC: 783585039251
- FEPN: HBL2723 HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Connector, Heavy Duty Grounding Cord Mount, 250 VAC, 30 A, 3 hp, 3 Pole, 4 Wires, L15-30R NEMA Rating, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 2.33 x 2.33 x 3.86 in
| Cord Diameter | : | 0.35 to 1.15 in |
| Dimensions | : | 2.33 x 2.33 x 3.86 in |
| Enclosure | : | IP20 |
| Grade | : | Industrial |
| Horsepower | : | 3 hp |
| Material | : | Nylon |
| NEMA Rating | : | L15-30R |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Pressure Screw |
| Type | : | Heavy Duty Grounding Cord Mount |
| Voltage Rating | : | 250 VAC |
| Amperage Rating | : | 30 A |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Color | : | Black/White |
- Superior cord grip design protects terminations from excess strain
- Clear, funnel shaped wire entry for ease of termination
- Integral dust shield protects wiring chamber from dust or contaminants
- Clear polycarbonate terminal retainer
- Natural white nylon cord clamp material, body contact carrier material
- Steel nickel plated terminal clamp
- Brass terminal screw, ground screw, contact spring, spring binding plate, ground contact
- Steel zinc plated cord clamp screw, body holding screw
- 3-phase
- 30 A, 10 AWG terminal accommodation
- Withstands 2000 VAC dielectric voltage
