T&B® Liquid Tight® fittings for flexible conduits are suitable for a wide range of installations. Our Liquid Tight® Fittings are designed to stand up to demanding wet and corrosive environments, including power generation, petrochemical, paper mills, food, beverage, pharmaceutical plants and anywhere high performance is required.

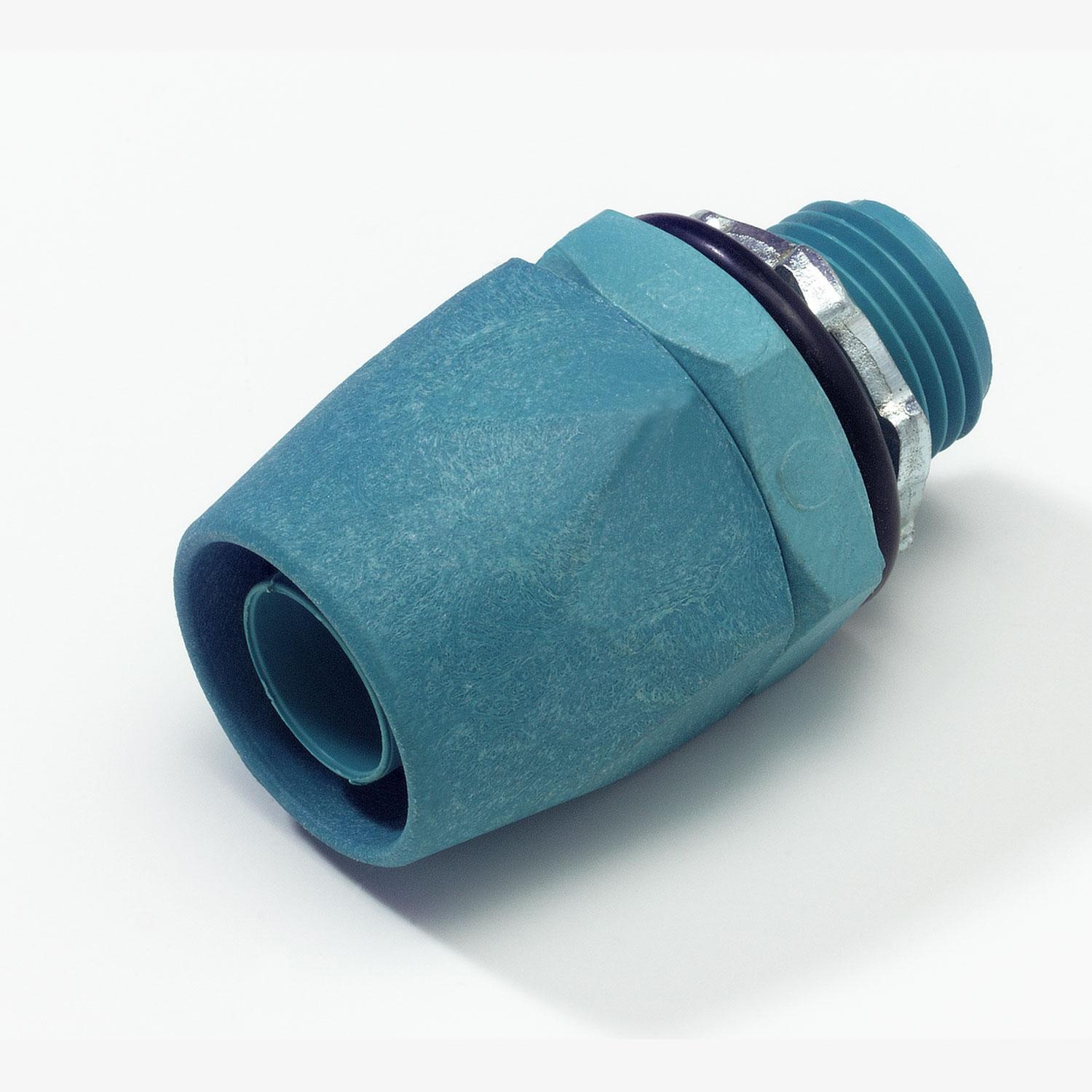

T&B® Conduit Connector, Straight, 1 in, For Use With: Type A Liquid Tight Flexible Non-Metallic Conduits, Thermoplastic, Electro-Zinc Plated
| Suitable For Use With | : | Type A Liquid Tight Flexible Non-Metallic Conduits |
| Type | : | Straight |
| Trade Size | : | 1 in |
| Material | : | Thermoplastic |
| Finish | : | Electro-Zinc Plated |
- Serrated design provides high mechanical pull-out strength
- Unique component parts (body/gland) design ensures positive seal between conduit and connector
- Tapered threaded hub and furnished neoprene sealing O-ring provide a liquid tight, dust tight seal to a box or enclosure
- Smooth insulated body throughout for maximum dielectric strength
- Captive o-ring and reduced number of parts save installation time
- 0.77 in L thread
