The Ranger® series steel liquidtight connector takes twice the cable range of most ordinary strain relief connectors. T&B® ranger connectors enable you to reduce your inventory and save time with one connector that can do the work of two.

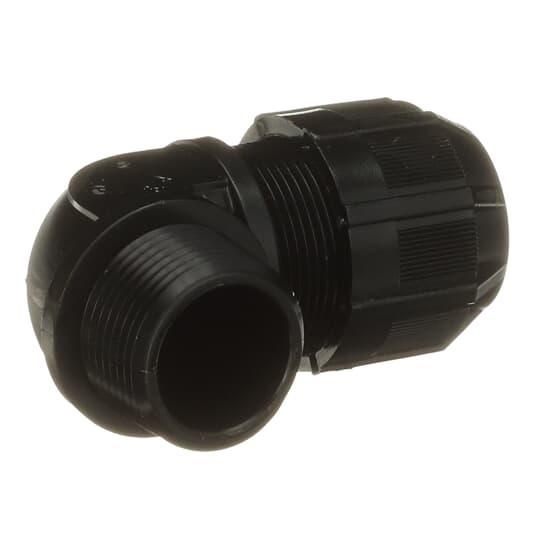

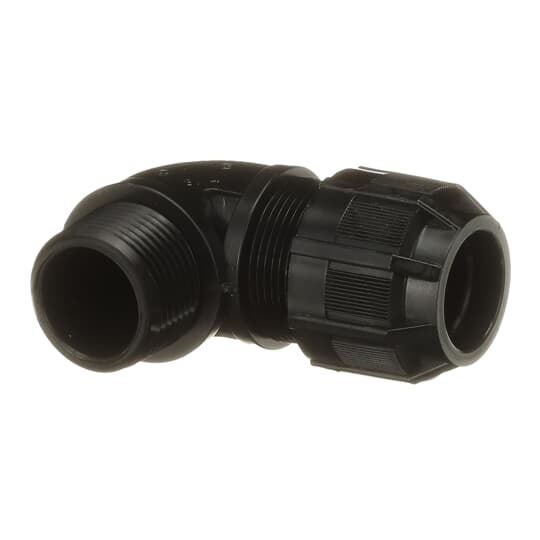

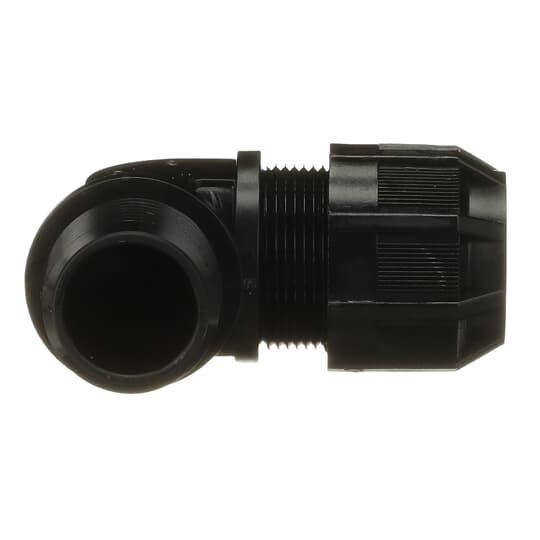

T&B® Ranger® Cord Connector, Liquidtight Strain Relief, 3/4 in, Cable Openings: 1/2 to 3/4 in, S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD Cable, NPT, 90 deg, Nylon 6.6/Polyamide, Black, -34 to 105 deg C
| Angle | : | 90 deg |
| Cable Type | : | S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD |
| Color | : | Black |
| Connection Type | : | NPT |
| Temperature Rating | : | -34 to 105 deg C |
| Type | : | Liquidtight Strain Relief |
| Trade Size | : | 3/4 in |
| Cable Openings | : | 1/2 to 3/4 in |
| Material | : | Nylon 6.6/Polyamide |
- Extended range with superior strain relief
- Reduced overall size, fits into tighter spaces
- Gland nut designed to restrict cable bending
- Nylon gland and grip, oil-resistant elastomer bushing
- IP65 rating, UV-resistant
- Non-metallic means corrosion-resistance
- 5/8 in L thread
- 0.79 in dia throat
