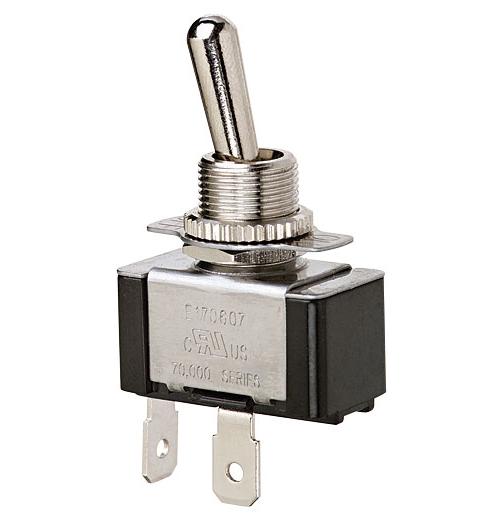

BUCHANAN Toggle Switch, Standard, 125/227 VAC, 20/10 A, 3/4 hp Power, SPST ON-OFF Contact Configuration, 21 A at 14.8 VDC Contact, 1 Pole, Toggle Actuator, Screw Terminal, 100000 Cycles Operating Cycles, Solid Brass, Environmental Conditions: 32 to 185 deg F Operating Temperature, 1.13 in L x 0.57 in W x 0.61 in H Dimensions
| Actuator | : | Toggle |
| Contact Rating | : | 21 A at 14.8 VDC |
| Dimensions | : | 1.13 in L x 0.57 in W x 0.61 in H |
| Environmental Conditions | : | 32 to 185 deg F Operating Temperature |
| Material | : | Solid Brass |
| Number of Poles | : | 1 |
| Operating Cycles | : | 100000 Cycles |
| Terminal Type | : | Screw |
| Type | : | Standard |
| Voltage Rating | : | 125/227 VAC |
| Amperage Rating | : | 20/10 A |
| Power Rating | : | 3/4 hp |
| Contact Configuration | : | SPST ON-OFF |
- Rugged long wearing solid brass/nickel plated bushings
- 1/2 in diameter mounting hole
- Dielectric Strength - 1500V
RoHS
