Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.

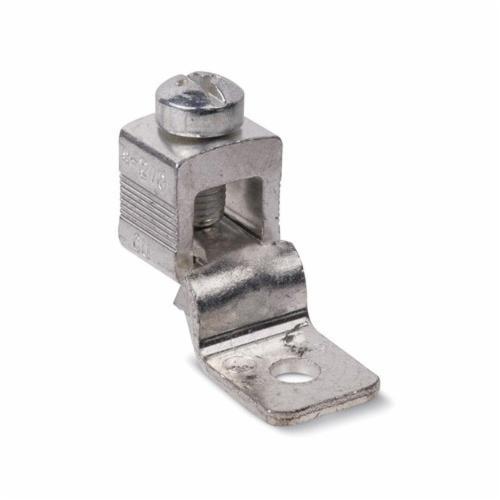

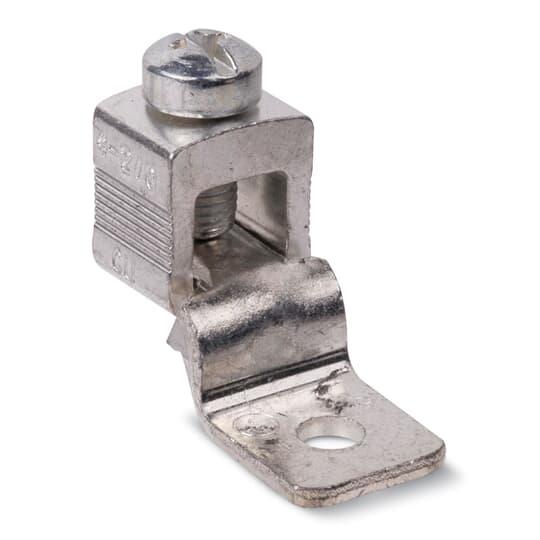

Blackburn® Locktite Lug, 1-Hole, Copper Conductor, 4 to 2/0 AWG Conductor, 1/4 in Stud, Offset Tongue, 0.8125 in L x 0.75 in W x 0.101 in THK Tongue, 1-13/16 in Overall Length, Specifications: Aluminum Tin Plated Finish, 3/8 in Mounting Hole, Copper
| Mounting Hole Size | : | 3/8 in |
| Overall Length | : | 1-13/16 in |
| Specifications | : | Aluminum Tin Plated Finish |
| Tongue Size | : | 0.8125 in L x 0.75 in W x 0.101 in THK |
| Tongue Type | : | Offset |
| Type | : | 1-Hole |
| Conductor Size | : | 4 to 2/0 AWG |
| Conductor Type | : | Copper |
| Stud Size | : | 1/4 in |
| Material | : | Copper |
- Double laps at top give greater thread strength and lock screw when tightened
- Copper tongue makes a low resistance terminal
Specification Sheet
