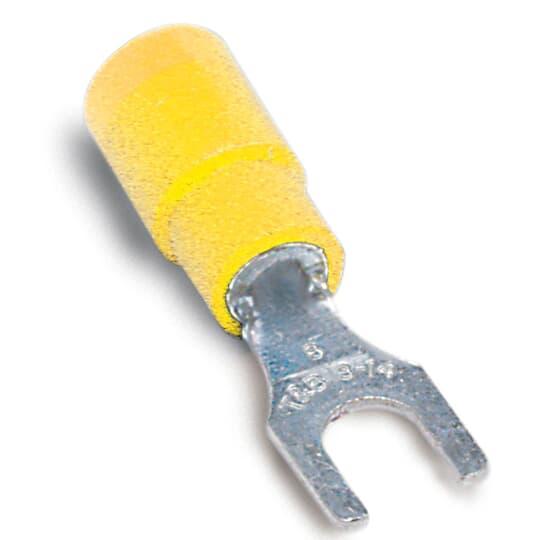

Sta-Kon® 10RC-10FX
Sta-Kon® 10RC-10FX RC Series Expanded Insulated Fork Terminal, 12 to 10 AWG Conductor, 1.11 in L, Brazed Seam/Serrated Barrel, Copper, Yellow
- Manufacturer Name: ABB
- MPN: 10RC-10FX
- Brand Name: Sta-Kon®
- UPC: 786210800448
- FEPN: 10RC-10FX TB
- Min Order Qty: 1
- Quantity Interval: 50
-
Inventory Availability
-
Retail Price:
Sta-Kon® Fork Terminal, Expanded Insulated, Series: RC Series, 12 to 10 AWG Conductor, #10 Stud, 1.11 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.38 in W x 0.04 in THK Tongue, 600 V AC, Specifications: 1/4 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Yellow
| Finish | : | Electroplated Tin |
| Series | : | RC Series |
| Specifications | : | 1/4 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation |
| Stud Size | : | #10 |
| Temperature Rating | : | 105 deg C |
| Tongue Size | : | 0.38 in W x 0.04 in THK |
| Tongue Type | : | Fork |
| Type | : | Expanded Insulated |
| Voltage Rating | : | 600 V AC |
| Conductor Size | : | 12 to 10 AWG |
| Length | : | 1.11 in |
| Barrel Type | : | Brazed Seam/Serrated |
| Material | : | Copper |
| Color | : | Yellow |
- Fork terminals allow easy installation since the mounting screw does not have to be completely removed
- Brazed seam barrel is serrated for high pull-out value
- Insulation is Color coded
- Terminals have expanded insulation support which means a wider wire entry to accommodate heavy wall insulation
- WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools
