T&B® AFSC-2

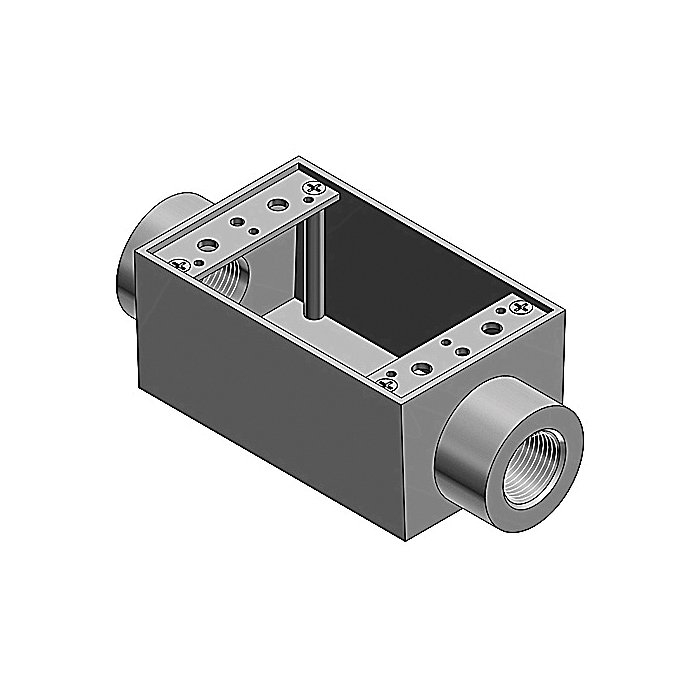

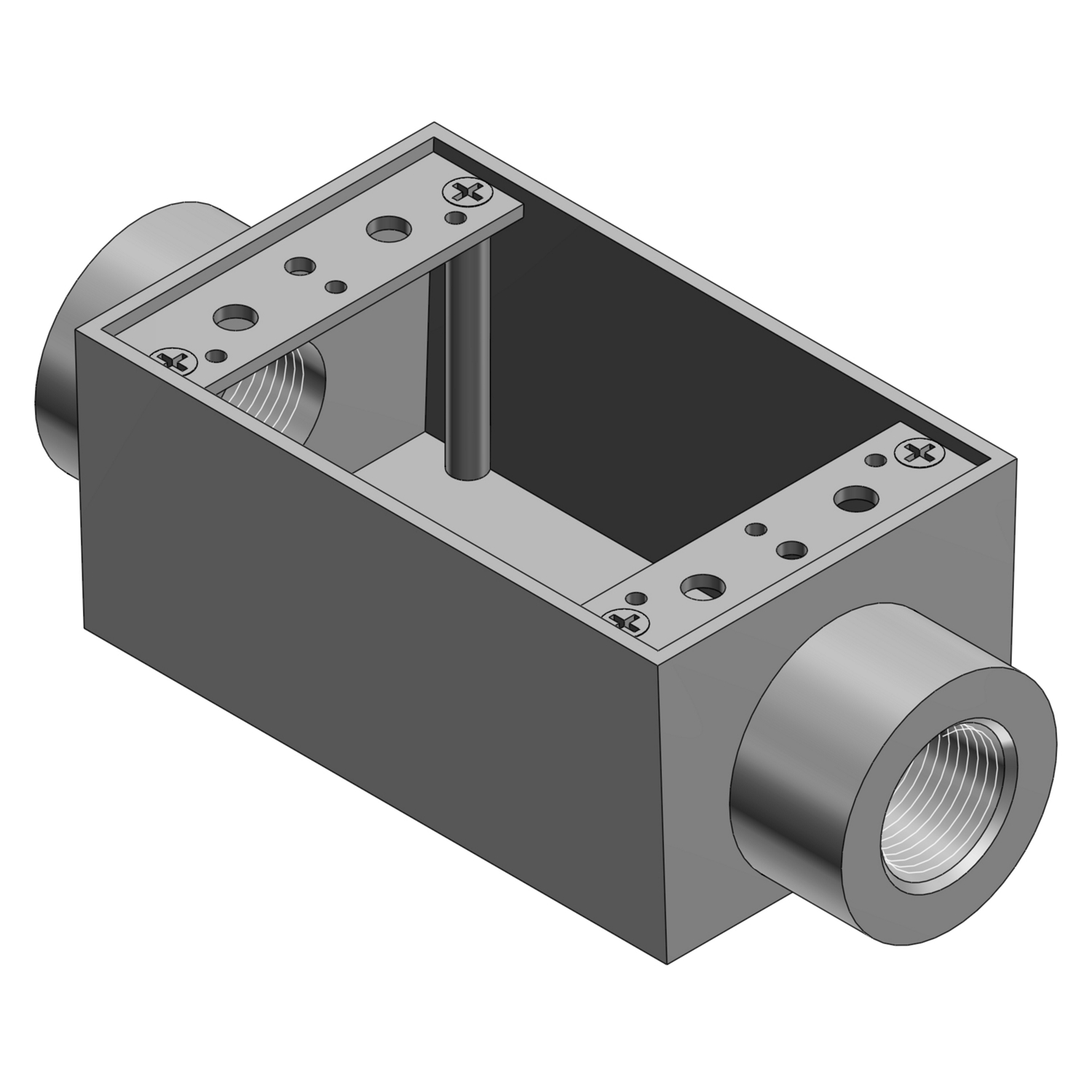

T&B® AFSC-2 Type FSC Feed-Through Shallow Style Device Box, Die Cast Aluminum, 21.6 cu-in Capacity, 1 Gangs, 2 Outlets, 1 Knockouts, 4-9/16 in H x 2-13/16 in W x 2-1/16 in D
- Manufacturer Name: ABB
- MPN: AFSC-2
- Brand Name: T&B®
- UPC: 042269304550
- FEPN: AFSC-2 TB
- Min Order Qty: 1
- Quantity Interval: 5
-
Inventory Availability
-
Retail Price:
T&B® Device Box, Type FSC Feed-Through Shallow Style, 2 Outlets, 1 Gangs, 1 Knockouts, 3/4 in Hub, NPT Hub, Hub Cable Entry, Surface Mounting, 21.6 cu-in Capacity, Die Cast Aluminum, Aluminum Lacquered, 4-9/16 in H x 2-13/16 in W x 2-1/16 in D Dimensions
| Cable Entry Size | : | Hub |
| Finish | : | Aluminum Lacquered |
| Hub Size | : | 3/4 in |
| Hub Style | : | NPT |
| Mounting Type | : | Surface |
| Type | : | Type FSC Feed-Through Shallow Style |
| Material | : | Die Cast Aluminum |
| Capacity | : | 21.6 cu-in |
| Number of Gangs | : | 1 |
| Number of Outlets | : | 2 |
| Number of Knockouts | : | 1 |
| Dimensions | : | 4-9/16 in H x 2-13/16 in W x 2-1/16 in D |
- Copper-free aluminum, stainless steel cover springs and hinge pins provide increased corrosion-resistance
- Die cast construction, boxes with securely fastened mounting plates and industrial designed covers combine to produce a rugged protective enclosure for devices on industrial and OEM applications
- Clean cover edges provide good gasket sealing
- Precision NPT threaded hubs allow trouble-free field installation for rigid or IMC conduit
- Cubic content markings speed approval by inspectors
- Boxes external hub design provides increased wiring room
- Covers ship complete with gaskets and screws
- Industrial grade FS/FD device boxes and raintight covers protect wiring devices, switches, electronic components, and terminal blocks in dry, damp and wet locations
- Spacious, accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices
- Junction for branch conduit
- Aluminum boxes can be used with steel rigid conduit
- (1) each end hub cable entry
- Raintight when used with appropriate cover
Specification Sheet
