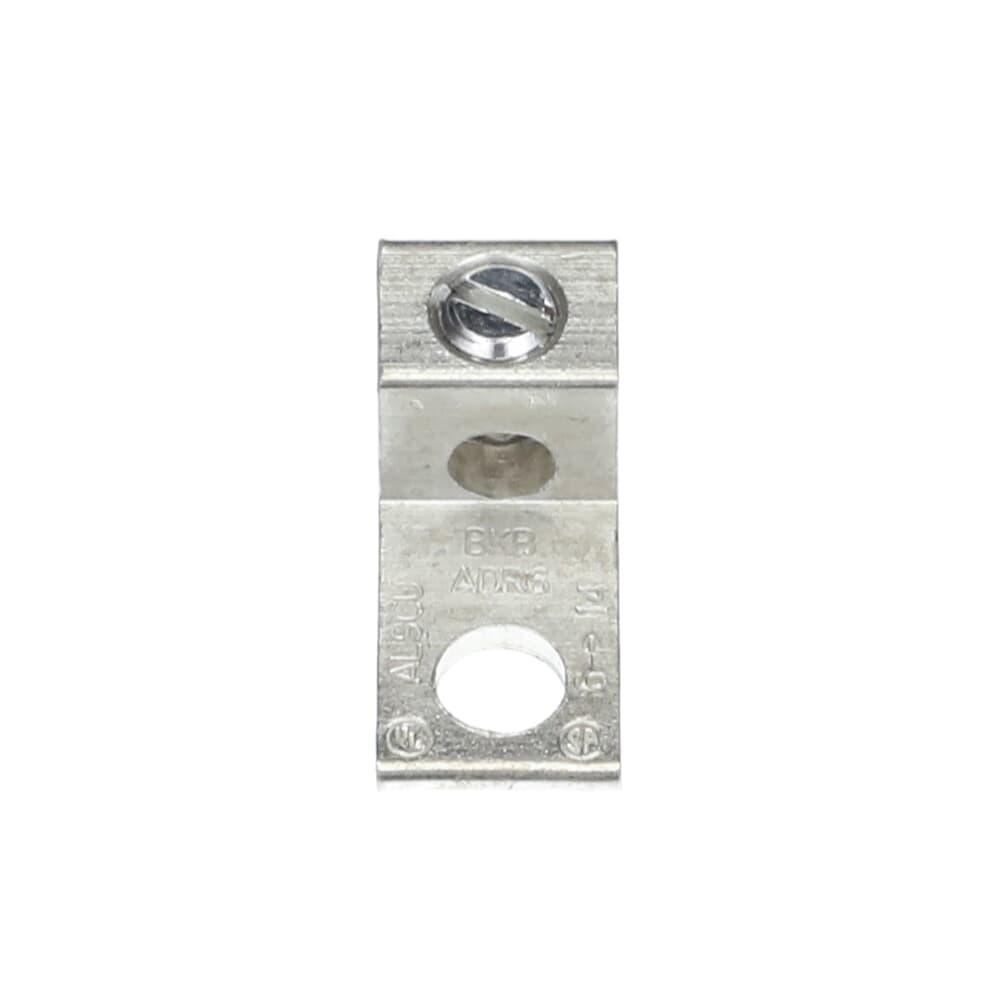

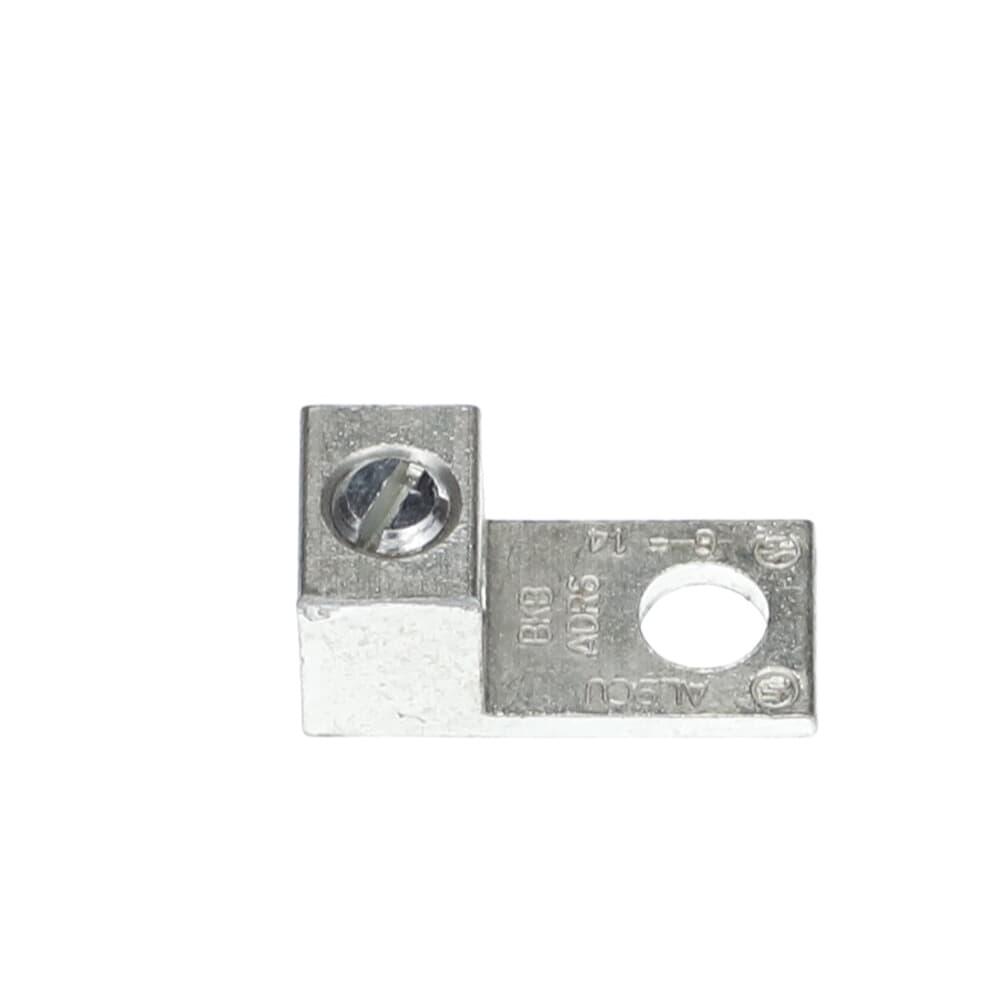

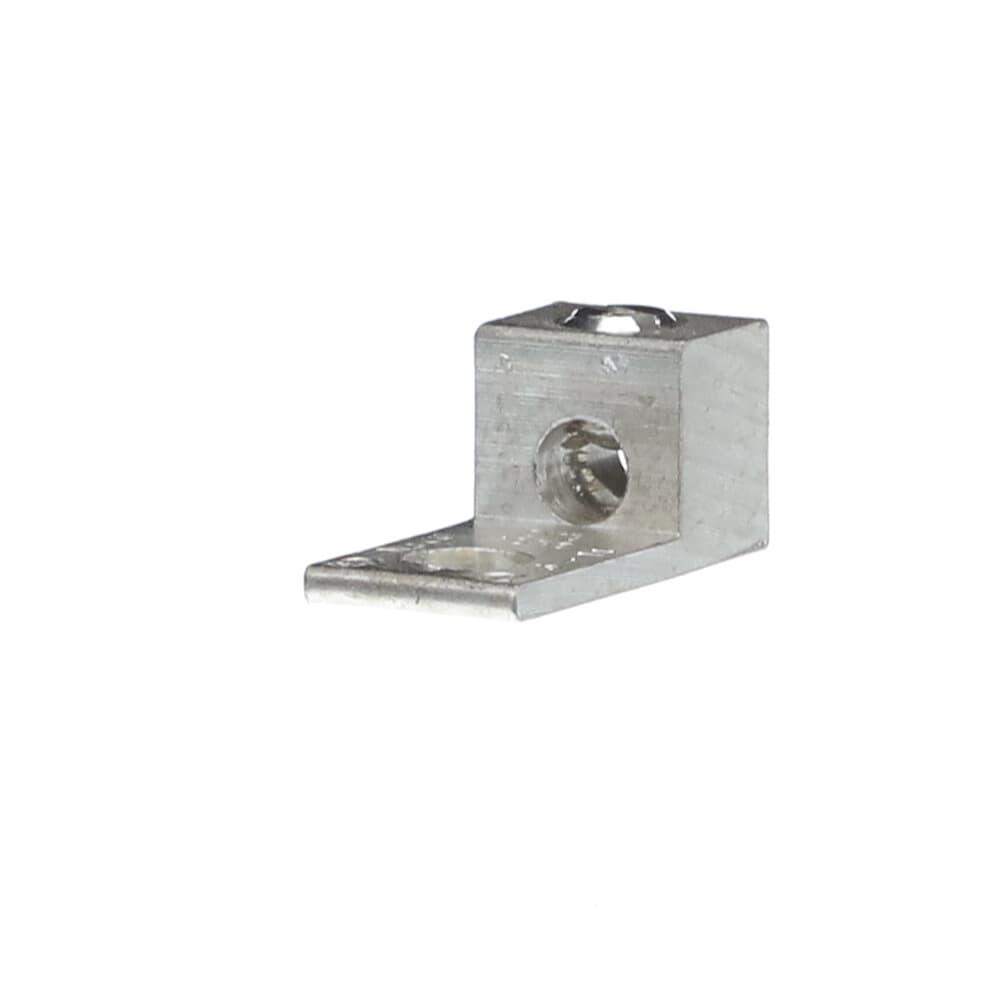

Blackburn® ADR6
Blackburn® ADR6 Type ADR-ALCUL Dual-Rated Mechanical Lugs, 14 to 6 AWG Conductor Aluminum/Stranded Copper Conductor, 1/4 in Stud, 1 Bolt Holes
- Manufacturer Name: ABB
- MPN: ADR6
- Brand Name: Blackburn®
- UPC: 783786610013
- FEPN: ADR6 TB
- Min Order Qty: 1
- Quantity Interval: 50
-
Inventory Availability
-
Retail Price:
Blackburn® cast, forged or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of UL and CSA certified solutions for your electrical interface needs.
Blackburn®, ADR6, Mechanical Lugs, Type ADR-ALCUL Dual-Rated, Aluminum/Stranded Copper Conductor, 14 to 6 AWG Conductor, 1/4 in Stud, 1 Bolt Holes, 43/64 in L x 1/2 in W x 5/64 in THK Tongue, Straight Tongue, 600 V AC, Specifications: 1-Conductor, Slotted Screw, Tin Plated, 1-3/64 in L x 1/2 in W x 31/64 in H Dimensions
| Dimensions | : | 1-3/64 in L x 1/2 in W x 31/64 in H |
| Finish | : | Tin Plated |
| Specifications | : | 1-Conductor, Slotted Screw |
| Tongue Size | : | 43/64 in L x 1/2 in W x 5/64 in THK |
| Tongue Type | : | Straight |
| Type | : | Type ADR-ALCUL Dual-Rated |
| Voltage Rating | : | 600 V AC |
| Conductor Size | : | 14 to 6 AWG |
| Conductor Type | : | Aluminum/Stranded Copper |
| Stud Size | : | 1/4 in |
| Number of Bolt Holes | : | 1 |
| Material | : | Aluminum |
- Easy installation no special tools required
- Tin plated for low contact resistance
- Extra aluminum lug
- Slotted screw on lugs up through 2/0 stranded
- 1 stud of 1/4 in
Instruction/Installation Manual-
-
