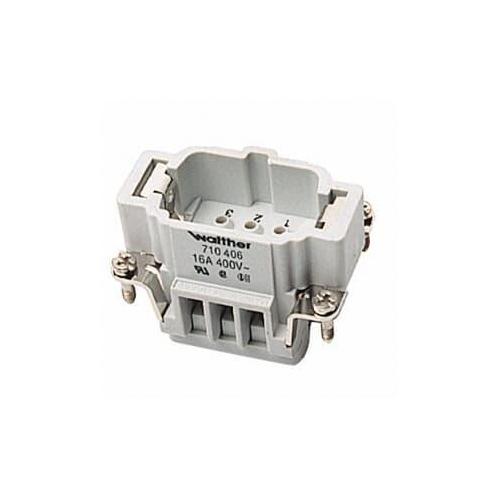

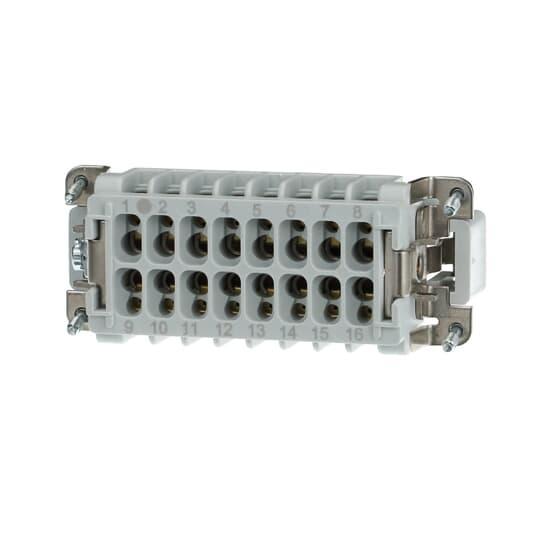

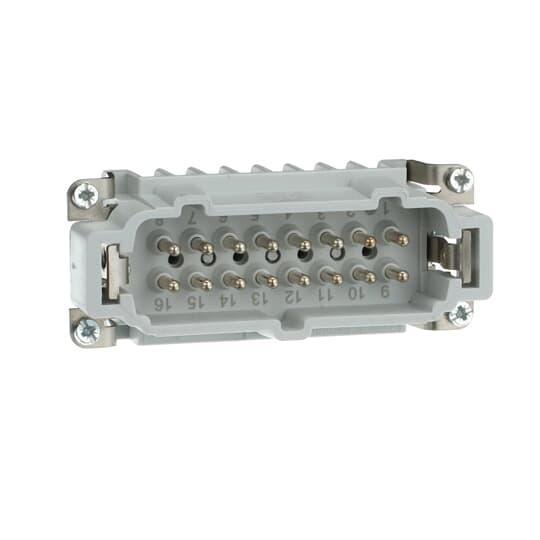

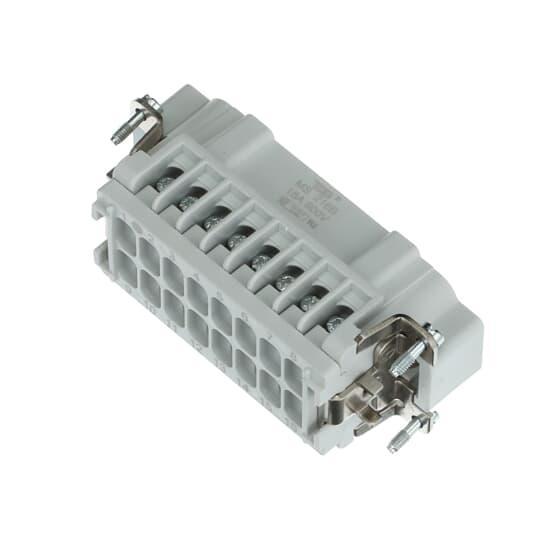

Pos-E-Kon® MS216B
Pos-E-Kon® MS216B B Series Standard Terminal Insert, 16 Positions, 20 to 14 AWG Wire, Male Screw Connection, Glass Filled Thermoplastic
- Manufacturer Name: ABB
- MPN: MS216B
- Brand Name: Pos-E-Kon®
- UPC: 786210118468
- FEPN: MS216B TB
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Pos-E-Kon® DIN-standard rectangular pin and sleeve connectors are modular for easy assembly at the customer site.
Pos-E-Kon® Terminal Insert, Standard, Series: B Series, 16 Positions, 20 to 14 AWG Wire, Male Screw Connection, For Use With: B Series Connector, -40 to 257 deg F, Specifications: 16 A, 600 V AC, Glass Filled Thermoplastic
| Series | : | B Series |
| Specifications | : | 16 A, 600 V AC |
| Suitable For Use With | : | B Series Connector |
| Temperature Rating | : | -40 to 257 deg F |
| Type | : | Standard |
| Number of Positions | : | 16 |
| Wire Size | : | 20 to 14 AWG |
| Connection Type | : | Male Screw |
| Material | : | Glass Filled Thermoplastic |
- 16-contact with ground
- Integral screw terminal contacts that provide for easy terminal wiring and fast assembly
- Allows single access direction panel build wiring and easy terminal ID for service and testing
- Standard wire protection saddles prevent cutting of strands during assembly
- Standard size screw terminal
- Use small blade screwdriver to push wire entry tab in for easy contact removal
