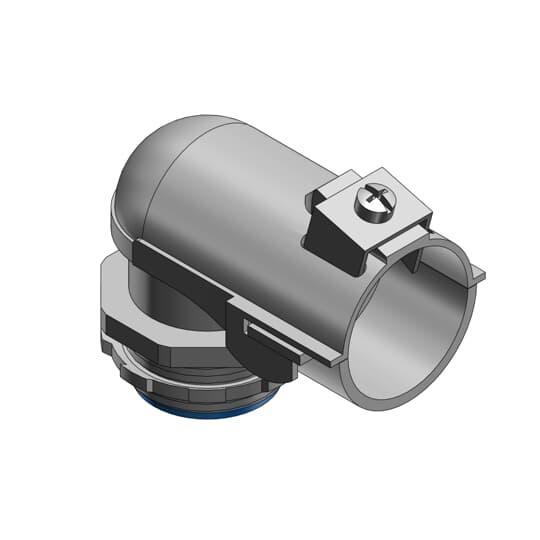

T&B® 3130-TB
T&B® 3130-TB Cable Angle Connector With Insulated Throat, 3/8 in Trade, 1/2 in Knockout, 0.47 to 0.66 in Cable Openings, Steel, Electro-Zinc Plated
- Manufacturer Name: ABB
- MPN: 3130-TB
- Brand Name: T&B®
- UPC: 786210031309
- FEPN: 3130-TB TB
- Min Order Qty: 1
- Quantity Interval: 25
-
Inventory Availability
-
Retail Price:
For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.
T&B® Cable Angle Connector, 3/8 in, 1/2 in Knockout, Cable Openings: 0.47 to 0.66 in, 1 Conductors, AC/FMC Cable, Angled Saddle/Threaded, 90 deg, Steel, Electro-Zinc Plated, Metallic, 1-11/32 in H
| Angle | : | 90 deg |
| Cable Type | : | AC/FMC |
| Color | : | Metallic |
| Connection Type | : | Angled Saddle/Threaded |
| Dimensions | : | 1-11/32 in H |
| Number of Conductors | : | 1 |
| Trade Size | : | 3/8 in |
| Knockout Size | : | 1/2 in |
| Cable Openings | : | 0.47 to 0.66 in |
| Material | : | Steel |
| Finish | : | Electro-Zinc Plated |
- By far the easiest and best to install when making sharp bends at the enclosure or equipment's
- All the advantages of the straight connector with only one screw to tighten, except in the larger sizes where there are two
- A peep hole on top provides for easy inspection of the ABC bushing
- Narrow design makes it easy to install connectors in adjacent knockouts
- To connect and effectively bond armored cable or flexible metal conduit to a box or an enclosure
- Nylon insulated
- Single cable opening
- 1-screw connection
