Panduit® DNH14-250FIM-Q
Panduit® Pan-Term™ DNH14-250FIM-Q DNH-FIM Fully Insulated Loose Piece Vibration-Resistant Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Sleeve/Standard/Insulation Support Barrel, Brass, Blue
- Manufacturer Name: Panduit
- MPN: DNH14-250FIM-Q
- Brand Name: Panduit®
- UPC: 074983818280
- FEPN: DNH14-250FIM-Q PC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Panduit® Pan-Term™ Disconnect, Fully Insulated Loose Piece Vibration-Resistant, Series: DNH-FIM, Stranded Conductor, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Sleeve/Standard/Insulation Support Barrel, Male Terminal, 600 VAC, Specifications: 0.158 in Dia Maximum Heat Shrink Insulation, 300 deg F Shrink, 5/16 in Mounting, 9/32 in L Wire Strip, 230 deg F, Brass, Blue, Nickel Plated, 1.5 in L x 0.41 in W Dimensions
| Conductor Type | : | Stranded |
| Dimensions | : | 1.5 in L x 0.41 in W |
| Finish | : | Nickel Plated |
| Series | : | DNH-FIM |
| Specifications | : | 0.158 in Dia Maximum Heat Shrink Insulation, 300 deg F Shrink, 5/16 in Mounting, 9/32 in L Wire Strip |
| Temperature Rating | : | 230 deg F |
| Terminal Type | : | Male |
| Type | : | Fully Insulated Loose Piece Vibration-Resistant |
| Voltage Rating | : | 600 VAC |
| Conductor Size | : | 16 to 14 AWG |
| Tab Size | : | 0.25 in W x 0.032 in THK |
| Barrel Type | : | Sleeve/Standard/Insulation Support |
| Material | : | Brass |
| Color | : | Blue |
- Insulation support helps to prevent wire damage in bending applications
- Male tab can be inserted and removed from the female disconnect without the use of tools for lower installed cost
- Vinyl barrel insulated

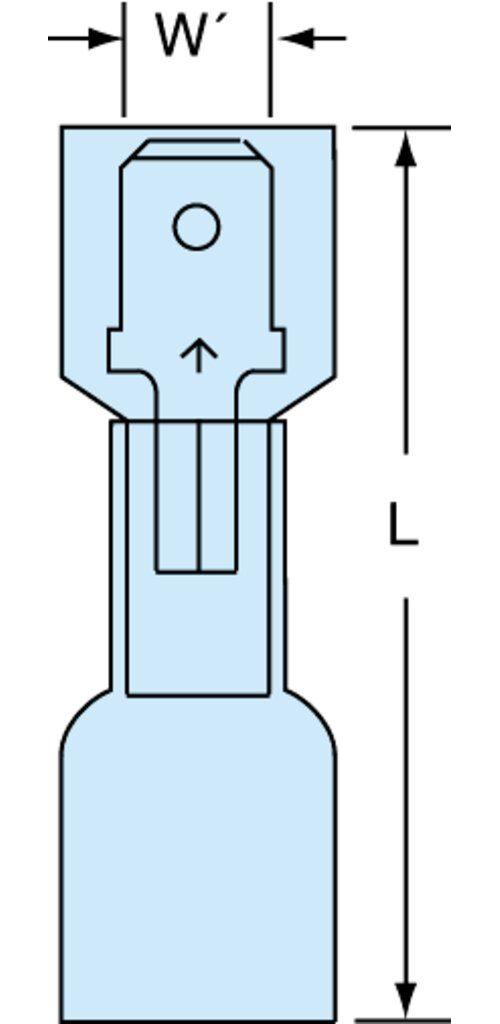

Full Engineering Drawing
