Wiring Device-Kellems 5252AW

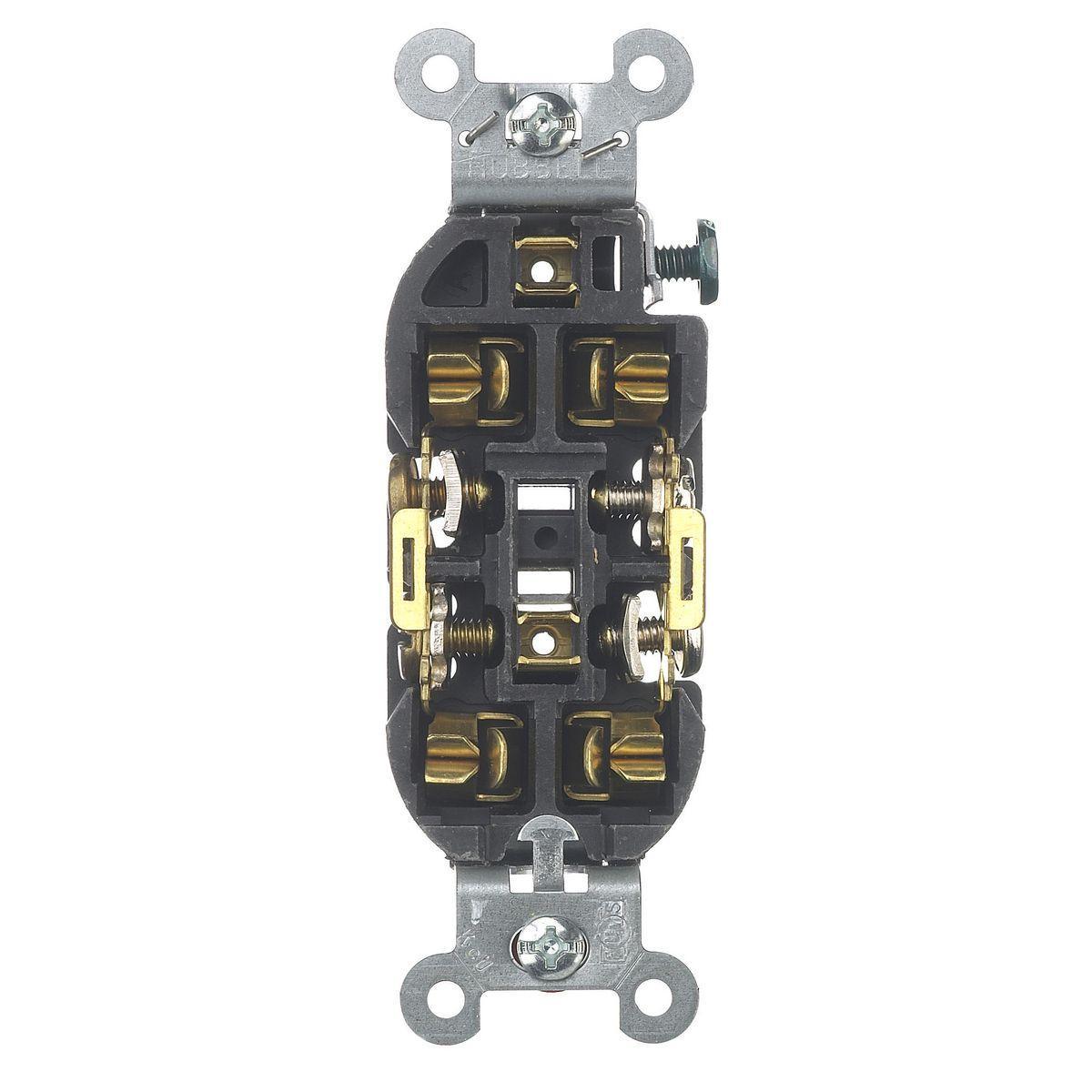

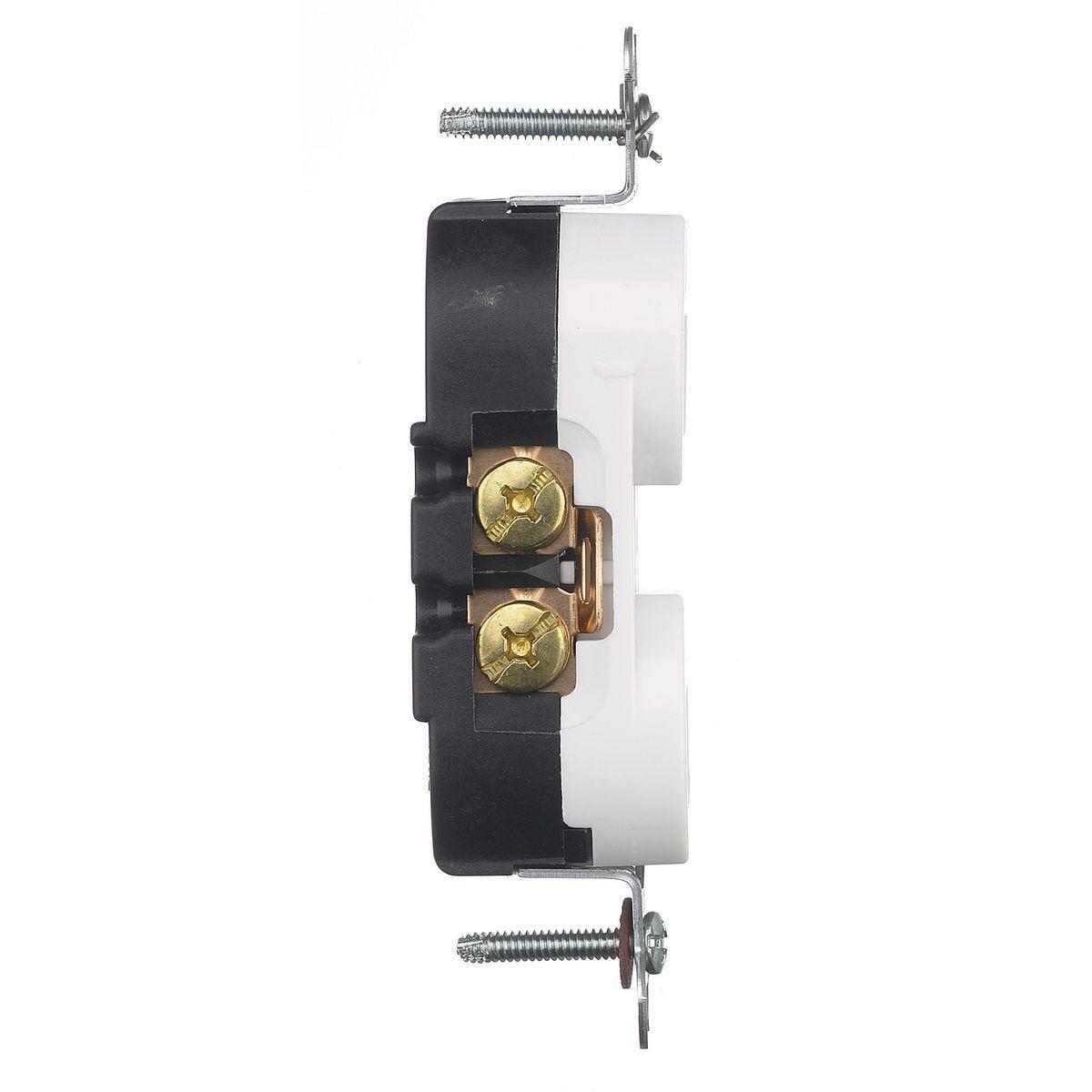

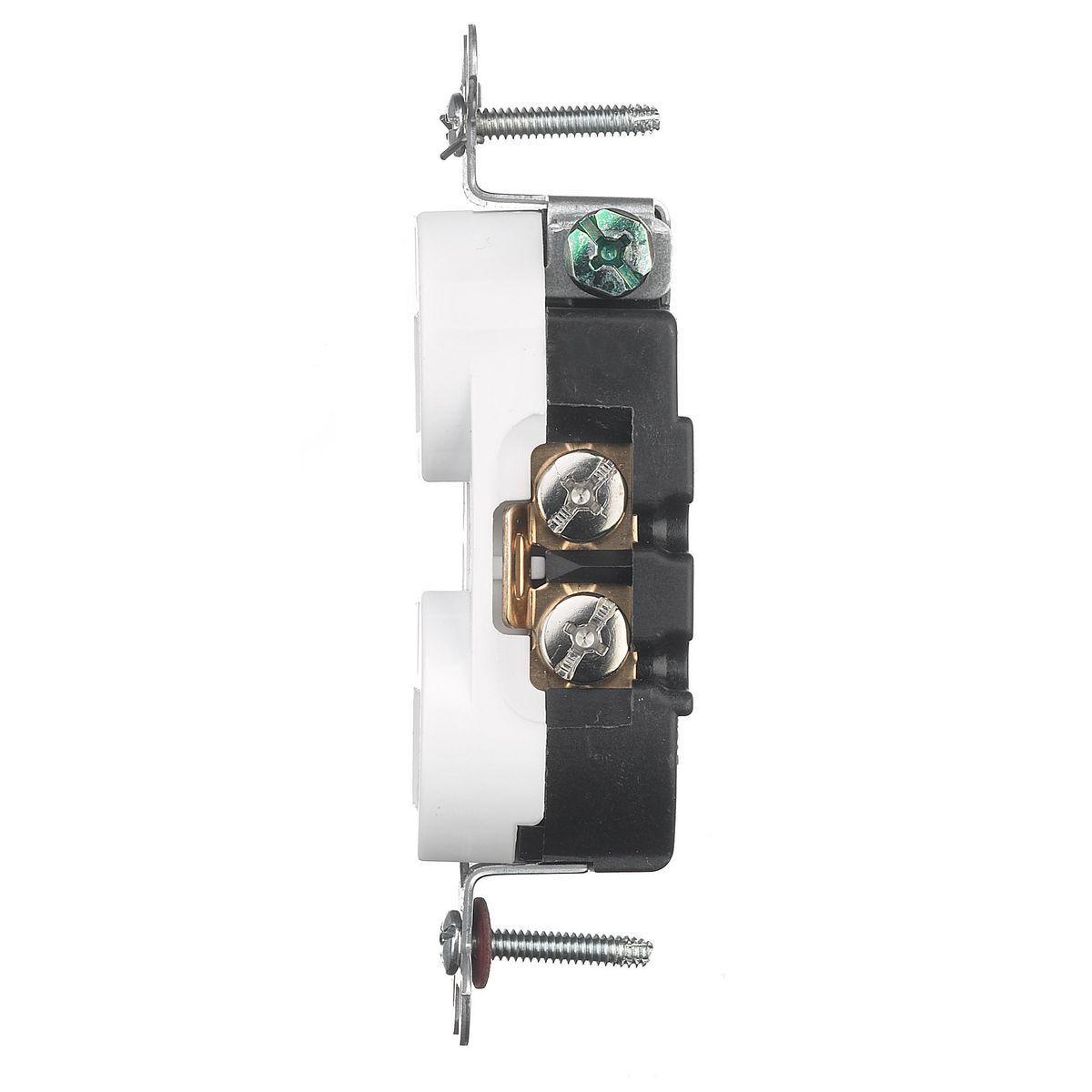

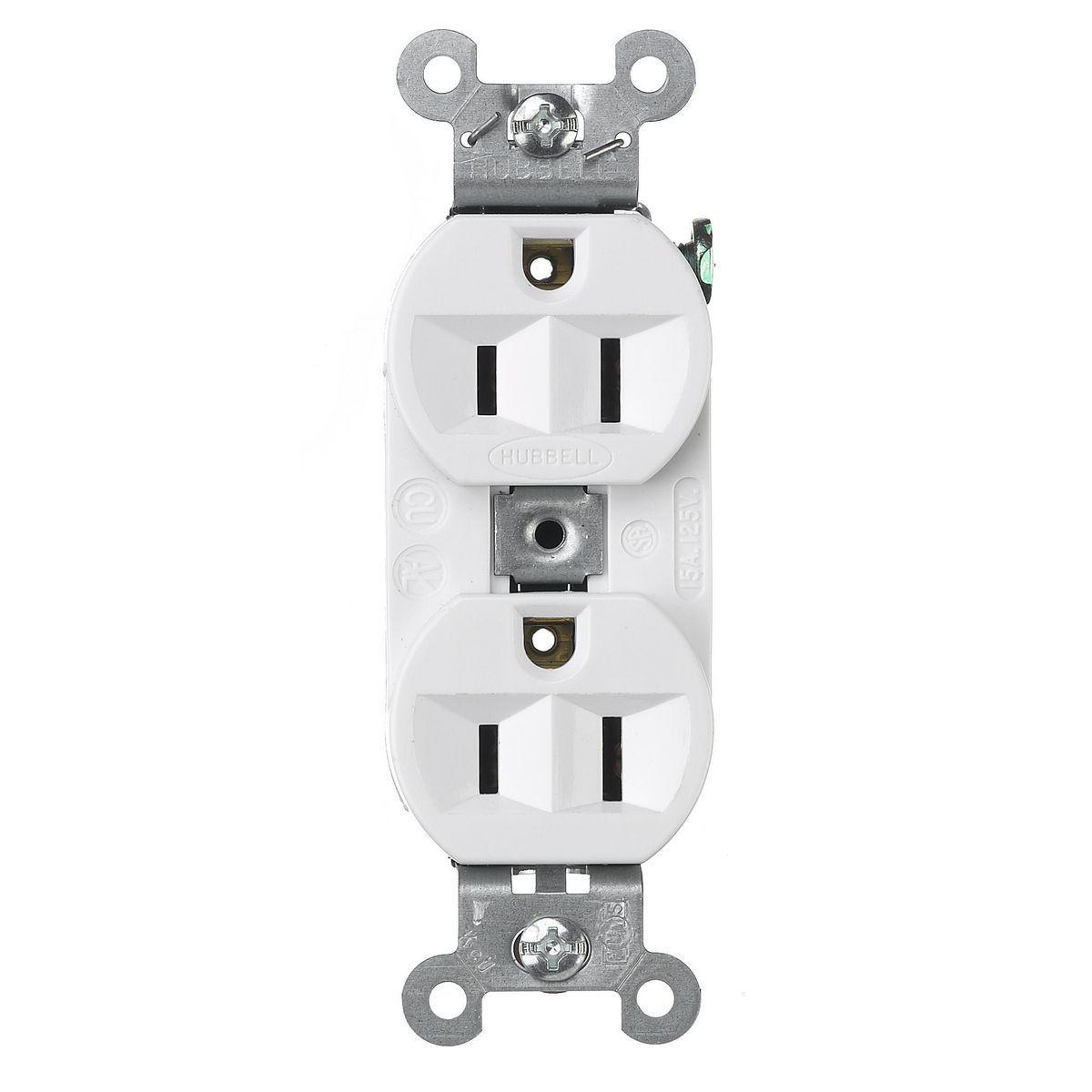

Wiring Device-Kellems Hubbell-PRO™ 5252AW 1-Phase Duplex Heavy Duty Self-Grounding Standard Traditional Screw Mount Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
- Manufacturer Name: Hubbell
- MPN: 5252AW
- Brand Name: Wiring Device-Kellems
- UPC: 783585109725
- FEPN: 5252AW HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Hubbell-PRO™ Straight Blade Receptacle, 1-Phase Duplex Heavy Duty Self-Grounding Standard Traditional Screw Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Side Wired Terminal, Thermoplastic/Composite, White, 1.406 in W x 1.094 in D x 3.281 in H
| Dimensions | : | 1.406 in W x 1.094 in D x 3.281 in H |
| Grade | : | Commercial/Industrial |
| Horsepower | : | 1/2 hp |
| Material | : | Thermoplastic/Composite |
| NEMA Rating | : | 5-15R |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Side Wired |
| Type | : | 1-Phase Duplex Heavy Duty Self-Grounding Standard Traditional Screw Mount |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 15 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | White |
- Withstands 2000 VAC dielectric voltage
- Certified for current interrupting at full rated current
- Slender compact design
- Smooth face
- Triple wipe contacts
- 14 to 10 AWG copper stranded or solid conductor only terminal accommodation
- Terminal wire leads identified in accordance with UL 498
- Nylon top and base, PBT base, brass contacts, galvanized steel mounting strap, stainless steel automatic self-grounding staple, zinc plated steel mounting screws
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- Traditional face shape
Line Drawing
