Wiring Device-Kellems HBL2313SW

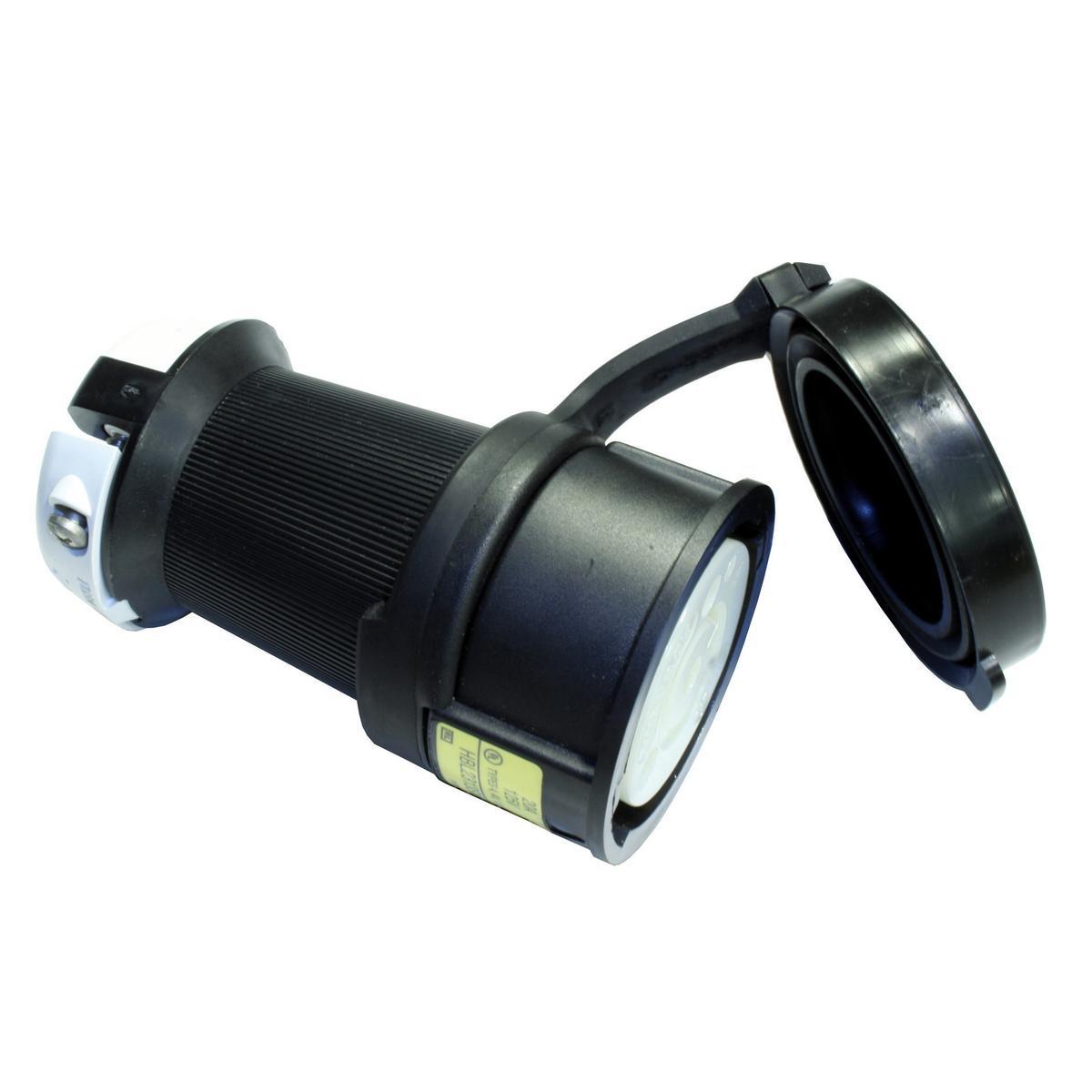

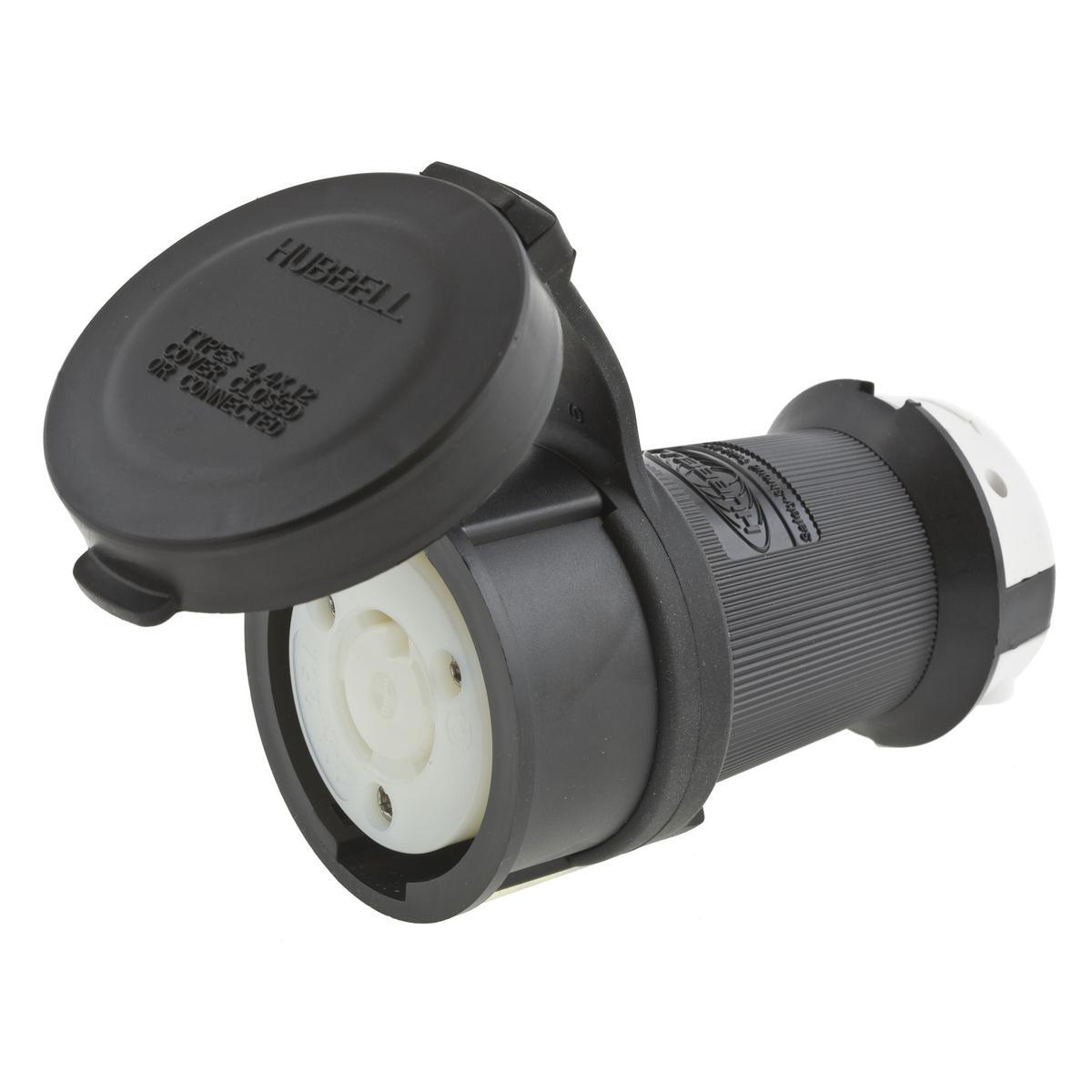

Wiring Device-Kellems HBL2313SW HBL® Grounding Heavy Duty Shrouded Watertight Cord Mount Locking Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Black/White
- Manufacturer Name: Hubbell
- MPN: HBL2313SW
- Brand Name: Wiring Device-Kellems
- UPC: 783585231044
- FEPN: HBL2313SW HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems, HBL2313SW, Locking Connector, Grounding Heavy Duty Shrouded Watertight Cord Mount, Series: HBL®, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, L5-20R NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.57 x 2.57 x 4.4 in Dimensions
| Cord Diameter | : | 0.36 to 0.93 in |
| Dimensions | : | 2.57 x 2.57 x 4.4 in |
| Enclosure | : | NEMA 4/4X/12/IP66 |
| Grade | : | Industrial |
| Horsepower | : | 1 hp |
| Material | : | Composite |
| NEMA Rating | : | L5-20R |
| Series | : | HBL® |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Pressure Screw |
| Type | : | Grounding Heavy Duty Shrouded Watertight Cord Mount |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 20 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Black/White |
- Superior cord grip design protects terminations from excess strain
