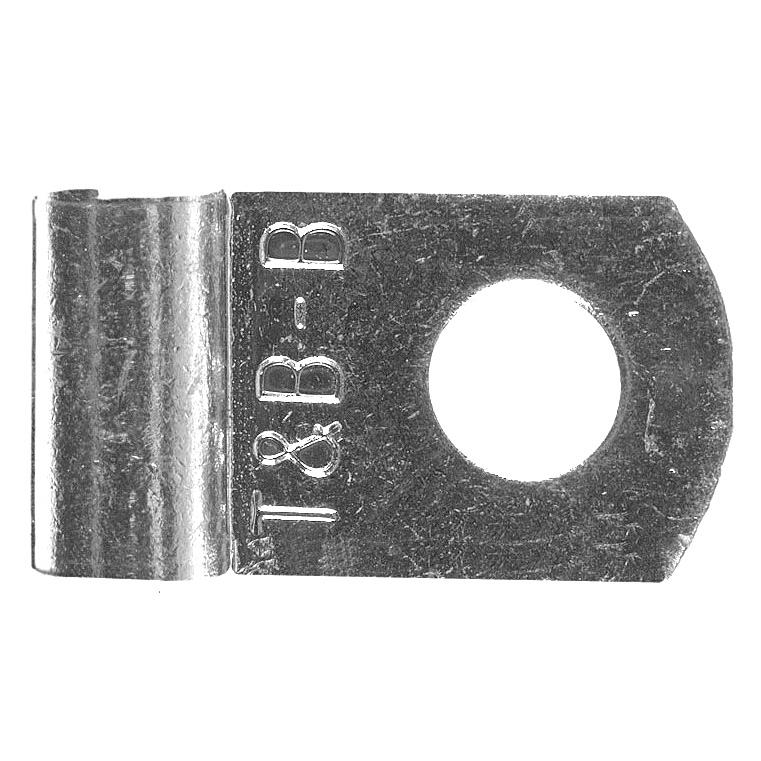

Sta-Kon® Flag Terminal, 12 to 10 AWG Conductor, Specifications: #10 Bolt Hole, Copper, Metallic, TiN Plated, 0.66 in L x 0.31 in W Dimensions, Non-Insulated
| Dimensions | : | 0.66 in L x 0.31 in W |
| Finish | : | TiN Plated |
| Specifications | : | #10 Bolt Hole |
| Conductor Size | : | 12 to 10 AWG |
| Material | : | Copper |
| Color | : | Metallic |
| Insulated | : | Non-Insulated |
- Flag terminals allow a 90 deg connection to the terminal block without bending the wire
- ERG4004 application tools
Line Drawing
