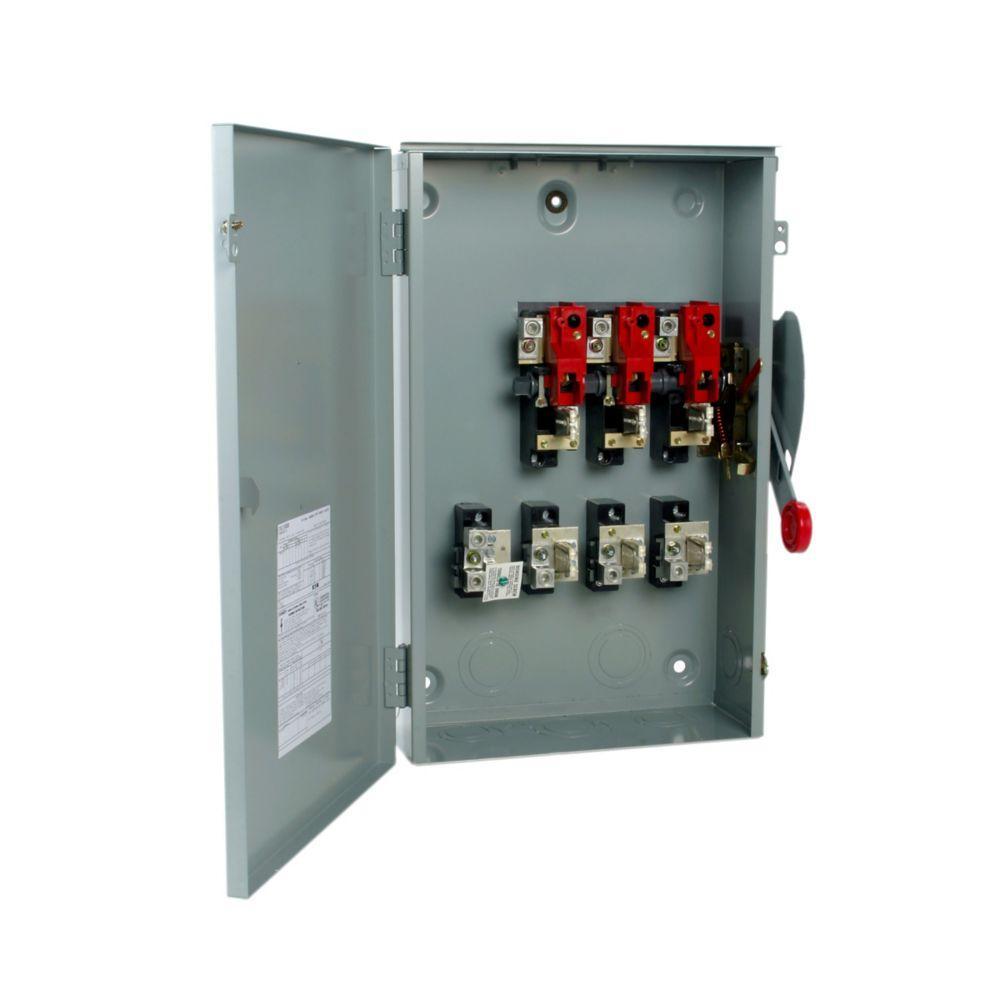

EATON DG324NRK
EATON DG324NRK DG Series Cartridge Fusible General Duty Safety Switch, 240 VAC, 200 A, 15 hp, 25 to 60 hp, TPST Contact, 3 Poles
- Manufacturer Name: Eaton
- MPN: DG324NRK
- Brand Name: EATON
- UPC: 782113213545
- FEPN: DG324NRK EC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
General duty safety switches are used in residential and commercial applications. They are suitable for light duty motor circuits and service entrance applications. Fusible (plug or cartridge) and non-fusible switches are available.
EATON Safety Switch, Cartridge Fusible General Duty, Series: DG Series, 240 VAC, 200 A, 15 hp, 25 to 60 hp, 1/3 ph, 3 Pole, 4 Wires, TPST Contact Form, NEMA 3R Enclosure, Surface Mounting, 10 in L x 15.52 in W x 25.23 in H Dimensions, Steel, Galvanized/Painted
| Dimensions | : | 10 in L x 15.52 in W x 25.23 in H |
| Enclosure Type | : | NEMA 3R |
| Finish | : | Galvanized/Painted |
| Material | : | Steel |
| Mounting Type | : | Surface |
| Number of Wires | : | 4 |
| Phase | : | 1/3 |
| Series | : | DG Series |
| Type | : | Cartridge Fusible General Duty |
| Voltage Rating | : | 240 VAC |
| Amperage Rating | : | 200 A |
| Horsepower | : | 15 hp, 25 to 60 hp |
| Contact Form | : | TPST |
| Number of Poles | : | 3 |
- Ample wire bending space provides for easier installation
- Visible double-break quick make, Quick-break rotary blade mechanism
- Side opening door on all enclosures
- Mechanically interlocked cover to prevent easy access when the switch is in the ON position
- With class R fuses, switches may be used on systems capable of delivering 100000 A rms symmetrical
- Clearly visible and accessible neutral where applicable
- Visible ON/OFF indications
- Tangential knockouts on 30 to 60 A designs
- Ample wiring space
- Double padlocking capability on 30 to 100 A
- Triple padlocking capability on 200 to 600 A
- Additional door locking capability
- Tri-lingual nameplates
- Design for series K general duty 200 A and higher
