Color-Keyed® 54523-TB

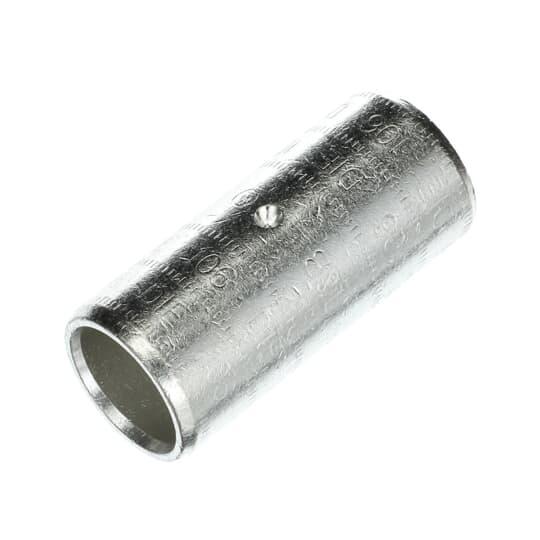

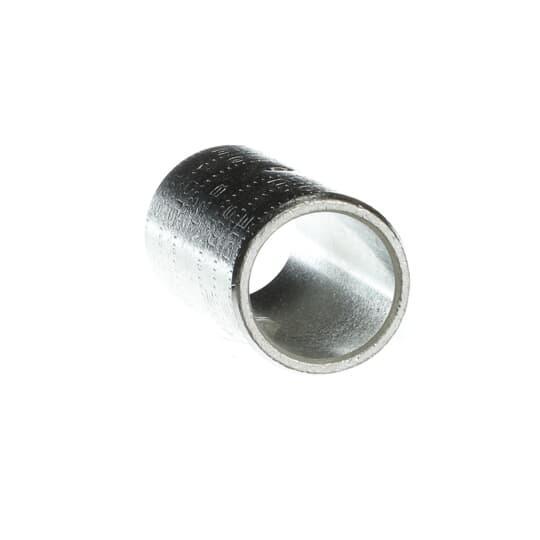

Color-Keyed® 54523-TB 2-Way Standard Barrel Splice Connector, 750 kcmil Copper Conductor, Die Code: 106, 3 in L, Copper
- Manufacturer Name: ABB
- MPN: 54523-TB
- Brand Name: Color-Keyed®
- UPC: 786210545233
- FEPN: 54523-TB TB
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®.
Color-Keyed® Splice Connector, 2-Way Standard Barrel, Copper Conductor, 750 kcmil Conductor, Die Code: 106, 600 V AC, 1.3 in OD, 3 in Length, Specifications: Tin Plated, Copper, Black Color Code
| Color Code | : | Black |
| Outside Diameter | : | 1.3 in |
| Specifications | : | Tin Plated |
| Type | : | 2-Way Standard Barrel |
| Voltage Rating | : | 600 V AC |
| Conductor Size | : | 750 kcmil |
| Conductor Type | : | Copper |
| Die Code | : | 106 |
| Length | : | 3 in |
| Material | : | Copper |
- 2-way connectors provide high pullout values, are easy to insulate and provide a low resistance connection of high quality and low installed cost
- Color coded for correct matching of installing die and connector
- 35 kV max voltage
