Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.

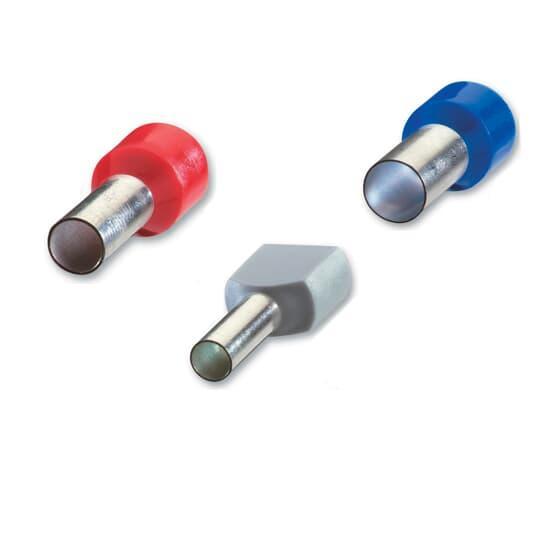

Sta-Kon® Wire Ferrule, Insulated, Series: F Series, Stranded Copper Conductor, 20 AWG Conductor, 0.531 in Length, 0.098 in Dia Barrel, 300 V AC, Specifications: 0.043 in ID x 0.315 in L x 0.006 in THK Pin, 0.098 in Dia Base, 105 deg C, Copper, Tin Coated, White
| Barrel Size | : | 0.098 in Dia |
| Finish | : | Tin Coated |
| Series | : | F Series |
| Specifications | : | 0.043 in ID x 0.315 in L x 0.006 in THK Pin, 0.098 in Dia Base |
| Temperature Rating | : | 105 deg C |
| Type | : | Insulated |
| Voltage Rating | : | 300 V AC |
| Conductor Size | : | 20 AWG |
| Conductor Type | : | Stranded Copper |
| Length | : | 0.531 in |
| Material | : | Copper |
| Color | : | White |
- Polypropylene insulated
- Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks
- Made of high conductivity copper
- Fraying and breaking of wire strands is prevented and the possibility of an unreliable connection is minimized
- Insulated ferrules prevent conductor breakage due to bending, wire stress or vibration, while facilitating wire insertions into the terminal block clamp
- Ferrules are the preferred alternative to twisting wire stands or tinning the wire end before terminating into a terminal block
- Ferrules are thin-walled copper tubes, which are mechanically crimped onto the ends of stranded wires
- Meets emerging global standards, requiring wire to metric-style terminal block installations to be terminated with a "pin" style terminal
- T1, T3 and ERG4 recommended tools
