Wiring Device-Kellems S1SFB

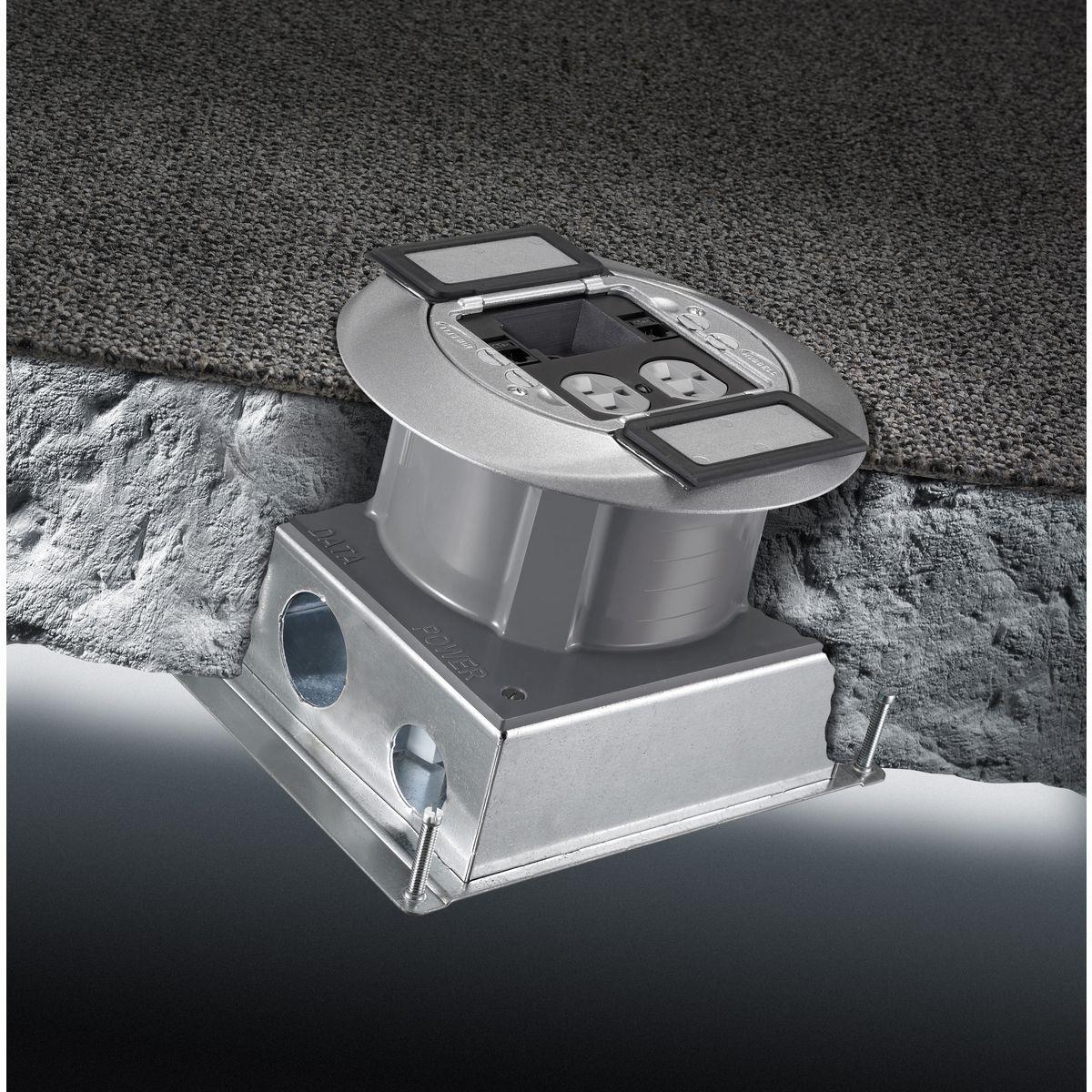

Wiring Device-Kellems S1SFB Fully Adjustable Multi-Service Concrete Floor Box, Composite, 175.7 cu-in Capacity, 2 Gangs, (2) Knockouts, 7.5 in L x 9.54 in W x 3 in H
- Manufacturer Name: Hubbell
- MPN: S1SFB
- Brand Name: Wiring Device-Kellems
- UPC: 783585371658
- FEPN: S1SFB HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Hubbell® SystemOne™ is an innovative system that provides consumers with the flexibility to create personal solutions for the most demanding multi-service applications for both flush in-floor boxes and fire-rated poke-through. Hubbell® SystemOne™ features a unique universal cover assembly and a wide variety of application sub-plates that install on both Hubbell® flush floor boxes and fire-rated poke-through. Whatever the application, Hubbell® SystemOne™ delivers a consistent, aesthetic and functional solution for applications in-the-floor or through-the-floor for power, voice, data and A/V requirements.
Wiring Device-Kellems, S1SFB, Concrete Floor Box, Fully Adjustable Multi-Service, 2 Gangs, 2 Knockouts, 3/4 in, 1 in, 1-1/4 in Knockout, 5 in Diameter, Round Shape, Surface Mounting, 175.7 cu-in Capacity, Composite, Gray, 7.5 in L x 9.54 in W x 3 in H Dimensions
| Color | : | Gray |
| Diameter | : | 5 in |
| Knockout Size | : | 3/4 in, 1 in, 1-1/4 in |
| Mounting Type | : | Surface |
| Shape | : | Round |
| Type | : | Fully Adjustable Multi-Service |
| Material | : | Composite |
| Capacity | : | 175.7 cu-in |
| Number of Gangs | : | 2 |
| Number of Knockouts | : | 2 |
| Dimensions | : | 7.5 in L x 9.54 in W x 3 in H |
- Economical and light weight for above grade applications
- Subplates accommodate various power and data configurations
- The stamped steel floor box construction provides an economic solution for above grade application
- Easily installed, aesthetic and configurable floor box solution for open floor plans that require both power and data service
- The Hubbell® SystemOne® universal cover mounts directly to the floor box riser, eliminating the need for an additional adapter collar
- Fully adjustable leveling option
- (1) 3/4 in and 1 in concentric, (1) 3/4 in and 1 in and 1-1/4 in concentric knockouts
